Product Description

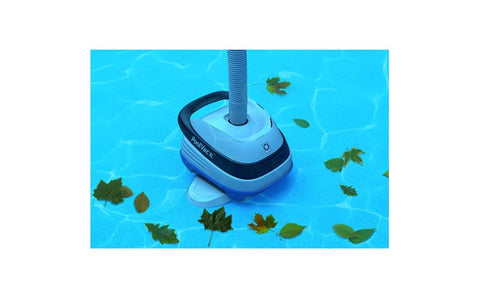

Keep your in-ground vinyl pool clean with less manual vacuuming using the Hayward PoolVac XL Automatic Suction Cleaner. Designed specifically for vinyl-lined pools up to 20 feet by 40 feet, this cleaner connects directly to the pool’s skimmer or dedicated suction line and uses the existing filtration system for power.
Hayward’s exclusive AquaPilot® programmed steering system guides the PoolVac XL through a predetermined series of turns for systematic coverage of the pool floor, coves, and compatible walls. Its turbine-drive system provides smooth, quiet movement without pulsating hoses or an energy-consuming booster pump.
A wide vacuum inlet, enhanced wings, and flexible skirt help maintain consistent suction while collecting dirt and debris. Debris travels through the cleaner hose and is captured by the pool’s existing filtration system, eliminating the need to empty a separate cleaner bag.
The included 40-foot hose set provides coverage for a wide range of residential in-ground vinyl pools. Installation is straightforward and typically requires no tools.
Key Features
- Designed specifically for in-ground vinyl-lined swimming pools
- Recommended for pools up to 20 feet by 40 feet
- Automatic suction-side cleaning system
- Exclusive AquaPilot programmed steering
- Systematic floor, cove, and compatible wall coverage
- Turbine-drive system for smooth, quiet operation
- Wide vacuum inlet for effective debris pickup
- Enhanced wings and skirt help maintain consistent suction
- Connects to the skimmer or dedicated suction port
- Powered by the pool’s existing filtration system
- Does not require electricity or a booster pump
- No separate debris bag to empty
- Includes a 40-foot sectional hose set
- Installation can typically be completed in less than 10 minutes
- Genuine Hayward pool-cleaning equipment
Why Choose the Hayward PoolVac XL?
Systematic Pool Coverage
AquaPilot steering moves the cleaner through a programmed sequence of turns instead of relying entirely on random movement. This helps the cleaner travel throughout the pool and reduces missed areas.
Quiet Turbine Operation
The internal turbine system operates without pulsating hoses or loud moving components, helping maintain a more peaceful poolside environment.
Uses Existing Pool Equipment
The PoolVac XL operates from suction supplied by the pool pump and filtration system. No electrical connection, power cord, or separate booster pump is required.
Simple Debris Management
Collected debris is directed into the pool’s existing filtration system. There is no onboard filter canister or debris bag that must be emptied after every cleaning cycle.
Designed for Vinyl Surfaces
This ADV model uses components intended for vinyl-lined pools. Using the correct surface-specific cleaner helps provide proper movement while reducing unnecessary wear.
Product Benefits
- Reduces time spent manually vacuuming the pool
- Helps collect dirt, sediment, leaves, and other common pool debris
- Supports consistent cleaning of the pool floor and coves
- Requires minimal routine maintenance
- Operates automatically with the pool circulation system
- Helps reduce hose tangling through programmed steering
- Easy to remove when the pool is in use
- Replacement wear parts are available separately
- Proven Hayward turbine-cleaner design
Specifications
| Specification | Details |
|---|---|
| Brand | Hayward |
| Product Line | PoolVac XL |
| Product Name | Automatic Suction Cleaner for Vinyl Pools |
| SKU | W32025ADV |
| Manufacturer Part Number | W32025ADV |
| Barcode / UPC | 610377390231 |
| GTIN | 00610377390231 |
| Cleaner Type | Automatic suction-side pool cleaner |
| Pool Type | In-ground swimming pool |
| Recommended Pool Surface | Vinyl liner |
| Maximum Recommended Pool Size | Up to 20 ft. × 40 ft. |
| Navigation System | AquaPilot programmed steering |
| Drive System | Turbine drive |
| Traction System | Surface-specific shoes |
| Cleaning Coverage | Floor, coves, and compatible walls |
| Power Source | Existing pool pump and filtration system |
| Booster Pump Required | No |
| Electrical Connection Required | No |
| Connection Location | Skimmer or dedicated suction port |
| Hose Length | 40 ft. |
| Hose Configuration | Sectional connector and leader hoses |
| Debris Collection | Existing pool filtration system |
| Debris Bag | Not required |
| Color | Multi-color |
| Shipping Dimensions | Approximately 40.4 × 13.7 × 11.9 in. |
| Shipping Weight | Approximately 18 lb. |
| Parts Warranty | 1-year limited warranty |
| Labor Warranty | None |
| Condition | New |
Recommended Applications
The Hayward PoolVac XL W32025ADV is recommended for:
- Residential in-ground vinyl-lined pools
- Pools measuring up to 20 feet by 40 feet
- Pools with an operating skimmer or dedicated suction line
- Pool owners seeking automatic cleaning without a booster pump
- Existing systems with sufficient pump suction and proper filtration
- Routine collection of dirt, sediment, leaves, and other common debris
Compatibility Information
This model is designed specifically for vinyl-lined in-ground pools.
Do not select this cleaner for concrete, gunite, plaster, pebble, or other abrasive pool surfaces based only on appearance. Hayward offers a different PoolVac XL configuration for concrete and gunite pools.
Cleaner performance depends on:
- Pool shape
- Wall angle and transition
- Surface condition
- Hose length
- Return-jet direction
- Pump flow
- Filter condition
- Proper suction adjustment
Wall-climbing performance is not guaranteed in every pool. Certain pool shapes, wall transitions, surface conditions, steps, benches, or circulation patterns may limit wall coverage.
Package Includes
- Hayward PoolVac XL automatic suction cleaner
- Nine connector hose sections
- One leader hose
- Total hose length of approximately 40 feet
- Regulator valve
- Skimmer cone adapter
- Flow gauge
- Installation and operating instructions
A leaf canister, dedicated suction safety fitting, additional hose sections, and replacement parts are sold separately unless specifically stated otherwise.
Installation Overview
Before installing the cleaner:
- Remove large objects and excessive debris from the pool.
- Confirm that the pool water is at the recommended level.
- Clean the pump strainer basket and skimmer basket.
- Clean or backwash the pool filter.
- Confirm that the water chemistry is properly balanced.
- Lay the hose sections straight in the sun to reduce coiling.
- Connect enough hose to reach the farthest point of the pool.
- Connect the cleaner to the skimmer or dedicated suction port.
- Use the supplied gauge and regulator to adjust suction.
- Redirect return fittings if water flow interferes with cleaner movement.
Proper flow adjustment is essential. Too little suction may prevent the cleaner from moving or collecting debris, while excessive suction may cause poor movement or unnecessary component wear.
Operation and Maintenance
For dependable performance:
- Empty the skimmer and pump baskets regularly
- Clean or backwash the filter as needed
- Check the cleaner throat for obstructions
- Inspect the wings, skirt, shoes, pods, and turbine components
- Confirm that all hose connections are secure
- Replace worn hose sections or traction components
- Keep return-water flow from pushing the hose or cleaner
- Store hoses straight rather than coiled
- Store the cleaner in a shaded, protected area
- Remove the cleaner before adding pool chemicals
- Remove the cleaner before backwashing the filter
- Remove the cleaner and hose before swimming
An optional inline leaf canister may be helpful in pools that regularly collect leaves or larger debris. The canister captures debris before it reaches the skimmer or pump basket.
Frequently Asked Questions
Is this cleaner designed for vinyl pools?
Yes. The W32025ADV is the PoolVac XL model designed for in-ground vinyl-lined swimming pools.
What size pool can it clean?
It is recommended for pools up to approximately 20 feet by 40 feet.
Does it require a booster pump?
No. The cleaner is powered by suction from the pool’s existing pump and filtration system.
Does it need electricity?
No. It does not require a power cord, control box, battery, or separate electrical connection.
Where does the debris go?
Debris travels through the cleaner hose and is captured by the pool’s existing skimmer, pump basket, and filtration system.
Does it include a debris bag?
No. A separate debris bag is not required.
How much hose is included?
The cleaner includes approximately 40 feet of sectional hose, consisting of connector sections and a leader hose.
Can it connect to a dedicated suction line?
Yes. It can connect to a compatible dedicated suction port or through the pool skimmer.
Does it clean pool walls?
It is designed to cover the floor, coves, and compatible walls. Wall-climbing performance varies according to the pool shape, wall angle, surface condition, suction level, and circulation pattern.
Can it be used in a concrete or gunite pool?
This model is not recommended for concrete or gunite surfaces. Use the correct surface-specific Hayward cleaner to prevent premature wear and obtain proper performance.
Is a leaf canister included?
No. Compatible inline leaf canisters are available separately.
How long does installation take?
The cleaner can typically be connected in less than 10 minutes after the pool, filter, hose, and suction settings have been properly prepared.
Can swimmers remain in the pool while the cleaner is operating?
No. Remove the cleaner and hose before anyone enters the pool.
How should the hoses be stored?
Disconnect and store the hose sections straight in a shaded area. Do not store the hoses tightly coiled.
Important Safety Information
Suction fittings and pool circulation systems can create strong vacuum forces. Always use the cleaner according to the manufacturer’s instructions and applicable pool-safety requirements.
Do not allow swimmers in the pool while the cleaner and hose are installed. Keep children and pets away from the cleaner during service. Turn off the pool pump before connecting, disconnecting, inspecting, or servicing the cleaner.
