Jandy Pool Heaters

Jandy heaters are a top pick for pool pros because they are compact, quiet and easy to service. Pool Supply Depot carries the current JXiQ line with VersaFlo, the proven JXi, ASME commercial models and the VersaTemp heat/cool pump. Natural gas and propane models run from 200,000 to 400,000 BTU. Need help choosing? Contact our Henderson, NV store or read the guide below.

Model	What it is	Sizes we carry	Best for

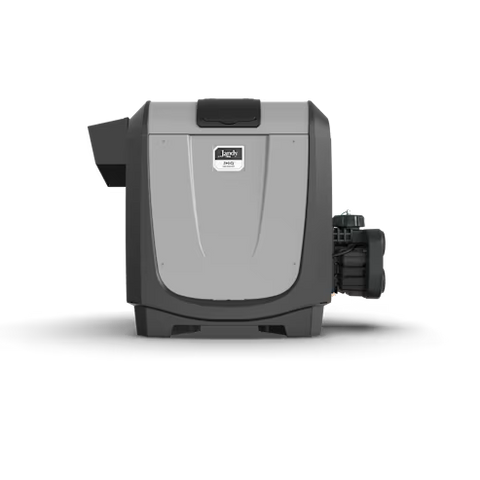

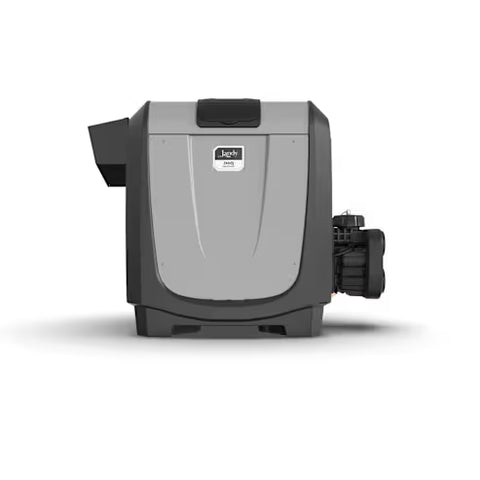

JXiQ with VersaFlo, copper (JXIQ200NK, 260NK, 400NK, 260PK, 400PK)	Jandy's newest gas heater, with the VersaFlo built-in bypass	200K, 260K, 400K; NG and LP	New installs and most residential pools
JXiQ, poly header (JXIQ400NNK)	JXiQ with polymer header	399K; NG	Pools where you want a non-metal header

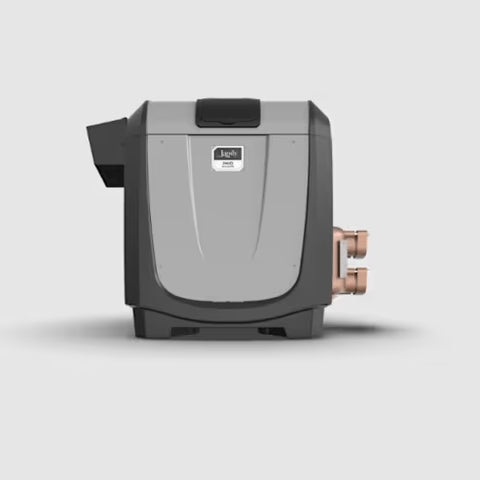

JXiQ ASME (JXIQ400NC, JXIQ400NS cupronickel)	ASME-certified JXiQ	400K; NG	Commercial pools and code-required jobs

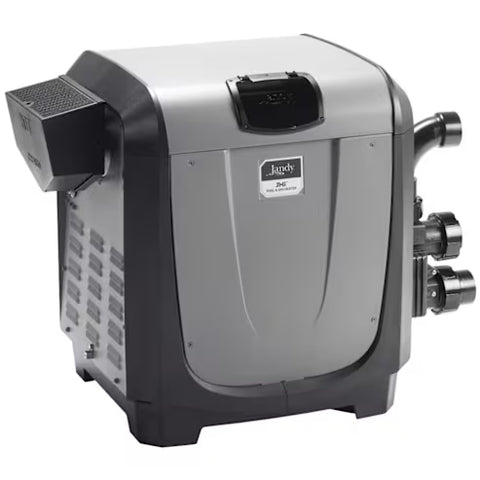

JXi (JXI400N copper, JXI400NN cupronickel, JXI400P)	The proven low-NOx JXi	399K; NG and LP	Like-for-like JXi replacements
VersaTemp heat pump (JRT3000R)	Electric heat pump that heats and cools	130K BTU	Season extension and chilling summer water

How to Choose a Jandy Heater

JXiQ or JXi. JXiQ is the current model and the right choice for new installs. Pick JXi when you are swapping out an existing JXi and want the same fit.
Fuel. N = natural gas, P = propane. Order the one that matches your gas supply.
Heat exchanger. Copper for normal residential use; cupronickel (NN, NS) for salt pools, spas and commercial water.
Size. See the sizing guide below. Most Las Vegas Valley pools with a spa land on 260K or 400K.
Heat pump instead? VersaTemp runs on electricity, costs less per hour of heating, and can cool the pool in summer.

Sizing Guide: How Big a Heater Do I Need?

A gas heater raises your pool roughly this many degrees per hour: (BTU × efficiency) ÷ (gallons × 8.34). Example: a 400,000 BTU heater at 84% efficiency on a 20,000-gallon pool adds about 2°F per hour.

Pool size	Gas heater	Heat pump
Spa only (under 1,000 gal)	125K–200K BTU	Not ideal for spas
Up to 15,000 gal	200K–260K BTU	100K–120K BTU
15,000–25,000 gal	300K–400K BTU	120K–140K BTU
Over 25,000 gal or commercial	400K BTU, ASME, or two units	Multiple units

Pool and spa combo? Size for the pool, and go 400K if you want the spa hot fast.

Jandy Heater FAQ

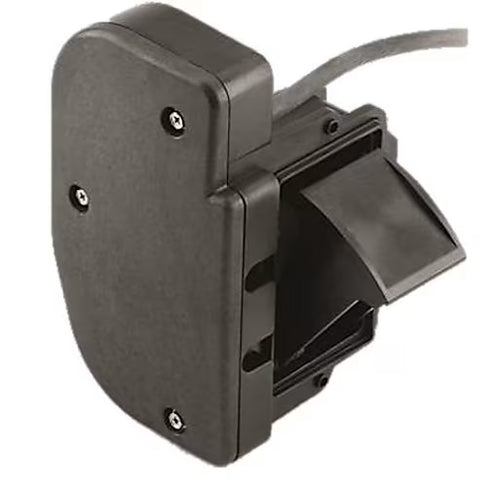

What does VersaFlo do?

It is Jandy's built-in bypass that manages water flow through the heater, so it works with a wider range of pump speeds and plumbing without an external bypass.

Will a JXiQ fit where my old JXi was?

Plumbing and venting are close, but measure the pad and gas connection before ordering. Send us your existing model and pad photos and we'll check the fit.

Does it work with my automation?

Jandy heaters connect to Jandy iAquaLink and AquaLink systems and to most third-party systems through the standard remote connection. See Jandy Pool Automation.

Copper or cupronickel?

Cupronickel resists corrosion better and is the safer choice with salt chlorinators or spas.

Why Buy Your Jandy Heater from Pool Supply Depot

Local stock in Henderson, NV. Pick up at our store if you're in the Las Vegas Valley.
Nationwide freight shipping. Heaters ship by freight. Free shipping on orders over $50 does not cover freight items.
Contractor pro pricing. Pool pros: log in to your PSD account to see your pricing.
Real help sizing. Our team will match the right model, fuel and size to your pool.
In-store-only models. Some heaters show "available in store only" because of manufacturer pricing rules. Contact us for a quote.

Shop all brands in Pool Heaters & Heat Pumps.
