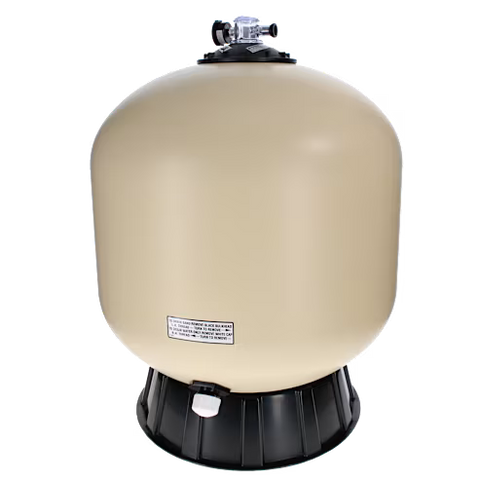

The Pentair Triton II TR100 Side Mount Sand Filter EC-140210 is a premium in-ground pool sand filter built for dependable water clarity, long service life, and low-maintenance operation. With a 30-inch fiberglass-reinforced tank, 4.91 sq. ft. filtration area, and 600 lb sand capacity, the TR100 is ideal for large residential pools and higher-demand pool systems.
The Triton II series has long been recognized as an industry-standard sand filter line. Its one-piece fiberglass tank is made using Pentair’s GlasLok™ process, creating a UV-resistant and corrosion-resistant exterior built to handle outdoor equipment pad conditions. The internal flow design helps ensure water is distributed evenly through the sand bed for clear, consistent filtration and longer runs between backwashing. Pentair also lists the Triton II series with threaded bulkhead connectors, a heavy-duty closure with built-in pressure relief, and a design focused on easier inspection and service.
Ideal For
- Large in-ground residential pools
- Pool owners upgrading from an older sand filter
- Pool systems requiring a 30-inch side-mount filter
- High-flow filtration setups
- Equipment pads using a separate side-mount valve
- Pools where easy maintenance and long filter cycles are important
- Residential pool owners who want durable, low-maintenance sand filtration
Key Features
- 4.91 Sq. Ft. Filtration Area — Provides large-capacity filtration for bigger in-ground pool systems.
- 30-Inch Fiberglass-Reinforced Tank — One-piece tank construction provides strength, durability, and long-term corrosion resistance.
- Side-Mount Configuration — Designed for use with a compatible side-mount multiport or slide valve.
- 600 lb Sand Capacity — Requires 600 lb of pool filter sand, sold separately.
- GlasLok™ Tank Construction — Pentair’s fiberglass-reinforced tank process helps provide UV resistance and long service life.

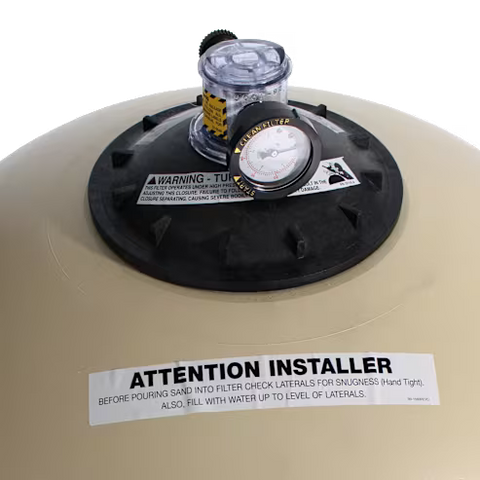

- Heavy-Duty Closure — Provides easy access for inspection and includes pressure gauge and air relief features on common TR100 configurations.
- Swing-Away Diffuser — Allows quick access to the sand bed and internal components for service.
- Threaded Internal Components — Designed to make servicing and part replacement easier.
- Threaded Bulkhead Connectors — Help simplify installation and service.
- Combination Sand and Water Drain — Makes draining, servicing, and winterizing faster.
- 50 PSI Maximum Operating Pressure — Built for dependable operation in demanding pool filtration systems.
- Valve Sold Separately — Allows the installer to select the correct side-mount valve for the plumbing setup.
Benefits
The Pentair Triton II TR100 EC-140210 is built for pool owners who want reliable filtration without constant maintenance. Its large sand bed and proven internal flow design help capture dirt and debris while keeping water moving efficiently through the filter.
The fiberglass-reinforced tank offers long-lasting durability, while the side-mount design gives installers flexibility when matching the filter to an existing plumbing layout. Service-friendly features like the swing-away diffuser, threaded internal components, and combination drain make routine maintenance easier for pool professionals and homeowners.
For larger in-ground pools, the TR100 provides the capacity and dependability needed to maintain clear, clean water season after season.
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Product Line | Triton II |
| Model | TR100 |
| SKU | EC-140210 |
| UPC / Barcode | 788379500405 |
| Filter Type | Sand Filter |
| Mount Type | Side Mount |
| Tank Diameter | 30 in. |
| Filtration Area | 4.91 sq. ft. |
| Sand Required | 600 lb |
| Valve Included | No |
| Flow Rate | 74 GPM commercial rating / up to 98 GPM residential listing, depending on application |
| Maximum Operating Pressure | 50 PSI |
| Tank Material | Fiberglass Reinforced |
| Tank Construction | One-piece GlasLok™ fiberglass-reinforced tank |
| Color | Almond |
| Application | In-ground pools |
| Vertical Clearance | Approximately 41.75 in. |
| Backwash Valve Requirement | Compatible side-mount valve required, sold separately |
Compatible Valves
This filter is sold without a valve. A compatible side-mount multiport or slide valve must be purchased separately based on the plumbing size and installation requirements.
Common compatible Pentair valve options include:
| Valve Model | Description |
|---|---|
| 261173 | 1.5 in. side-mount multiport valve |
| 261049 | Side-mount multiport valve |
| 261050 | 2 in. Hi-Flow side-mount multiport valve |
| 261055 | 2 in. side-mount multiport valve |
| 263064 | 2 in. side-mount slide valve |
Leslie’s lists compatible valves for EC-140210 as 261173, 261049, 261050, 261055, and 263064.
What’s Included
- Pentair Triton II TR100 side-mount sand filter tank
- Internal lateral assembly
- Filter tank base
- Lid closure
- Pressure gauge
- Air relief valve
- Manufacturer documentation
Not Included:
Filter sand, side-mount valve, plumbing fittings, unions, installation labor, and optional accessories.
Customer-Facing Q&A
Q: Does the Pentair Triton II TR100 EC-140210 include a valve?
A: No. This model is sold without a valve. A compatible side-mount multiport or slide valve is required and sold separately.
Q: How much sand does the TR100 require?
A: The TR100 requires 600 lb of pool filter sand, which is sold separately.
Q: What size pool is this filter for?
A: The TR100 is best suited for large in-ground residential pools and pool systems that require a 30-inch side-mount sand filter with 4.91 sq. ft. of filtration area.
Q: What is the flow rate of the Pentair TR100?
A: The TR100 is commonly listed at 74 GPM for commercial-style design ratings, with some residential listings showing up to 98 GPM depending on system application and turnover calculations.
Q: Is the tank fiberglass?
A: Yes. The Triton II TR100 uses a one-piece fiberglass-reinforced tank with a UV-resistant surface finish.
Q: Can this filter be used with an existing side-mount valve?
A: Yes, as long as the existing valve is compatible with the TR100 and the plumbing configuration. Always confirm compatibility before installation.
Q: Is this filter for above-ground or in-ground pools?
A: This filter is designed for in-ground pool systems.
Q: Is professional installation recommended?
A: Yes. Professional installation is recommended to ensure proper plumbing, backwash valve selection, startup, and warranty support.
