Product Overview

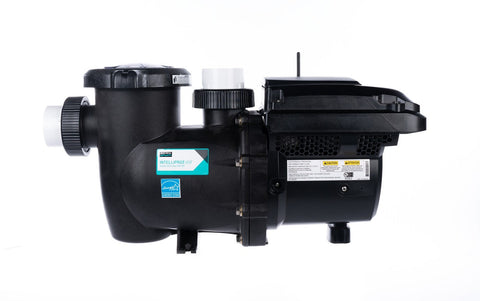

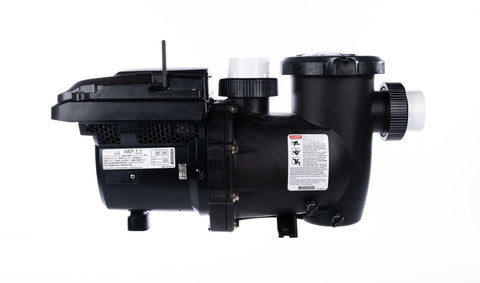

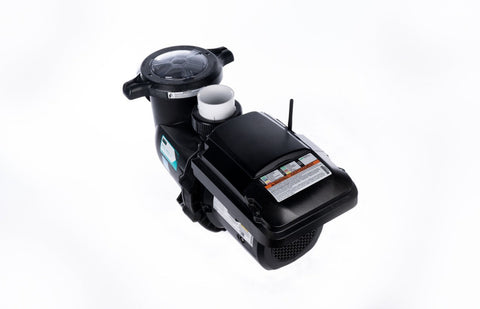

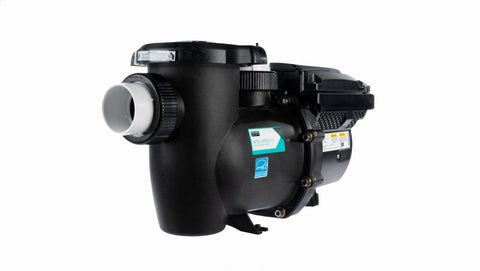

The Pentair IntelliPro3 VSF 3.0HP with Touchscreen | 013077 is a premium variable speed and flow pool pump designed for efficient, intelligent, and dependable residential pool circulation. Built on the Sta-Rite IntelliPro platform, this pump uses sensorless flow technology to help maintain consistent water flow as pool conditions change.
This model includes the touchscreen HMI controller, giving users convenient local control directly at the equipment pad. With 3.0 total horsepower, 208–230V operation, app connectivity, quiet performance, and advanced variable speed and flow control, the IntelliPro3 VSF 013077 is a strong upgrade for high-performance residential pool systems.
Ideal For
Residential in-ground swimming pools
Pool owners wanting touchscreen control at the pump
Systems requiring variable speed and variable flow operation
Replacing older Sta-Rite IntelliPro or compatible pool pumps
Filtration, heating, cleaners, spa spillover, and water feature applications
Customers comparing IntelliPro3 models 013075, 013076, 013077, and 013078
Key Features
3.0 HP variable speed and flow pool pump
Includes touchscreen HMI controller
Sensorless flow control helps maintain consistent system performance
Built-in smart connectivity for compatible Pentair app control
Energy-efficient performance with 7.1 WEF rating
Designed for 208–230V electrical systems
Quiet operation for everyday pool circulation
Full load amp rating of 12.4–11.2A
Multiple plumbing configuration options
Compatible with select Pentair automation systems
Built for residential in-ground pool applications
Benefits
The IntelliPro3 VSF 013077 gives pool owners smart control, efficient circulation, and strong 3HP performance in a Sta-Rite pump platform. Its variable speed and flow technology allows the pump to adjust operation based on the pool system’s needs, helping reduce energy waste while maintaining the flow required for filtration, heating, cleaning, and water features.
The included touchscreen makes programming and operation easier at the equipment pad, while app connectivity provides additional control options. This model is ideal for customers who want the 3HP IntelliPro3 VSF platform with direct touchscreen control but do not need the I/O relay board configuration.
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair / Sta-Rite |
| Product Line | IntelliPro3 VSF |
| Product Type | Pool Pump |
| Pump Type | Variable Speed & Flow |
| SKU / Part Number | 013077 |
| Barcode / UPC | 788379888381 |
| Total Horsepower | 3.0 HP / 3 THP |
| Weighted Energy Factor | 7.1 WEF |
| Voltage | 208–230V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Full Load Amps | 12.4–11.2A |
| Port Size | 2" x 2", 2.5" x 2.5", or 3" x 3" |
| Control Feature | Touchscreen HMI |
| Connectivity | Compatible Pentair app control |
| Automation Compatibility | Compatible with select Pentair automation systems |
| Application | Residential in-ground pool circulation |
| Weight | 55 lbs |
| Certifications | UL, NSF/ANSI 50 |
| Manufacturer | Pentair |
Warranty & Compatibility
Professional installation is recommended for proper electrical setup, plumbing connection, programming, and warranty compliance. Before ordering, confirm voltage, plumbing size, automation requirements, available equipment pad space, and whether the installation requires the touchscreen-only model or the touchscreen with I/O board model.
Customer-Facing Q&A
Q: What model number is this pump?
A: This listing is for the Pentair IntelliPro3 VSF model 013077.
Q: Does the Pentair 013077 include the touchscreen?
A: Yes. The 013077 includes the touchscreen HMI controller.
Q: Does the 013077 include the I/O relay board?
A: No. The 013077 includes the touchscreen. If the customer needs both touchscreen and I/O relay board, compare with model 013078.
Q: What is the difference between 013075, 013076, 013077, and 013078?
A: The 013075 is the standard 3HP IntelliPro3 VSF. The 013076 includes the I/O board. The 013077 includes the touchscreen. The 013078 includes both the touchscreen and I/O board.
Q: What voltage does this pump require?
A: The Pentair IntelliPro3 VSF 013077 is designed for 208–230V power.
Q: What is the horsepower rating?
A: This pump is rated at 3.0 HP / 3 THP.
Q: How much does the Pentair 013077 weigh?
A: The listed weight is approximately 55 lbs.
Q: Is this a variable speed pump?
A: Yes. This is a variable speed and variable flow pool pump.
Q: Should this pump be professionally installed?
A: Yes. Professional installation is recommended for safe electrical connection, correct plumbing setup, pump programming, and warranty compliance.
