Product Overview

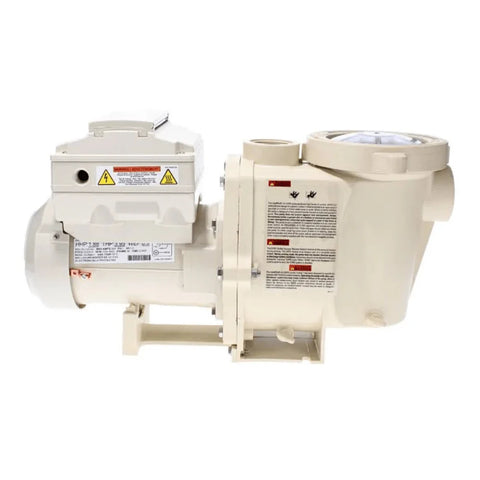

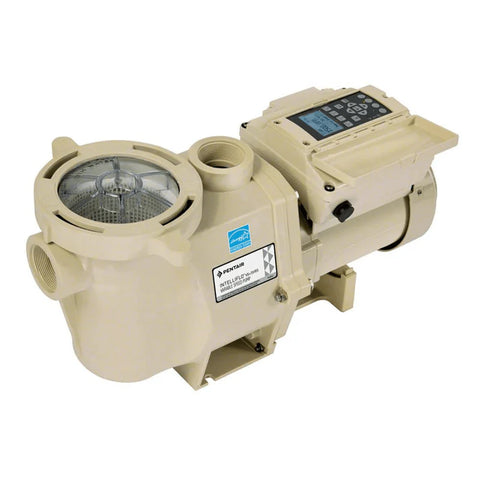

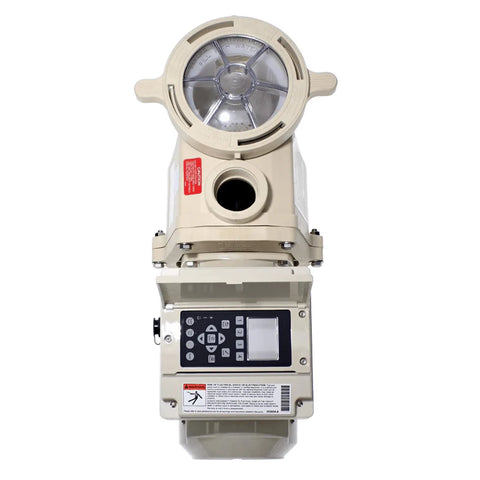

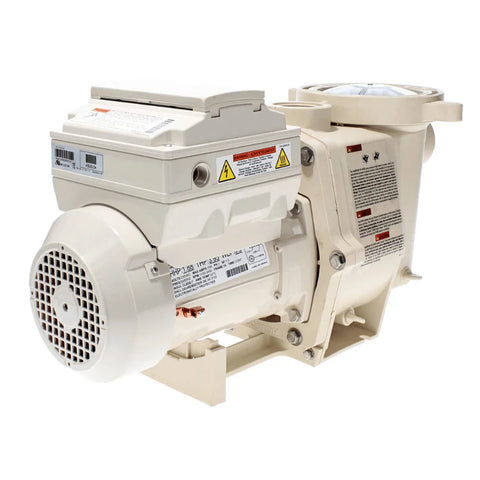

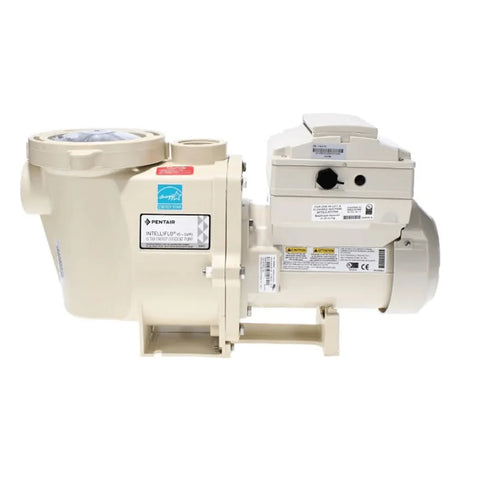

The Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump | 011057 combines high-efficiency variable speed performance with a built-in Safety Vacuum Release System for added suction safety protection. Designed for in-ground pool and spa systems, this pump delivers powerful circulation, energy-saving operation, and advanced onboard intelligence for dependable daily performance.
With up to 3.95 rated horsepower, programmable variable speed control, built-in diagnostics, and SVRS protection that detects drain or suction blockage and automatically shuts the pump off, the IntelliFlo VS+SVRS is a strong choice for pools that need both performance and added safety compliance.
Ideal For
Residential in-ground swimming pools
Pools and spas requiring SVRS protection
Properties needing VGB-compliant suction safety equipment
Replacing single-speed, two-speed, or older IntelliFlo pumps
Systems with filtration, heating, spa jets, cleaners, or water features
Customers needing a high-performance 230V variable speed pump
Key Features
Built-in Safety Vacuum Release System
Automatically detects drain or suction blockage and shuts pump off
Variable speed operation for improved energy efficiency
Up to 3.95 rated horsepower performance
WEF 6.9 energy efficiency rating

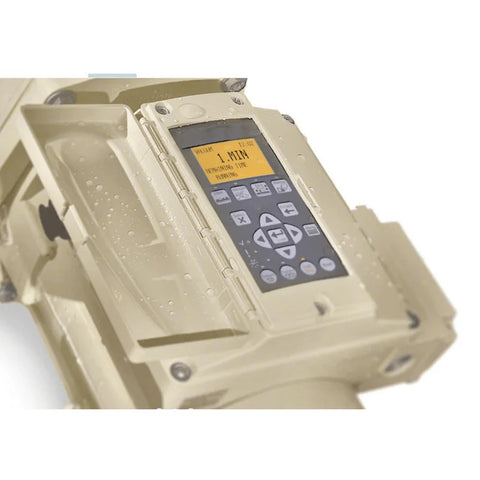

Programmable pump speeds for filtration, heating, cleaning, spa jets, and water features
Built-in diagnostics help protect against overheating, freezing, and voltage irregularities
Password-protected safety lock-out feature
Compatible with Pentair automation systems

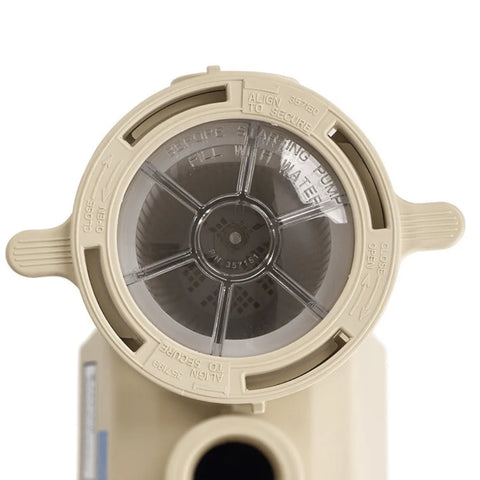

Priming protection included
SVRS cannot be turned off
Complies with current ASME A112.19.17 SVRS standard
Energy Star certified
Benefits
The Pentair IntelliFlo VS+SVRS 011057 gives pool owners powerful variable speed performance with an added built-in safety layer. Its integrated SVRS system monitors for suction or drain blockage and automatically shuts the pump off, helping support safer pool operation when used with proper VGB-compliant drain covers.
The variable speed design allows the pump to run at lower speeds for normal filtration and higher speeds when more flow is needed for heating, spa operation, cleaners, or water features. This helps reduce energy use while maintaining strong circulation and system performance.
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Product Line | IntelliFlo VS+SVRS |
| Product Type | Pool Pump |
| Pump Type | Variable Speed |
| SKU / Part Number | 011057 |
| Barcode / UPC | Verify before publishing |
| Rated Horsepower | 3.95 HP |
| Total Horsepower | 3.95 THP |
| Hydraulic Horsepower | 1.883 HHP |
| Weighted Energy Factor | 6.9 WEF |
| Voltage | 230V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| High Speed Amps | 16A |
| Wattage | 3200W |
| Speed Control | Variable speed |
| Port Size | 2" |
| Motor Type | Permanent Magnet |
| SVRS Protection | Built-in Safety Vacuum Release System |
| Automation Compatibility | Compatible with Pentair automation systems |
| Application | In-ground self-priming pool filter pump |
| Weight | 53 lb |
| Shipping Dimensions | 28" x 12" x 17" |
| Certifications | Energy Star Certified |
| Standards | ASME A112.19.17 SVRS Standard |
| Manufacturer | Pentair |
Warranty & Compatibility
Professional installation is recommended for proper electrical setup, plumbing connection, programming, SVRS setup, and warranty compliance. Before ordering, confirm voltage, plumbing size, suction safety requirements, automation compatibility, available equipment pad space, and local code requirements.
Customer-Facing Q&A
Q: What model number is this pump?
A: This listing is for the Pentair IntelliFlo VS+SVRS model 011057.
Q: What does SVRS mean?
A: SVRS stands for Safety Vacuum Release System. It is designed to detect suction or drain blockage and automatically shut the pump off.
Q: Can the SVRS feature be turned off?
A: No. The built-in SVRS feature cannot be turned off.
Q: What voltage does this pump require?
A: This pump is designed for 230V single-phase power.
Q: What is the horsepower rating?
A: The pump is rated up to 3.95 HP / 3.95 THP.
Q: Is this pump Energy Star certified?
A: Yes. The Pentair IntelliFlo VS+SVRS 011057 is Energy Star certified.
Q: What is the weight of this pump?
A: The listed product weight is approximately 53 lb.
Q: Is this pump automation compatible?
A: Yes. It is compatible with Pentair automation systems.
Q: Should this pump be professionally installed?
A: Yes. Professional installation is recommended for safe electrical connection, correct programming, SVRS operation, and warranty compliance.
