Product Overview

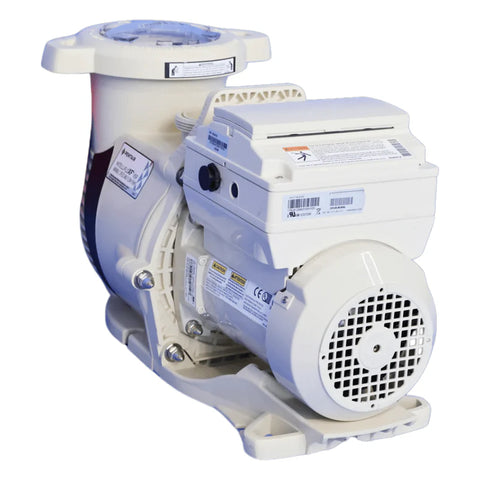

The Pentair IntelliFloXF VSF Variable Speed and Flow Pump 022056 is a premium high-performance pool pump designed for large residential pools, pool and spa combinations, and demanding hydraulic systems. With 3.95 total horsepower, advanced variable speed and variable flow control, and Pentair’s XF hydraulic design, this pump delivers powerful circulation while helping reduce energy usage compared to traditional single-speed pumps.
Unlike standard variable speed pumps, the IntelliFloXF VSF can be programmed by speed or by flow. It automatically adjusts to changing system conditions to help maintain the programmed flow rate, making it ideal for pools with waterfalls, slides, negative edges, spa spillovers, in-floor cleaning systems, heaters, sanitizers, and other high-flow features. Pentair lists the IntelliFloXF VSF with WEF 5.6, 3.95 THP, ENERGY STAR certification, eight programmable speed or flow settings, and compatibility with Pentair automation systems.
Ideal For
- Large in-ground swimming pools
- Pool and spa combination systems
- Pools with waterfalls, slides, fountains, or decorative water features
- Negative-edge and vanishing-edge pools
- Spa spillovers and raised spas
- In-floor cleaning systems
- High-flow filtration systems
- Energy-conscious pool owners upgrading from single-speed pumps
- Pentair automation-controlled equipment pads
Key Features
- 3.95 THP High-Performance Motor — Built for large pools and high-flow pool systems requiring strong circulation performance.
- Variable Speed and Variable Flow Control — Allows programming by speed or flow rate for more precise system performance.
- Maintains Programmed Flow Rate — Adjusts to changing flow system conditions to help keep the selected flow rate consistent.
- ENERGY STAR Certified — Designed for energy-efficient pool operation and lower daily operating costs.
- WEF 5.6 Rating — Listed by Pentair with a Weighted Energy Factor of 5.6.
- Eight Programmable Settings — Includes eight programmable speed or flow settings with a built-in timer.
- Quiet Operation — Designed for whisper-quiet performance, especially at lower operating speeds.
- Rotatable Keypad — Keypad can be rotated for easier access, with optional wall mount kit sold separately.
- TEFC Motor Design — Totally enclosed fan-cooled motor helps protect the motor from outdoor conditions.
- Large Plumbing Compatibility — Union connectors included for direct connection to 2.5 in. or 3 in. plumbing.
- Pentair Automation Compatible — Works with compatible Pentair automation systems, including EasyTouch and IntelliTouch with ScreenLogic2 interface.
Benefits
The Pentair IntelliFloXF VSF 022056 gives pool owners the power needed for complex pool systems while improving control and efficiency. Its variable speed and flow capability allows the pump to operate at lower speeds for everyday filtration and higher output when needed for spa mode, water features, cleaners, or rapid circulation.
For large pools and feature-rich systems, the XF hydraulic design helps deliver reliable flow without unnecessary energy waste. The programmable digital control interface makes daily operation easier, while compatibility with Pentair automation allows homeowners and service professionals to integrate the pump into a complete equipment system.
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Product Line | IntelliFloXF VSF |
| Model Number | 022056 |
| SKU | 022056 |
| UPC / Barcode | 788379861599 |
| Pump Type | Variable Speed and Variable Flow Pool Pump |
| Total Horsepower | 3.95 THP |
| Max Horsepower Class | 3 HP Max |
| Voltage | 230V |
| Frequency | 50/60 Hz |
| WEF | 5.6 |
| Speed / Flow Settings | 8 programmable settings |
| Motor Design | Totally Enclosed Fan-Cooled |
| Plumbing Compatibility | 2.5 in. or 3 in. plumbing |
| Application | In-ground pools |
| Energy Certification | ENERGY STAR Certified |
| Automation Compatibility | Pentair Automation, EasyTouch, IntelliTouch, ScreenLogic2 |
| Installation Type | Professional installation recommended |
Common Applications
- Pool filtration
- Pool and spa circulation
- Waterfalls
- Spa spillovers
- Negative-edge pools
- Vanishing-edge pools
- Slides and fountains
- In-floor cleaning systems
- Solar heating systems
- Pool heaters
- Salt chlorine generator systems
- Automation-controlled pool systems
What’s Included
- Pentair IntelliFloXF VSF Variable Speed and Flow Pump 022056
- Factory-installed motor and drive
- Built-in digital control interface
- Union connectors for 2.5 in. or 3 in. plumbing
- Manufacturer installation documentation
Customer-Facing Q&A
Q: What does VSF mean?
A: VSF stands for Variable Speed and Flow. This means the pump can be programmed by speed or by flow rate, giving pool owners more precise control over circulation and energy usage.
Q: Is the Pentair IntelliFloXF VSF 022056 good for large pools?
A: Yes. This pump is designed for large in-ground pools and high-flow systems, especially pools with water features, spa spillovers, in-floor cleaners, or complex plumbing.
Q: Can this pump run waterfalls or water features?
A: Yes. The 3.95 THP motor and XF hydraulic design make it a strong option for waterfalls, slides, fountains, negative edges, and other high-flow features.
Q: Is this pump energy efficient?
A: Yes. The IntelliFloXF VSF is ENERGY STAR certified and uses variable speed technology to help reduce energy consumption during everyday operation.
Q: What voltage does this pump require?
A: The Pentair IntelliFloXF VSF 022056 is designed for 230V operation.
Q: Does this pump work with Pentair automation?
A: Yes. It is compatible with Pentair automation systems, including EasyTouch and IntelliTouch when used with compatible controls and interfaces.
Q: What plumbing size does this pump support?
A: Pentair lists the IntelliFloXF VSF with union connectors for direct connection to 2.5 in. or 3 in. plumbing.
Q: Is professional installation recommended?
A: Yes. Professional installation is recommended to ensure proper plumbing, electrical wiring, bonding, programming, and warranty support.
