Product Overview

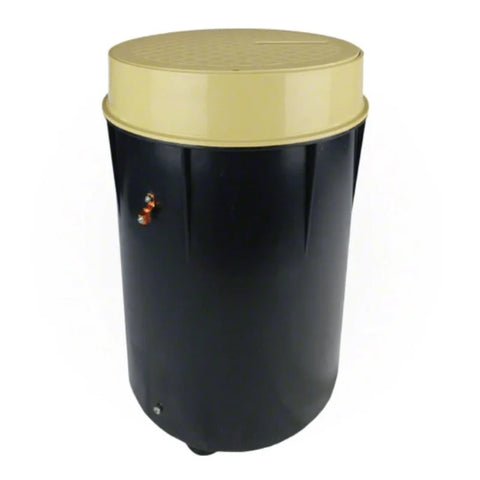

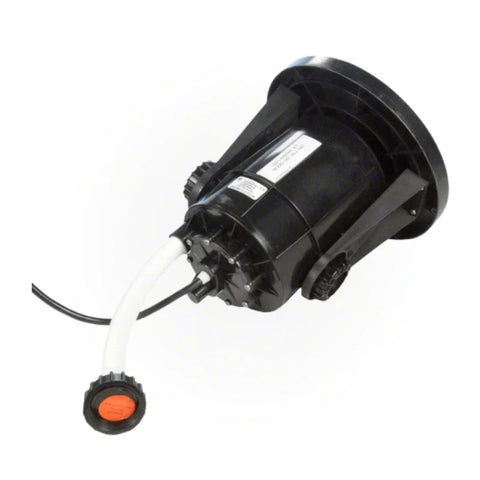

The Pentair MagicStream® Laminar 580001T is an illuminated water-feature system designed to create a smooth, glass-like arc of water from the pool deck or surrounding landscape into a pool, spa, or water feature.
This model features a tan deck lid, integrated 12V LED lighting, and a 100-foot factory cord. The internal laminar design reduces turbulence and air bubbles before the water exits the nozzle, producing a clean, uniform stream rather than a conventional spray.

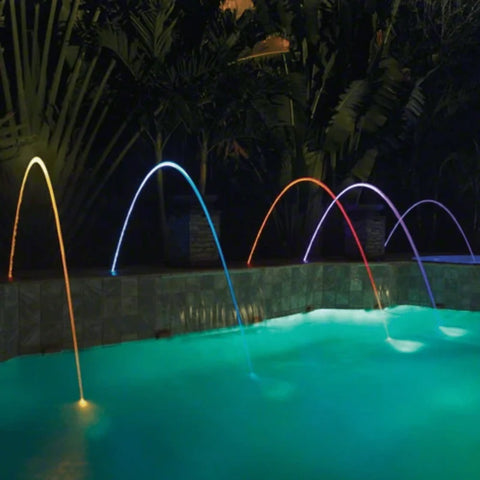

At night, the integrated LED light engine illuminates the moving water with Pentair color effects and can synchronize with compatible IntelliBrite® 5G lighting and Pentair automation systems.
Key Features
- Genuine Pentair MagicStream® Laminar
- Manufacturer Part Number: 580001T
- Tan deck lid
- 100-foot electrical cord
- Low-voltage 12 VAC LED
- Approximately 16W power consumption
- Produces a smooth, clear laminar water arc
- Five fixed LED colors
- Seven programmed light shows
- Can hold a single color or cycle through color effects
- Synchronizes with compatible IntelliBrite 5G LED lighting
- Compatible with optional Pentair Color Sync™ Controller
- Compatible with select IntelliCenter®, EasyTouch®, and IntelliTouch® automation
- Flush deck installation
- Adjustable stream angle and direction
- Low-flow design allows multiple laminars on one pool
- Ships fully assembled and ready for installation
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Product Line | MagicStream® Laminar |
| Part Number | 580001T |
| Product Type | Illuminated Laminar Water Feature |
| Lid Color | Tan |
| Lighting | Integrated Color LED |
| Voltage | 12 VAC |
| Power Consumption | 16W |
| Cord Length | 100 ft |
| Installation | Flush Deck / Landscape |
| Flow Requirement | Approx. 6–7.5 GPM |
| Inlet Pressure | Approx. 2.5–3.5 PSI |
| Typical Jet Height | Approx. 5–6 ft |
| Carton Weight | 21 lb |
| Transformer Included | No |
| OEM | Yes |
Pentair's current catalog lists 580001T specifically as the tan-lid, 100-foot cord configuration and shows performance data of approximately 6–7.5 GPM at 2.5–3.5 PSI.
Smooth Laminar Water Effect
Unlike a conventional fountain nozzle, MagicStream uses an internal flow-conditioning system designed to remove turbulence and air bubbles before the water exits the nozzle.
The result is a smooth, solid-looking arc of water that maintains its shape through the air rather than breaking apart into droplets.
Integrated Color LED Lighting
The built-in microprocessor-controlled LED system provides:
- 5 fixed colors
- 7 programmed light shows
- Single-color hold
- Automatic color-changing effects
- Synchronization with compatible Pentair color lighting
This allows multiple laminars and pool lights to be coordinated for a unified nighttime lighting display.
Adjustable Water Stream
The MagicStream Laminar can be adjusted after installation to fine-tune the water arc.
Pentair specifies:
- Vertical adjustment from approximately 62° to 75°
- Left/right directional adjustment of approximately 60° total
This allows installers to aim the stream toward the desired landing point in the pool or spa.
Performance
Pentair publishes the following approximate operating data:
| Flow | Inlet Pressure | Jet Height |
|---|---|---|
| 6.0 GPM | 2.5 PSI | 5 ft |
| 7.5 GPM | 3.5 PSI | 6 ft |
Actual arc distance and height will depend on plumbing, flow, pressure, and final nozzle adjustment.
Automation Compatibility
MagicStream Laminars can integrate with compatible Pentair lighting and automation products, including:
- IntelliBrite® 5G
- IntelliBrite Architectural Series
- Color Sync™ Controller
- IntelliCenter®
- EasyTouch®
- IntelliTouch®
- Compatible ScreenLogic® installations
This makes it possible to coordinate water-feature lighting with the rest of the pool's lighting system.
Transformer Requirements
The 580001T does not include the transformer.
Pentair specifies connection to an appropriate 120V-to-12VAC pool-lighting transformer. The LED system itself operates at 12 VAC.
Common Pentair transformer options include:
| Part Number | Description |
|---|---|
| 619962 | 12V–14V, 100W Transformer |
| 619963 | 12V–14V, 300W Transformer |
Transformer sizing should account for the total connected lighting load.
What's Included
- MagicStream Laminar assembly
- Integrated LED light engine
- Tan deck lid
- 100' electrical cord
- Integrated water-stream adjustment components
Not Included
- Pool-lighting transformer
- Automation controller
- Dedicated circulation pump
- Plumbing supply line
- Additional electrical conduit
Frequently Asked Questions
What is Pentair 580001T?
580001T is the Pentair MagicStream LED Laminar with a tan deck lid and 100-foot electrical cord.
Is this a 12V unit?
Yes. The LED light engine operates at 12 VAC.
How much power does it use?
Pentair specifies approximately 16 watts for the LED system.
Does it include a transformer?
No. A compatible low-voltage pool-lighting transformer is required separately.
How long is the cord?
100 feet.
What color is the lid?
Tan.
Can it synchronize with Pentair pool lights?
Yes. MagicStream is designed to synchronize with compatible IntelliBrite 5G lighting systems.
Does it work with Color Sync?
Yes. Pentair lists MagicStream Laminars as compatible with the Color Sync Controller.
Can I control it through IntelliCenter?
Pentair's current catalog lists MagicStream Laminar as compatible with IntelliCenter automation when properly configured.
How much water flow does it need?
Pentair publishes approximately 6–7.5 GPM per laminar depending on the desired jet height.
Is there a 150-foot tan version?
Yes. Pentair 580038 is the tan-lid MagicStream Laminar with a 150-foot cord.
