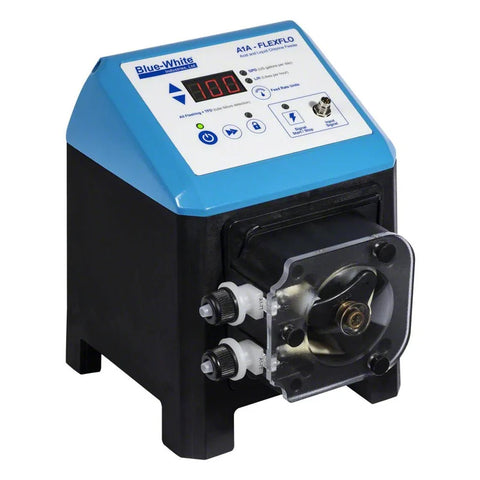

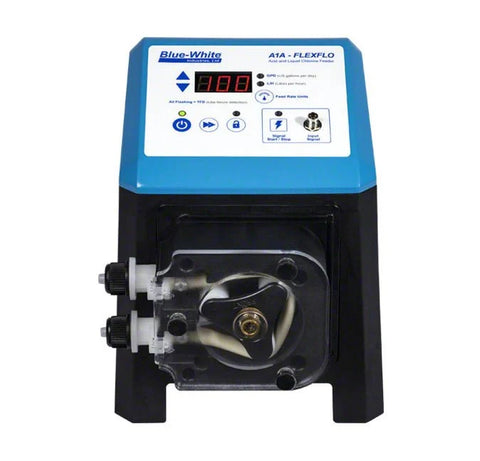

The A1A4-7T delivers precise, maintenance-light chemical dosing for commercial aquatic facilities without the vapor lock or valve clogging common in traditional diaphragm systems. This Blue-White Industries FLEXFLO® A1A peristaltic metering pump adjusts its output between 0.01 and 100 gallons per day using a brushless DC motor, making it capable of steady-state sanitation and peak-demand cycling across pools, spas, and water parks. Operating on standard 115VAC power with an integrated NEMA 5-15 plug removes the need for conduit or hardwiring while supporting continuous-duty rotation. The valve-free peristaltic action self-primes against backpressure up to 40 PSI, safely transferring sodium hypochlorite and compatible acids at temperatures up to 185°F through supplied 3/8" OD Flex-A-Prene® 7T tubing. Patented Tube Failure Detection continuously monitors the rotor tube for cracks or leakage, protecting surrounding equipment and reducing unscheduled downtime. A waterproof digital control interface allows precise gallon-per-day adjustment and includes a physical lockout to prevent accidental calibration shifts. Housed in an NEMA 4X/IP66 enclosure weighing approximately 6 pounds, the 7.25 by 9 by 10-inch unit mounts in wet environments with standard suction limits of 30 feet. Keep inlet lines short, verify wetted-part compatibility with your specific disinfectant, and secure factory settings when installing under Blue-White’s two-year warranty guidelines.
| Specification | Details |
|---|---|
| Brand | Blue-White Industries |
| Series | FLEXFLO® A1A |
| Manufacturer Part Number | A1A4-7T |
| Product Type | Peristaltic Metering Pump |
| Feed Range | 0.01–100 GPD |
| Maximum Flow | 4.17 GPH |
| Maximum Flow | 15.8 LPH |
| Maximum Pressure | 40 PSI |
| Pump Tube | Flex-A-Prene® 7T |
| Tube Connection | 3/8" OD x 1/4" ID |
| Maximum Motor Speed | 65 RPM |
| Motor | Brushless DC |
| Duty Cycle | Continuous |
| Voltage | 115VAC |
| Frequency | 50/60 Hz |
| Phase | Single Phase |
| Plug Type | NEMA 5-15 |
| Maximum Suction Lift | 30 ft |
| Maximum Fluid Temperature | 185°F |
| Enclosure | NEMA 4X / IP66 |
| Approx. Dimensions | 7.25" W x 9" H x 10" D |
| Approx. Product Weight | 6 lb |
| SKU | A1A4-7T |
| Warranty | 2 Years |
