Product Overview

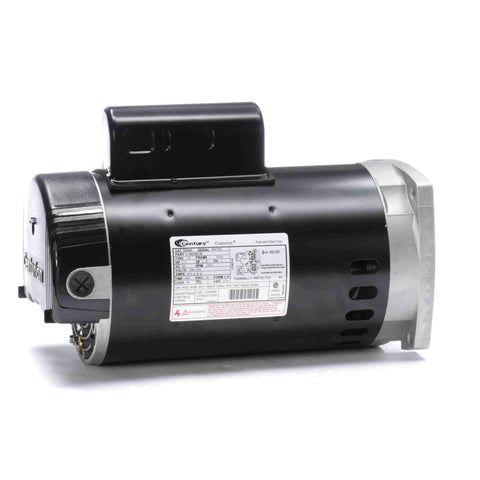

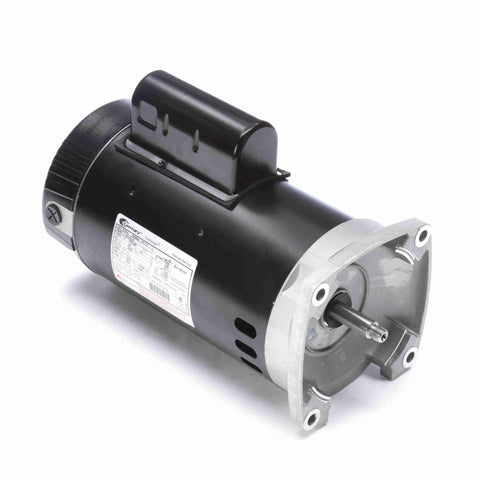

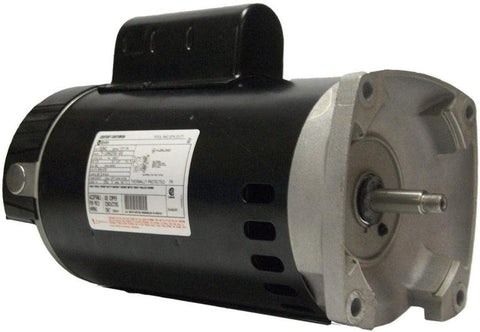

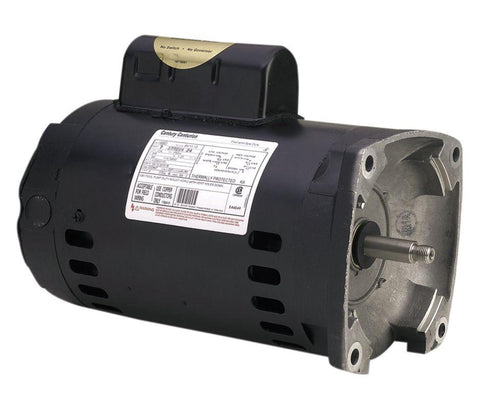

The Century B2842 Pool and Spa Pump Motor is a 1.5 HP single-speed replacement motor designed for compatible pool and spa pump applications. Built with a 56Y frame and 208-230V single-phase power, this motor is commonly used to restore performance on compatible pump systems where the existing motor has failed, become noisy, overheated, or lost efficiency.
This motor is intended for professional pump motor replacement and should be matched carefully by horsepower, voltage, frame size, service factor, shaft style, and pump compatibility before ordering.
Ideal For
Pool pump motor replacement
Spa pump motor replacement
Compatible 56Y frame pump applications
Single-speed pool pump repairs
208-230V pool equipment systems
Replacing worn, noisy, or failed motors
Pool professionals servicing residential pump systems
Key Features
1.5 HP motor rating for compatible pool and spa pump applications
Single-speed operation designed for traditional pump motor replacement
208-230V single-phase power for compatible pool equipment electrical systems
56Y frame design used on many pool and spa pump motor applications
Permanent split capacitor design supports efficient motor operation
Century motor construction built for pool and spa pump service environments
Benefits
The Century B2842 replacement motor helps restore pump operation without replacing the complete pump, as long as the existing pump wet end is still in good condition and compatible with this motor.
Replacing a failed motor can help reduce noise, improve reliability, and bring a pool circulation system back into service. For best results, replace the shaft seal and inspect the impeller, diffuser, seal plate, and gaskets during installation.
Specifications
| Specification | Details |
|---|---|
| Brand | Century |
| Product Type | Pool / Spa Pump Motor |
| Part Number | B2842 |
| Horsepower | 1.5 HP |
| Speed | 1-Speed / Single-Speed |
| Phase | 1 Phase |
| Frequency | 60 Hz |
| Voltage | 208-230V |
| Frame | 56Y |
| Application | Pool and Spa Pump Motor Replacement |
| Motor Type | Permanent Split Capacitor |
| SKU | CRMB2842 -H |
| Barcode / UPC | 786674012210 |
Confirm Before Ordering
Please confirm your existing motor label before ordering. Match the horsepower, voltage, phase, frame size, service factor, RPM, shaft style, mounting style, and pump model. Pool pump motors can look similar but may not be interchangeable.
Installation Note
Professional installation is recommended. Always shut off power at the breaker before servicing pool equipment. A new pump shaft seal should be installed whenever replacing a pool pump motor to help prevent leaks into the new motor.
Warranty & Compatibility
Compatibility depends on the pump model, impeller size, seal plate, voltage, and motor specifications. Electrical parts and installed motors may not be returnable once wired, installed, or attempted to be installed. Verify all specifications before purchase.
Customer-Facing Q&A
Q: What horsepower is this motor?
A: This is a 1.5 HP pool and spa pump motor.
Q: What voltage does this motor use?
A: This motor is designed for 208-230V single-phase power.
Q: Is this a single-speed or variable-speed motor?
A: This is a single-speed motor.
Q: What frame size is this motor?
A: This motor uses a 56Y frame.
Q: Should I replace the shaft seal when replacing the motor?
A: Yes. A new shaft seal is strongly recommended any time a pool pump motor is replaced.
Q: Will this fit my pump?
A: Fitment depends on your pump model and current motor specifications. Match the motor label and pump model before ordering.
Q: Can I return this after installing it?
A: Installed or wired electrical parts may not be returnable. Confirm compatibility before installation.
