Product Overview

The Pentair EasyTouch UOC Motherboard 8 Auxiliary Pool & Spa (520657) is a genuine Pentair OEM replacement main control board designed for EasyTouch 8 Pool & Spa Combo automation systems. Serving as the central processor of the EasyTouch system, this motherboard manages equipment operation, programming, relay control, valve actuators, sensors, heaters, pumps, lighting, and other connected pool and spa equipment.

Model 520657 is specifically designed for Pool & Spa Combo EasyTouch systems with eight auxiliary circuits. It is a direct replacement for failed or damaged UOC (Universal Outdoor Control) motherboards and restores communication between the control panel and connected equipment when properly installed.

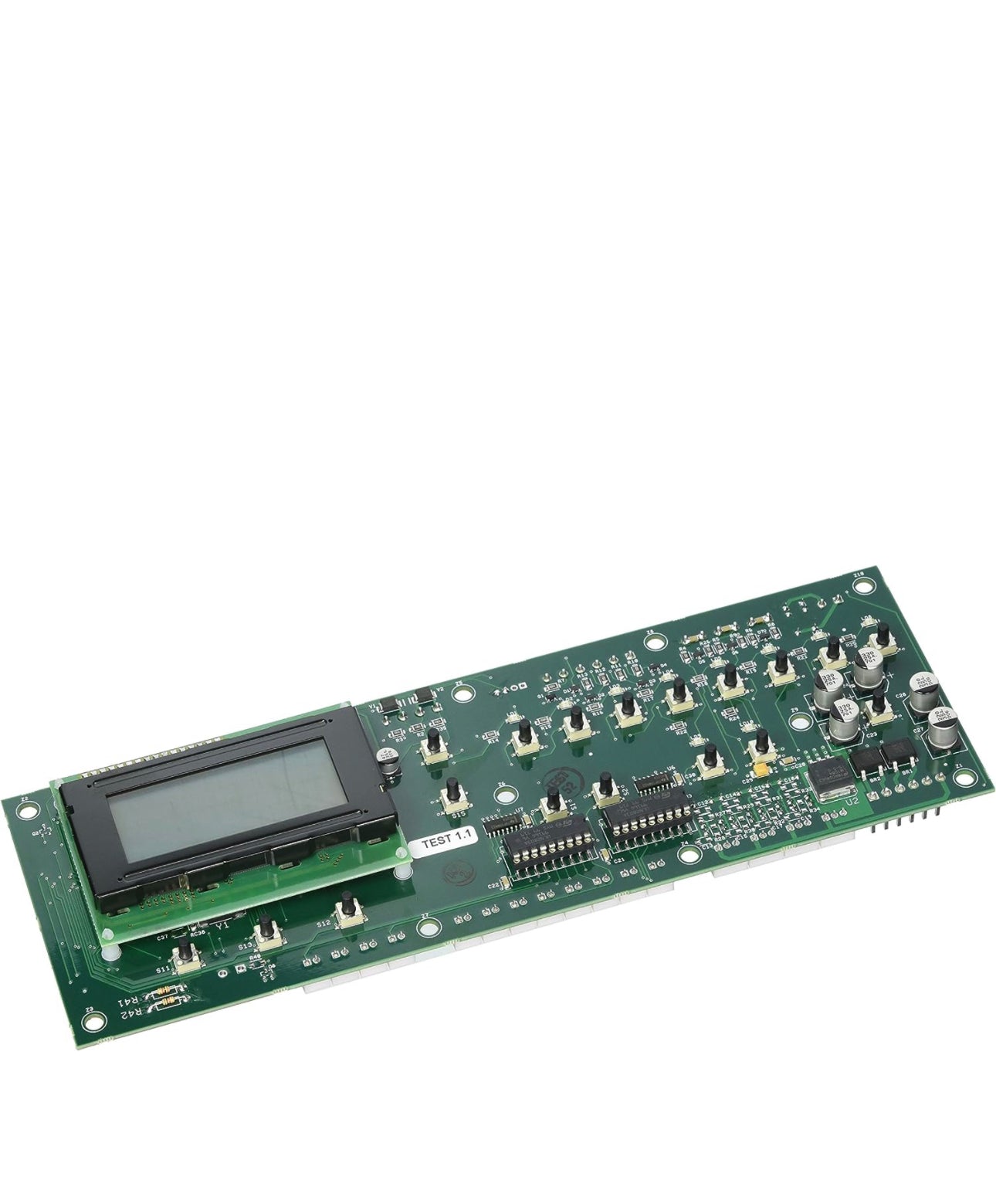

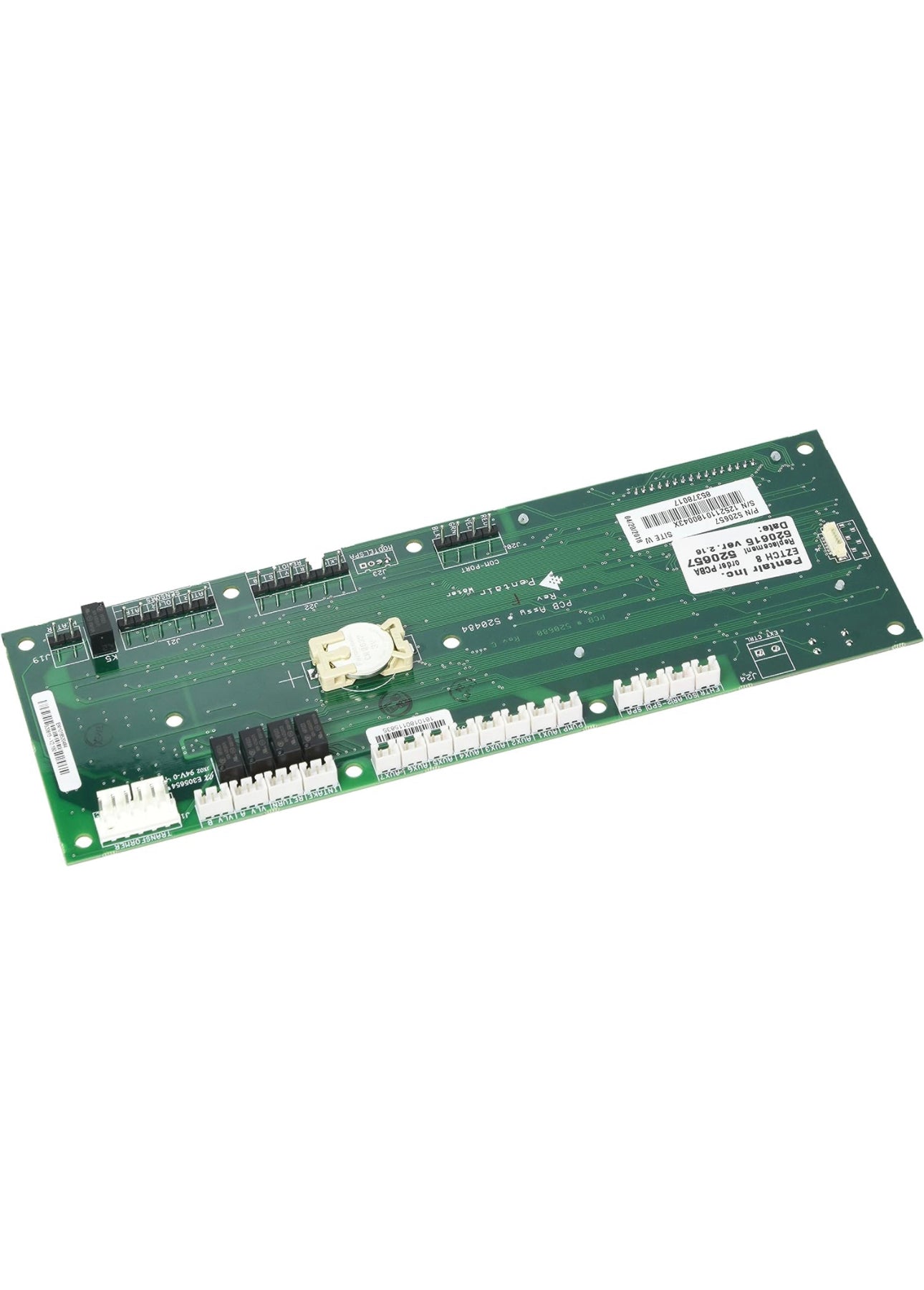

The board features rear-mounted connectors for relays, sensors, communication wiring, and valve actuators, along with a front-mounted LED display interface. As a genuine Pentair replacement part, it is engineered to match the original factory specifications for dependable performance and seamless integration with compatible EasyTouch automation systems.

Key Features

• Genuine Pentair OEM replacement motherboard
• Designed for EasyTouch 8 Pool & Spa Combo systems
• Supports up to 8 auxiliary circuits
• Universal Outdoor Control (UOC) motherboard
• Direct replacement for damaged or failed control boards
• Front-mounted LED display interface
• Rear-mounted equipment connectors
• Controls pumps, heaters, lights, valves, and auxiliary equipment
• Compatible with Pentair EasyTouch automation components
• Factory-programmed hardware configuration
• Designed for residential pool and spa automation systems

Benefits

• Restores full EasyTouch automation functionality
• Eliminates issues caused by failed control boards
• Provides reliable communication between connected equipment
• Supports complete Pool & Spa automation control
• Genuine OEM construction ensures proper fit and compatibility
• Extends the service life of an existing EasyTouch system
• Ideal for professional repairs and automation upgrades

Specifications

Compatible Systems

The Pentair 520657 motherboard is compatible with:

• Pentair EasyTouch 8 Pool & Spa Combo automation systems
• EasyTouch systems configured with 8 auxiliary circuits
• Compatible EasyTouch load centers using the UOC motherboard design

This motherboard is not compatible with:

• EasyTouch 4 systems (use 520659)
• EasyTouch Single Body 8 systems (use 520711)
• EasyTouch Single Body 4 systems (use 520712)
• IntelliCenter automation systems

Common Reasons for Replacement

Replacement may be required if the automation system experiences:

• Failed motherboard communication
• Non-responsive control panel
• Auxiliary circuits not operating
• Display or processor failure
• Relay communication issues
• Lightning or electrical surge damage
• Water intrusion into the control panel
• Intermittent automation failures
• Internal board component failure

Always inspect connected relays, transformers, surge boards, and wiring before replacing the motherboard.

Installation Information

Installation should be performed by a qualified pool professional or licensed electrician familiar with Pentair automation systems.

Disconnect all electrical power before servicing the control panel. Label all wiring before removing the existing motherboard. Install the replacement board, reconnect all wiring according to the original configuration, restore power, and verify operation of all relays, valves, pumps, heaters, sensors, and auxiliary equipment.

System programming, schedules, and configuration may need to be re-entered after motherboard replacement depending on the condition of the original board.

Confirm Before Ordering

Please verify:

• Your required part number is 520657
• Your automation system is an EasyTouch Pool & Spa Combo
• Your system uses 8 auxiliary circuits
• You are replacing the UOC motherboard only
• Your existing load center and wiring are compatible
• Your system is not an EasyTouch 4, Single Body, or IntelliCenter model

Matching the part number and EasyTouch configuration before ordering is strongly recommended.

Warranty Information

The Pentair 520657 UOC Motherboard is covered by Pentair's limited manufacturer warranty against defects in materials and workmanship. Warranty coverage is subject to Pentair's current warranty terms and proper installation by qualified personnel. Damage resulting from lightning, power surges, water intrusion, improper wiring, or incorrect installation is not covered.

Customer Q&A

Q: What EasyTouch system does this motherboard fit?
A: It fits Pentair EasyTouch Pool & Spa Combo systems with 8 auxiliary circuits.

Q: Does this fit an EasyTouch 4 system?
A: No. EasyTouch 4 Pool & Spa systems use motherboard 520659.

Q: Will this work with IntelliCenter automation?
A: No. IntelliCenter systems use different control boards and are not compatible.

Q: Does this include relays or a load center?
A: No. This listing is for the replacement UOC motherboard only.

Q: Will I lose my programming when replacing the board?
A: In many cases, schedules and settings will need to be reconfigured after installation.
