Product Overview

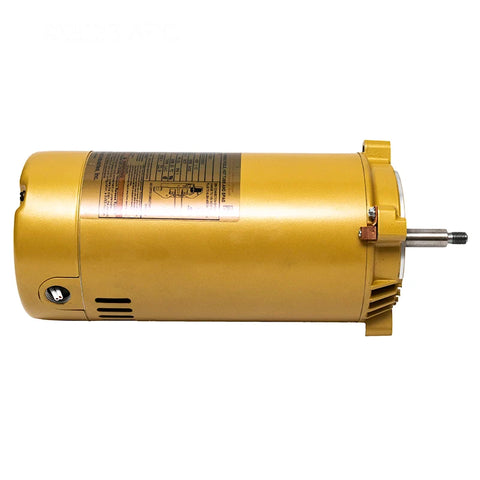

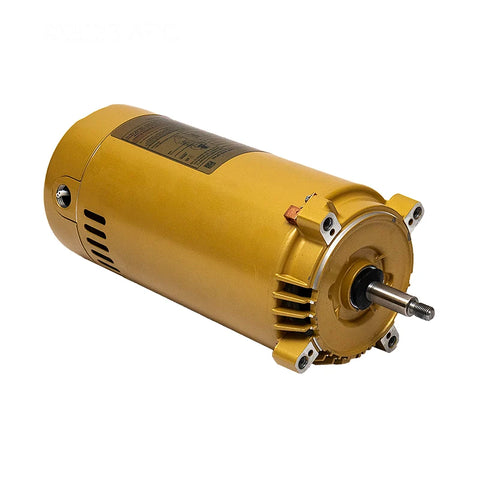

Restore circulation in your compatible pool pump with the Hayward SPX1607Z1M 1 HP MaxRate Replacement Motor. Designed for supported Hayward pump configurations, this single-speed motor offers a practical repair option when the existing motor has failed but the pump housing and hydraulic components remain serviceable.
The 56J frame, C-face mounting, and threaded shaft provide the connection required by compatible pump assemblies. Its dual-voltage design supports 115V or 230V operation when configured according to the supplied motor’s wiring diagram.
Replacing the motor can help preserve your existing equipment layout and avoid replacing an otherwise serviceable pump. Before ordering, confirm the original motor’s horsepower, service factor, voltage, frame, and shaft configuration. Matching horsepower alone does not establish compatibility.
Important Purchase Notice: This product is a replacement motor only. The complete pump, impeller, seal plate, mechanical shaft seal, and plumbing components are not included unless specifically stated.
Key Features
-
Genuine Hayward replacement motor: OEM component for supported pump applications.
-
1 HP MaxRate configuration: Designed for a correctly matched pump and impeller.
-
Single-speed operation: Replaces compatible conventional single-speed motors.
-

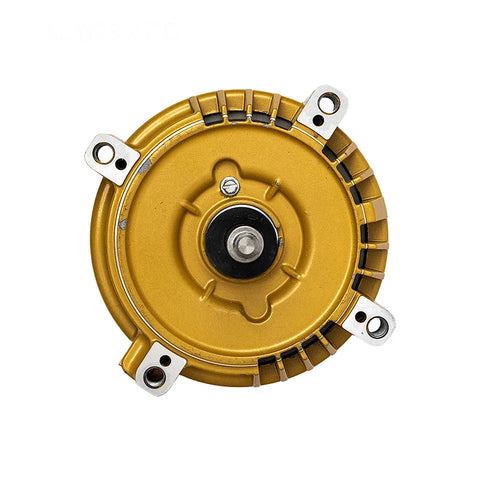

56J frame: C-face mounting with a threaded shaft.
-
Dual-voltage capability: Configurable for 115V or 230V electrical service.
-
Motor-only repair option: Retains serviceable pump housing and hydraulic components.
-
Multiple Hayward applications: Used in select Super Pump®, Max-Flo®, and Super II® configurations.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Hayward |
| Manufacturer Part Number | SPX1607Z1M |
| UPC / Barcode | 610377040280 |
| Product Type | Replacement pool pump motor |
| Horsepower | 1 HP |
| Rating Type | MaxRate / Max-rated |
| Speed Type | Single speed |
| Frame | 56J |
| Mounting | C-face |
| Shaft Type | Threaded |
| Voltage | 115/230V; configure per motor label |
| Frequency | 60 Hz |
| Phase | Single phase |
| Complete Pump Included | No |
| Manufacturer Replacement-Part Warranty | 1 year, subject to applicable terms |
Compatibility
| Pump Family | Fitment Guidance |
|---|---|
| Hayward Super Pump SP1600X / SP2600X | Select configurations specifying SPX1607Z1M |
| Hayward Max-Flo SP1800X / SP2800X | Select configurations; verify motor and impeller requirements |
| Hayward Super II SP3000X | Select configurations; confirm the model-specific parts diagram |
This motor does not fit every horsepower option within these pump families. Confirm the exact pump model and original motor specifications before purchasing.
Service factor matters: Compare the original and replacement motors’ total horsepower ratings—horsepower multiplied by service factor—to ensure the replacement can support the existing impeller load.
Installation and Replacement Guidance
Installation should be performed by a qualified pool professional or electrician. The installer must verify supply voltage, wiring configuration, grounding, bonding, and circuit protection before startup.
A new, correctly matched mechanical shaft seal is recommended during motor replacement. Inspect the impeller, diffuser, seal plate, and accessible gaskets for wear or damage while the motor is removed.
After installation, verify proper priming, leak-free operation, and normal motor performance. Motor replacement does not correct damaged hydraulic components or an improperly sized circulation system.
Frequently Asked Questions
Is this a complete pool pump?
No. SPX1607Z1M is the replacement motor only.
Can it operate on 115V and 230V?
Yes, when configured for the available supply voltage according to the motor’s wiring diagram.
Is this a variable-speed motor?
No. It is a single-speed replacement motor.
Will it fit any 1 HP pool pump?
No. Frame, shaft, mounting, voltage, service factor, and impeller requirements must also match.
Should I replace the shaft seal?
Yes. Replacing the mechanical seal during motor installation helps reduce the risk of leaks damaging the new motor.
Can Pool Supply Depot help confirm fitment?
Send clear photos of your pump model label and existing motor nameplate so our team can assist with replacement identification.
