Product Overview

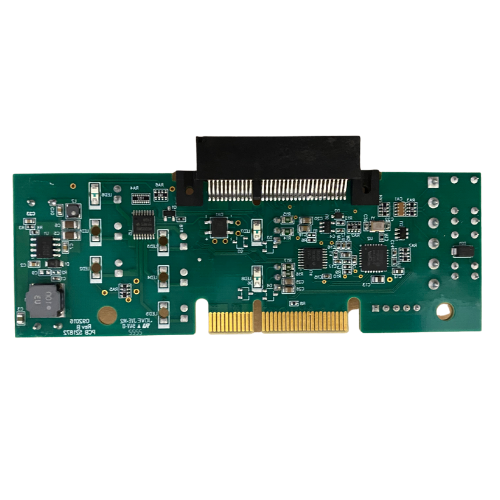

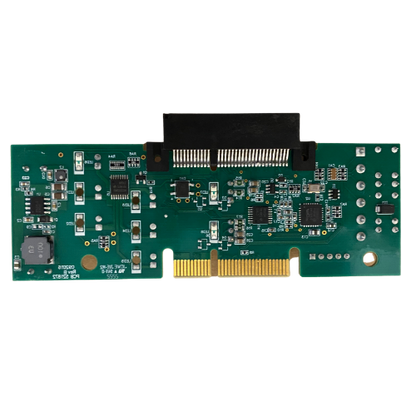

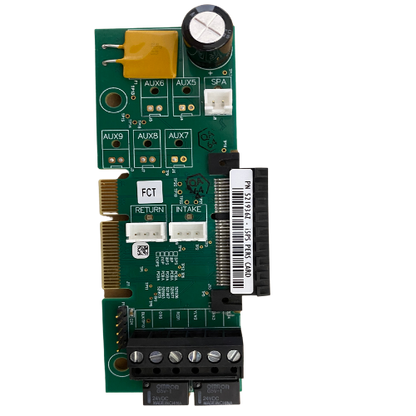

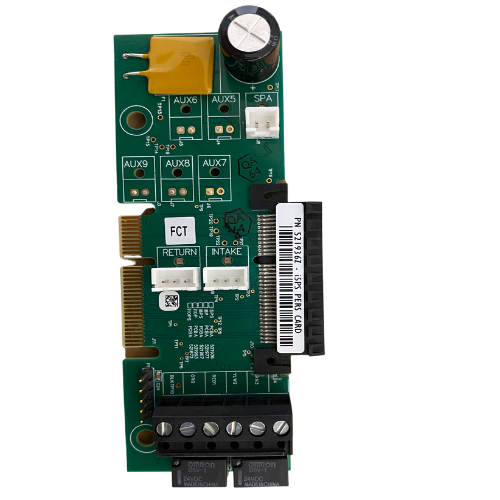

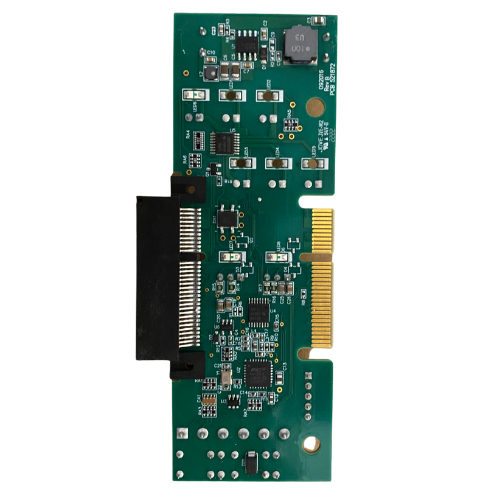

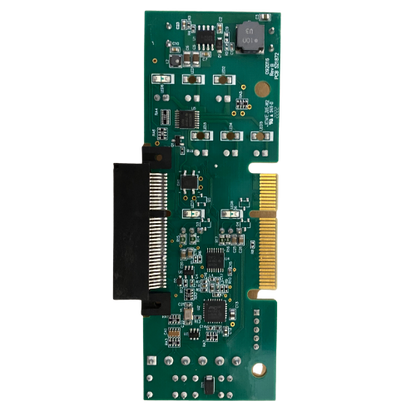

The Pentair 521936Z IntelliCenter i5PS Personality Card is a genuine OEM expansion daughter card designed for compatible Pentair IntelliCenter automation systems.
The card slide-connects directly to an existing i5P main motherboard and converts the system from an i5P single-body configuration to an i5PS Pool & Spa shared-equipment configuration. It is ideal for upgrading an existing IntelliCenter system or replacing a failed i5PS personality card without replacing the main motherboard.
Key Features
Converts i5P to i5PS
Changes a compatible IntelliCenter i5P single-body system into an i5PS shared-equipment Pool & Spa configuration.
Genuine Pentair OEM Component
Factory personality expansion board manufactured specifically for the IntelliCenter automation platform.
Shared Pool & Spa Equipment Configuration
Designed for pool and spa systems that share primary circulation and heating equipment.
Direct Motherboard Connection
Slide-connects directly to the IntelliCenter i5P main motherboard.
Replacement or Upgrade Application
Can replace an existing failed i5PS personality card or upgrade a compatible i5P system.
Benefits
- Genuine Pentair OEM automation component
- Converts i5P from single-body to Pool & Spa shared-equipment control
- Retains the existing compatible i5P motherboard
- Ideal for IntelliCenter system upgrades
- Direct plug-in personality-card design
- Supports IntelliCenter Pool & Spa automation functions
- Allows component-level repair instead of complete system replacement
- Compatible with additional IntelliCenter expansion options where applicable
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Series | IntelliCenter |
| Product Type | Personality Expansion Daughter Card |
| Manufacturer Part Number / SKU | 521936Z |
| UPC / Barcode | 788379883720 |
| Configuration | i5PS |
| Converts From | i5P Single Body |
| Converts To | i5PS Pool & Spa |
| Equipment Configuration | Shared Equipment |
| Main Board Compatibility | IntelliCenter i5P |
| Installation Slot | Personality Card Slot 1 |
| Additional Relays Included | No |
| Application | Pool / Spa Automation |
| Product Weight | 1 lb |
| Shipping Dimensions | 6 x 3 x 3 in. |
| Minimum Sell Quantity | 1 |
| Warranty | 60-Day General Warranty |
Installation Information
The 521936Z installs directly onto the compatible IntelliCenter i5P main motherboard. Pentair specifies that personality expansion cards must be installed in Slot 1.
Disconnect all electrical power to the IntelliCenter Load Center or Power Center before opening the enclosure or installing the card.
After installation, the IntelliCenter Setup Wizard should be used to configure the automation system for the new i5PS Pool & Spa shared-equipment configuration.
Professional installation by a qualified pool automation technician is recommended.
Confirm Before Ordering
Pentair 521936Z is specifically intended for:
- IntelliCenter automation systems
- i5P main motherboards
- i5PS Pool & Spa configuration
- Shared-equipment applications
- Replacement of an existing i5PS personality card
- Upgrading a compatible i5P system to i5PS
This daughter card does not add additional high-voltage relays. It changes the system personality from a single-body i5P configuration to a Pool & Spa shared-equipment i5PS configuration.
Do not confuse 521936Z with i8PS, i10PS, i10P, or i10D personality cards, which provide different system configurations and capacities.
Warranty Information
The Pentair 521936Z is currently listed with a 60-day general warranty. Additional dealer warranty coverage may be available depending on purchase channel and Pentair's current warranty requirements.
Customer Q&A
Q: What does the Pentair 521936Z do?
It converts a compatible IntelliCenter i5P single-body automation system into an i5PS Pool & Spa shared-equipment system.
Q: Does it replace the i5P motherboard?
No. The card connects directly to the existing compatible i5P main motherboard.
Q: Does the card add more equipment relays?
No. The i5PS personality card changes the system configuration but does not add additional relay circuits.
Q: Where does the card install?
Pentair specifies installation in Personality Card Slot 1 on the IntelliCenter main motherboard.
Q: Is this a complete IntelliCenter automation system?
No. This listing is for the i5PS personality daughter card only. The i5P motherboard, load center, relays, transformer, valve actuators, and other automation components are not included.
