Product Overview

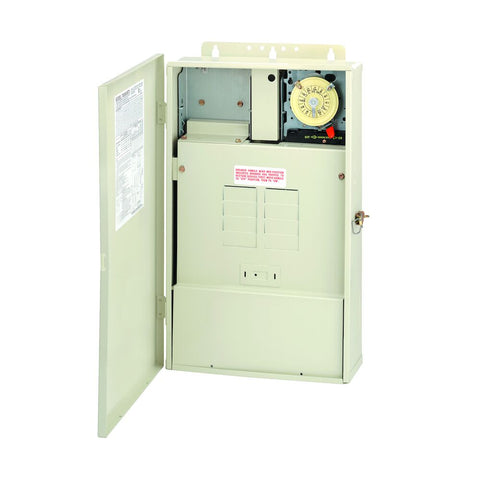

The Intermatic T40004RT3 is a heavy-duty pool and spa electrical control center designed to combine power distribution, equipment timing, and low-voltage lighting power into one convenient outdoor-rated enclosure.
This model includes a 100-amp load center, eight breaker spaces, a factory-installed 300-watt transformer, and an Intermatic T104M 24-hour mechanical timer mechanism. It is an excellent solution for residential pool and spa installations that require centralized control of pumps, lighting, and other electrical equipment.
The built-in 300W transformer provides 12V, 13V, or 14V low-voltage output, making the T40004RT3 particularly useful for powering compatible pool and spa lighting systems. The integrated T104M mechanism operates on 240 VAC and provides dependable mechanical scheduling for pool pumps or other equipment.
Constructed with a durable Type 3R beige metal enclosure, the T40004RT3 is designed for indoor or outdoor installations and helps simplify equipment-pad wiring by consolidating several electrical components into a single enclosure. Intermatic
Key Features
- 100 Amp load center
- 8 breaker spaces
- Factory-installed 300W low-voltage transformer
- Includes Intermatic T104M mechanical timer mechanism
- Transformer output selectable at 12V, 13V, or 14V AC
- Designed for 120/240V single-phase pool and spa electrical systems
- Heavy-duty Type 3R metal enclosure
- Suitable for indoor and outdoor installation
- Supports pool pumps, underwater lighting, landscape lighting and other compatible loads
- Additional Intermatic mechanisms and components can be installed where applicable
- Convenient side knockout for additional wiring devices
- Designed to simplify pool equipment-pad electrical installation Intermatic
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Intermatic |
| Model / SKU | T40004RT3 |
| Product Type | Pool & Spa Load Center / Control Panel |
| Load Center Rating | 100A |
| Breaker Spaces | 8 |
| System Voltage | 120/208/240 VAC, Single Phase, 60 Hz |
| Timer Mechanism | T104M |
| Timer Supply Voltage | 240 VAC, 60 Hz |
| Transformer Capacity | 300W |
| Transformer Input | 120 VAC, 60 Hz |
| Transformer Output | 12 / 13 / 14 VAC |
| Switch Type | DPST |
| Resistive Rating | 40A, 120–240 VAC |
| Inductive Rating | 40A, 120–240 VAC |
| Motor Rating – 120V | Up to 2 HP |
| Motor Rating – 240V | Up to 5 HP |
| Enclosure | Type 3R Metal |
| Color | Beige |
| Dimensions | 20.875"H × 12.875"W × 4.75"D |
| Operating Temperature | -40°F to 130°F |
| Certification | cCSAus |
| Manufacturer Warranty | 1-Year Limited Warranty |
Specifications are based on Intermatic's published technical information for the T40004RT3. Intermatic
Built-In 300W Pool Light Transformer
One of the main advantages of the T40004RT3 is its integrated 300-watt transformer. Instead of installing a separate transformer enclosure for compatible low-voltage pool or landscape lighting, the transformer is incorporated directly into the control center.
Selectable 12V, 13V and 14V AC outputs provide additional flexibility for compensating for voltage drop in properly designed low-voltage lighting circuits. Intermatic
Integrated T104M Mechanical Timer
The included Intermatic T104M is a proven 24-hour mechanical timer mechanism commonly used to automate pool pumps and other 240V equipment.
It allows equipment to be scheduled automatically rather than requiring manual switching each day.
The T104M mechanism is rated for substantial pool-equipment loads, including motors up to 5 HP at 240 VAC, subject to proper installation and applicable electrical requirements. Intermatic
Ideal Applications
The Intermatic T40004RT3 can be used for:
- Residential swimming pools
- Spas and hot tubs
- Pool circulation pumps
- Pool and spa lighting
- Underwater lighting systems
- Landscape lighting
- Motor control
- Equipment-pad electrical distribution
- New pool construction
- Pool equipment upgrades
Installation Notice
Electrical installation should be performed by a qualified electrician or pool professional familiar with swimming-pool electrical systems.
Pool equipment requires proper breaker sizing, bonding, grounding, GFCI protection and compliance with applicable NEC and local electrical codes. Verify lighting voltage, transformer capacity, equipment amperage and circuit requirements before installation.
What's Included
- Intermatic T40004RT3 load center
- 100A load center with 8 breaker spaces
- 300W transformer
- T104M mechanical timer mechanism
- Type 3R metal enclosure
Circuit breakers and additional control mechanisms should be verified separately unless specifically stated as included.
