Product Overview

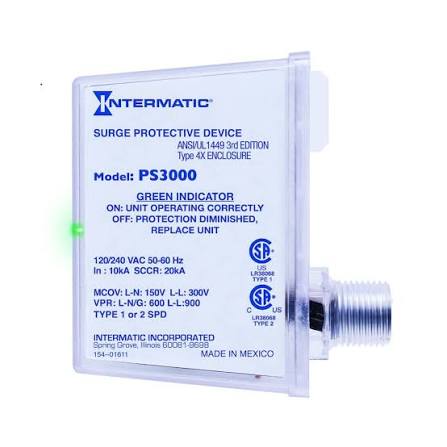

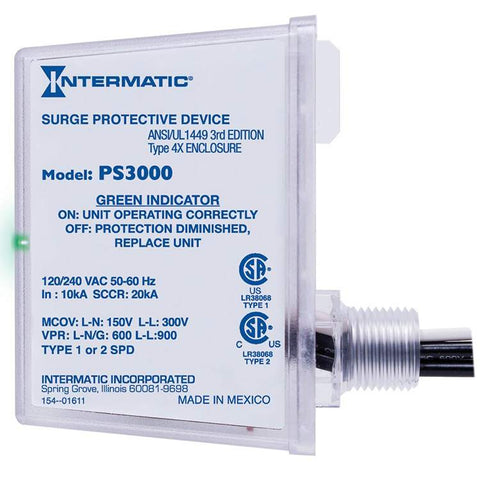

Protect valuable pool and spa equipment from damaging electrical surges with the Intermatic PS3000 Pool & Spa Surge Protection Device. Designed for 120/240V single-phase electrical systems, the PS3000 installs at the pool equipment electrical panel to help protect sensitive electronics from voltage spikes and transient electrical surges.

The PS3000 utilizes Intermatic TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology, providing dependable surge suppression for modern pool and spa equipment.

With a 50 kA maximum surge current rating per phase, three modes of protection, and a rugged Type 4X watertight and UV-resistant enclosure, the PS3000 is designed for both indoor and outdoor pool equipment installations.

LED status indicators provide a convenient visual indication of the unit's protection status, making it easy to determine when the surge protector is operating normally or requires replacement.

Key Features

• Designed for pool and spa electrical equipment
• 120/240 VAC single-phase operation
• Type 1 or Type 2 Surge Protective Device
• Intermatic TPMOV® surge protection technology
• Maximum surge current rating of 50 kA per phase
• 20 kA nominal discharge current
• Three modes of surge protection
• Type 4X watertight and UV-resistant enclosure
• Suitable for indoor and outdoor installation
• LED protection status indicators
• Includes three 18-inch #10 AWG tinned copper wire leads
• cULus Listed
• Meets ANSI/UL 1449 requirements
• Designed for installation at the pool equipment electrical panel
• Helps protect sensitive electronic pool and spa equipment

Common Pool & Spa Applications

The Intermatic PS3000 can help protect electrical equipment connected through a compatible pool or spa electrical system, including:

• Variable-speed pool pumps
• Single-speed and two-speed pumps
• Pool automation systems
• Heater electronic controls
• Pool heat pumps
• Saltwater chlorine generators
• Pool and spa lighting controls
• Electronic timers
• Control boards
• Other compatible 120/240V pool and spa equipment

Specifications

• Manufacturer: Intermatic
• Model: PS3000
• SKU: PS3000
• UPC: 078275141155
• Product Type: Surge Protective Device
• Voltage: 120/240 VAC
• Phase: Single Phase
• Surge Protection Type: Type 1 / Type 2
• Protection Technology: TPMOV®
• Modes of Protection: 3
• Maximum Surge Current Rating: 50 kA per Phase
• Nominal Discharge Current: 20 kA
• Short Circuit Current Rating: 100 kA
• Maximum Continuous Operating Voltage L-N: 150V
• Maximum Continuous Operating Voltage L-L: 300V
• Voltage Protection Rating L1-N/G: 700V
• Voltage Protection Rating L-L: 1200V
• Enclosure: Type 4X Indoor/Outdoor
• Enclosure Color: White
• Status Indicators: LED
• Wiring: Wire Leads
• Included Leads: Three 18-Inch #10 AWG Tinned Copper Leads
• Minimum Operating Temperature: -40°F
• Maximum Operating Temperature: 158°F
• Height: 3.875"
• Width: 1.625"
• Depth: 4.188"
• Certification: cULus
• Application: Pool & Spa Equipment Surge Protection

Installation Notice

The Intermatic PS3000 is an electrical surge protection device and should be installed by a qualified electrician or licensed pool professional in accordance with applicable electrical codes and manufacturer installation instructions.

Confirm that the electrical system is compatible with 120/240 VAC single-phase operation before ordering or installation.

A surge protective device is designed to help reduce the risk of damage caused by voltage spikes and electrical surges. It cannot guarantee complete protection against every electrical event or a direct lightning strike.

Manufacturer Status

The Intermatic PS3000 has been discontinued by the manufacturer. Available units may consist of remaining new inventory and are available while supplies last.

Warranty Information

The Intermatic PS3000 is covered by a 3-year limited manufacturer warranty, subject to Intermatic's warranty terms and conditions.

The PS3000 may also qualify for connected-equipment warranty coverage of up to $7,500, subject to manufacturer eligibility requirements, proper installation, exclusions, and claim procedures.

Warranty claims are handled according to Intermatic's manufacturer warranty policies and may require proof of purchase and proof of proper installation.

Questions & Answers

Q: What is the Intermatic PS3000 used for?

A: The Intermatic PS3000 is a surge protection device designed to help protect pool and spa electrical equipment from damaging voltage spikes and electrical surges.

Q: What voltage does the Intermatic PS3000 support?

A: The PS3000 is designed for 120/240V AC single-phase electrical systems commonly used with pool and spa equipment.

Q: Can the PS3000 protect a variable-speed pool pump?

A: Yes. The PS3000 can help protect the sensitive electronic components found in compatible variable-speed pumps from electrical surges.

Q: Can the PS3000 protect pool automation equipment?

A: Yes. It can help protect compatible pool automation systems, control boards, and other sensitive electronic equipment connected to the protected electrical system.

Q: Can the PS3000 protect a pool heater or heat pump?

A: Yes. The PS3000 may be used to help protect compatible pool heater controls, heat pumps, and other electronic pool equipment from electrical surges.

Q: What is the maximum surge current rating?

A: The Intermatic PS3000 has a maximum surge current rating of 50 kA per phase.

Q: Is the PS3000 a Type 1 or Type 2 surge protector?

A: The PS3000 is designed for use as a Type 1 or Type 2 Surge Protective Device, depending on the installation configuration.

Q: Can the Intermatic PS3000 be installed outdoors?

A: Yes. The PS3000 features a Type 4X watertight and UV-resistant enclosure, making it suitable for indoor and outdoor pool equipment installations.

Q: Does the PS3000 protect against lightning?

A: The PS3000 helps reduce the risk of damage caused by electrical surges and transient voltage spikes. No surge protector can guarantee complete protection against every electrical event or a direct lightning strike.

Q: How do I know if the PS3000 is working?

A: The PS3000 includes LED status indicators that provide a visual indication of the unit's surge protection status.

Q: Does the PS3000 need to be installed by an electrician?

A: Installation should be performed by a qualified electrician or licensed pool professional familiar with pool equipment electrical systems and applicable electrical codes.

Q: Does the PS3000 work with 120V equipment?

A: Yes. The PS3000 is designed for 120/240V single-phase electrical systems and can help protect compatible equipment connected to the protected electrical panel.

Q: Does the Intermatic PS3000 come with wiring?

A: Yes. The PS3000 includes three 18-inch #10 AWG tinned copper wire leads for installation.

Q: What type of enclosure does the PS3000 have?

A: The unit uses a Type 4X enclosure designed for indoor and outdoor applications where resistance to water and UV exposure is important.

Q: Can one PS3000 protect multiple pieces of pool equipment?

A: When properly installed at the appropriate pool equipment electrical panel, the PS3000 can help provide surge protection for multiple compatible electrical loads connected through that protected system.

Q: Is the Intermatic PS3000 discontinued?

A: Yes. The PS3000 has been discontinued by Intermatic. Available units may consist of remaining new inventory and are available while supplies last.

Q: What is the warranty on the Intermatic PS3000?

A: The PS3000 carries a 3-year limited manufacturer warranty and may also qualify for connected-equipment coverage of up to $7,500, subject to Intermatic's warranty terms and requirements.

Q: What is the model number for this surge protector?

A: The manufacturer model number and SKU is PS3000.
