Product Overview

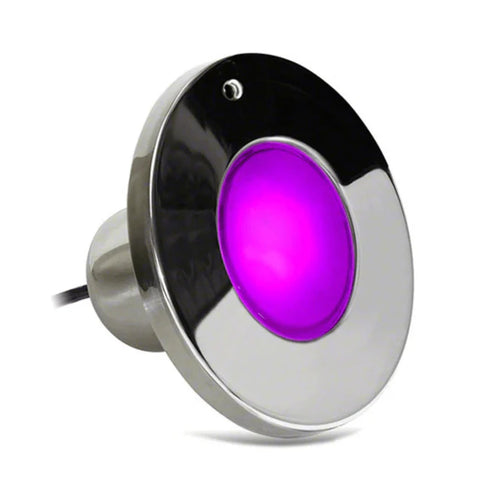

The J&J Electronics ColorSplash® XG-W 100 LED Spa Light 23012 is a complete underwater RGBW fixture designed to provide vivid color-changing illumination and dedicated white light for compatible in-ground spas. This model operates on 120 volts, uses approximately 6 watts, and includes a 100-foot factory-installed cord.

The ColorSplash XG-W combines red, green, blue, and dedicated white LEDs in one sealed fixture. This RGBW design allows the light to create multiple solid colors, programmed lighting shows, and a cleaner white-light mode than standard RGB-only spa fixtures.

J&J’s Zero-Pixelation™ lens system helps create smooth color transitions and even illumination throughout the spa. Wide-angle LEDs distribute light across the water while the polished stainless-steel face ring provides a durable, professional appearance.

This product is a complete wet-niche LED spa-light fixture. It is not a replacement bulb or retrofit lamp. A compatible underwater spa niche is required and sold separately.

Key Features

• Complete ColorSplash XG-W LED spa-light fixture
• RGBW color-changing LED technology
• Dedicated PureWhite® illumination
• 120V electrical operation
• Approximately 6 watts of power consumption
• Approximately 265-lumen output
• Includes a 100-foot factory-installed cord

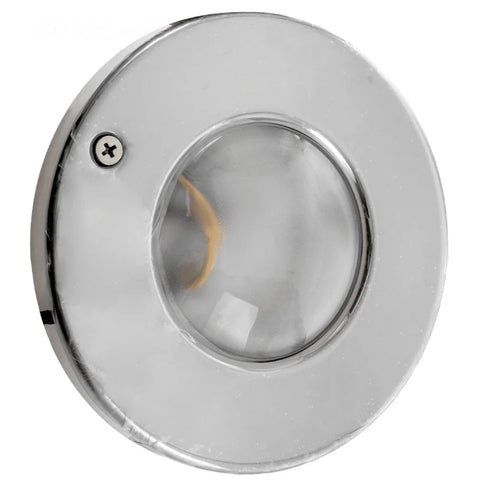

• Polished stainless-steel face ring
• Tempered Zero-Pixelation lens
• Fully encapsulated LED housing
• Five selectable solid colors
• Seven programmed light shows
• Synchronizes with compatible ColorSplash fixtures
• Rated for up to approximately 50,000 operating hours
• Suitable for residential and commercial in-ground spas

Benefits

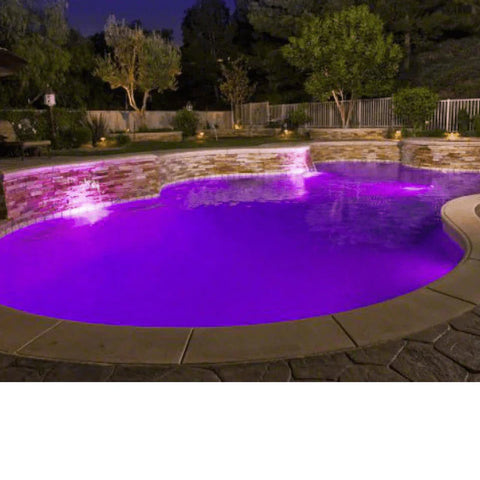

The ColorSplash 23012 allows spa owners to change the atmosphere using vibrant colors, relaxing lighting effects, and bright dedicated white illumination. The PureWhite mode provides clear visibility when traditional white spa lighting is preferred, while the color programs create an inviting environment for entertaining or relaxing.

Its low-power LED design uses significantly less electricity than a traditional 100-watt incandescent spa light. The long-life LED engine also reduces the frequency of underwater lighting maintenance and replacement.

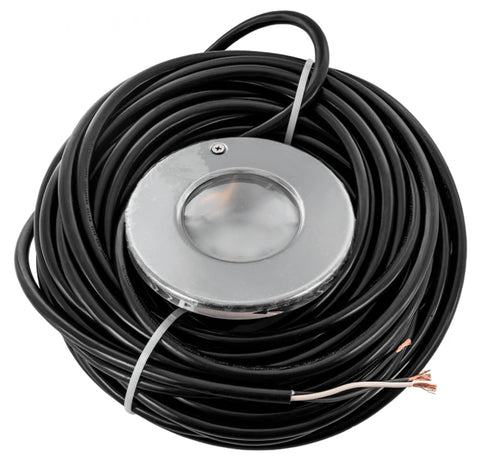

The 100-foot factory cord provides installation flexibility when the approved junction box is positioned farther from the spa. Because the cord is sealed to the fixture at the factory, it must remain continuous and should not be cut, shortened, or spliced underwater.

Specifications

Hayward identifies the 23012 as a 120V S2CW ColorSplash spa fixture with a 100-foot cord, 6-watt rating, 265-lumen output, stainless-steel trim, three-year parts warranty, and one-year labor warranty.

Installation Information

Disconnect all electrical power before installing or servicing the spa light. Confirm that the existing circuit operates on 120 volts and that the niche, conduit, junction box, grounding, bonding, and circuit protection meet applicable electrical codes.

Route the complete factory cord continuously through the niche conduit to an approved junction box. Do not cut, splice, or modify the cord. Leave sufficient cord behind the fixture so it can be raised to the spa deck for future servicing.

Installation must be completed by a licensed electrician or qualified pool professional.

Confirm Before Ordering

Verify the following:

• Your spa-lighting circuit operates on 120V.
• You require a 100-foot factory cord.
• Your spa uses a compatible wet niche.
• You want RGBW color-changing illumination.
• You need a complete fixture rather than a replacement lamp.
• Your existing ColorSplash fixtures are compatible for synchronization.
• The niche mounting screw and lower retaining catch match the fixture.

Warranty Information

The ColorSplash 23012 includes a three-year limited parts warranty and a one-year labor warranty, subject to Hayward’s current written warranty and installation requirements. Warranty coverage does not include incorrect voltage, incompatible niches, cord modification, improper installation, chemical damage, dry operation, or water intrusion caused by installation or servicing errors.
