Product Overview

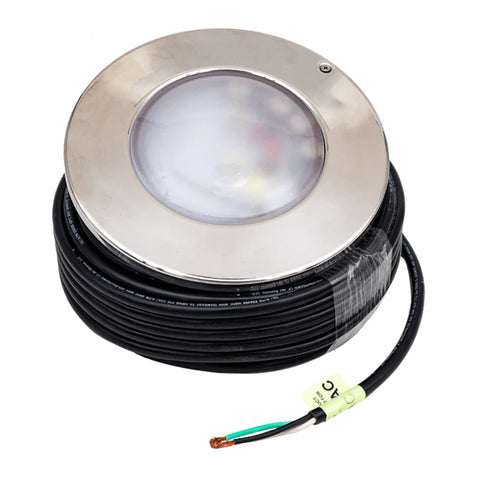

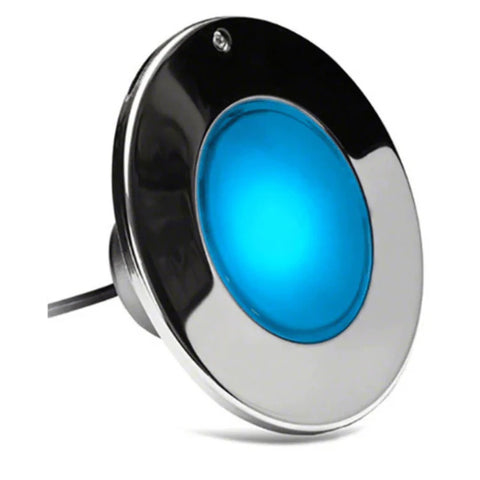

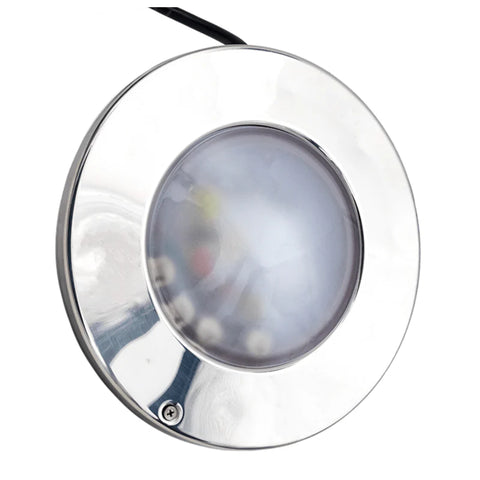

The J&J Electronics ColorSplash® XG-W 500 LED Pool Light 23002 is a premium RGBW color-changing underwater fixture designed for compatible in-ground swimming pools. Operating on 120 volts, this complete LED fixture includes a 100-foot factory-installed cord and delivers brilliant color effects along with a dedicated PureWhite® lighting mode. The fixture consumes approximately 58–59 watts while providing brightness comparable to a traditional 500-watt incandescent pool light.
Unlike standard RGB pool lights that create white by blending colored LEDs, the ColorSplash XG-W features dedicated white LEDs to produce a cleaner, brighter white light. In addition to PureWhite®, the fixture offers five vibrant solid colors and seven dynamic light shows, allowing you to customize your pool's appearance for everyday swimming, entertaining, or special occasions.

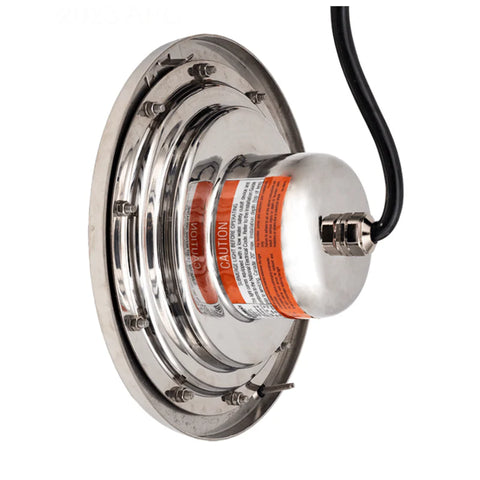

The fixture utilizes J&J's proprietary Zero-Pixelation™ tempered glass lens, which produces smooth, even light distribution while eliminating the visible "hot spots" common with many LED pool lights. Built with a marine-grade 316 stainless-steel housing and polished face ring, the 23002 is engineered for long-term durability in demanding pool environments.
Key Features
- Genuine J&J Electronics ColorSplash® XG-W fixture
- RGBW color-changing LED technology
- Dedicated PureWhite® white LED mode
- 120V electrical operation
- 100-foot factory-installed cord
- Approximately 58–59 watts power consumption
- Comparable to a 500W incandescent pool light
- Approximately 4,270 lumens
- Five solid colors
- Seven programmable light shows
- Zero-Pixelation™ tempered glass lens
- Wide-angle high-output LEDs
- Marine-grade 316 stainless-steel housing
- Polished stainless-steel face ring
- Synchronizes with compatible ColorSplash XG and LXG fixtures
- Rated LED life up to 50,000 hours
Benefits
The ColorSplash XG-W provides vibrant, customizable lighting while using up to 90% less energy than a traditional 500-watt incandescent pool light. The advanced RGBW technology delivers richer colors and a significantly brighter white mode than conventional RGB fixtures.
Wide-angle LEDs provide exceptional light coverage, reducing dark areas and creating a more evenly illuminated swimming pool. The Zero-Pixelation lens further enhances the appearance by producing a smooth glow without visible LED points.
The fixture is designed to work with the J&J XG Controller and is compatible with many Jandy®, Pentair®, and other programmable pool automation systems, making it easy to synchronize multiple lights throughout your pool and spa.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | J&J Electronics |
| Product Line | ColorSplash® XG-W |
| Manufacturer Part Number | 23002 |
| SKU | 23002 |
| Product Type | RGBW LED Pool Light |
| Application | In-Ground Swimming Pools |
| Voltage | 120V |
| Power Consumption | 58–59 Watts |
| Incandescent Equivalent | 500 Watts |
| Light Output | Approximately 4,270 Lumens |
| LED Technology | RGBW with PureWhite® |
| Cord Length | 100 Feet |
| Housing Material | Marine-Grade 316 Stainless Steel |
| Face Ring Finish | Polished Stainless Steel |
| Lens | Zero-Pixelation™ Tempered Glass |
| Rated LED Life | Up to 50,000 Hours |
| Certification | cETLus Listed |
| Warranty | 3-Year Limited |
| UPC / Barcode | 807154310241 |
Installation Information
Turn off all electrical power before installing or servicing the fixture. Verify that the lighting circuit is 120 volts and that the existing wet niche is compatible with the ColorSplash XG-W pool fixture.
Route the factory-installed 100-foot cord continuously through the conduit to the approved junction box. Do not cut, splice, or shorten the factory cord. Leave sufficient slack behind the fixture so it can be removed to the pool deck for future servicing.
The fixture is designed to fit many standard large pool niches from Pentair®, Hayward®, and Jandy®. Installation must comply with all applicable electrical, grounding, and bonding codes and should be performed by a licensed electrician or qualified pool professional.
Confirm Before Ordering
Please verify:
- Your lighting system operates on 120V.
- You require a 100-foot cord.
- Your pool uses a compatible large wet niche.
- You want an RGBW color-changing pool light.
- You need a complete fixture rather than a replacement lamp.
- Your automation system supports LED color-light operation if synchronization is desired.
- You are ordering part number 23002.
Warranty Information
The J&J Electronics ColorSplash XG-W 23002 includes an industry-leading three-year limited manufacturer warranty when installed according to the manufacturer's instructions. Warranty coverage does not include incorrect voltage, improper installation, modified cords, incompatible niches, chemical damage, physical abuse, or water intrusion resulting from improper installation.
Customer Q&A
Does this light produce a true white color?
Yes. Unlike standard RGB fixtures, the XG-W includes dedicated PureWhite® LEDs for bright, crisp white illumination.
How many colors and light shows are available?
The fixture includes five solid colors and seven programmable light shows.
Can multiple lights be synchronized?
Yes. The 23002 synchronizes with compatible ColorSplash® XG and LXG series fixtures and works with the J&J XG Controller and many programmable automation systems.
Is this a replacement bulb?
No. It is a complete sealed underwater LED pool-light fixture.
