Product Overview

The Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump 011057 combines energy-efficient variable-speed operation with an integrated Safety Vacuum Release System, commonly abbreviated as SVRS.

The pump allows its operating speed to be adjusted to match filtration, heating, cleaning, water-feature, and sanitation requirements. Running the pump at lower speeds for routine circulation can reduce energy consumption and operating noise compared with traditional single-speed pool pumps.

Its built-in SVRS technology is designed to detect certain vacuum conditions associated with suction entrapment and automatically stop the pump when the system identifies a qualifying blockage condition.

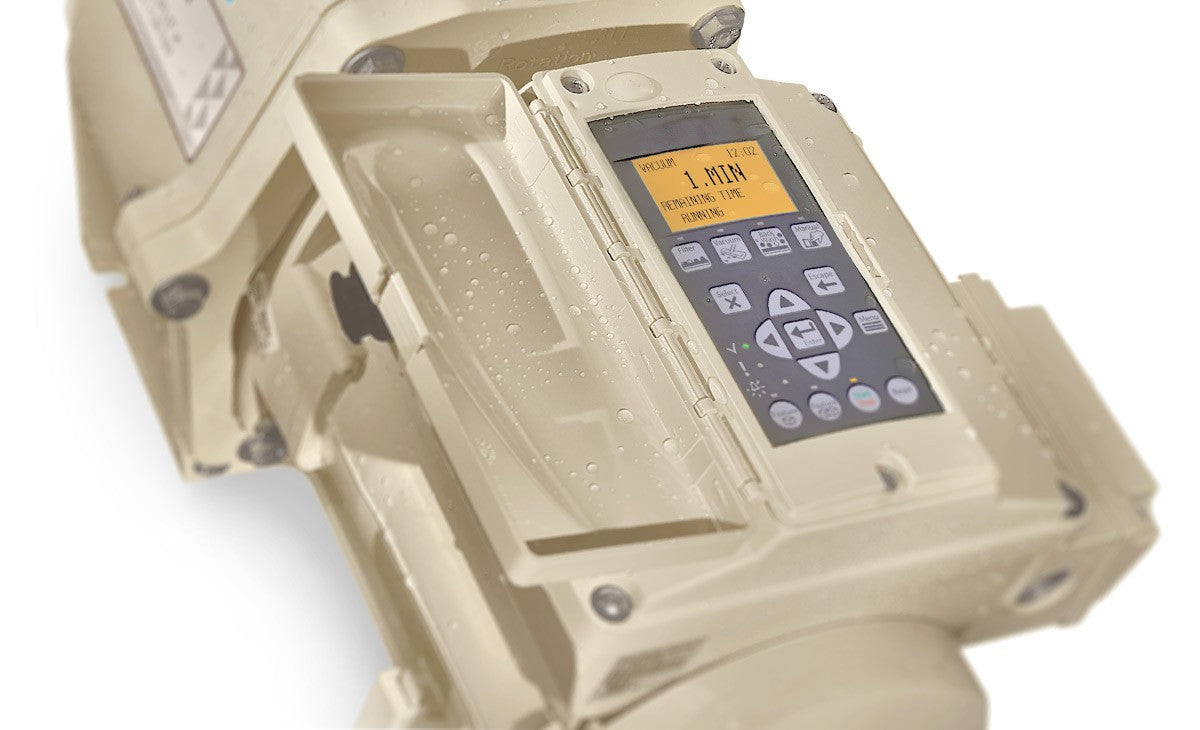

The 011057 includes an onboard digital control interface for programming speeds, schedules, and operating times. It can also be integrated with compatible Pentair automation systems for centralized pool-equipment control.

Important: Model 011057 is an older-generation IntelliFlo VS+SVRS pump and may have been discontinued or replaced in Pentair’s current product lineup. Confirm availability and replacement requirements before ordering.

Key Features

• Variable-speed pool and spa pump
• Integrated Safety Vacuum Release System
• Up to 3 HP performance class
• Permanent-magnet motor technology
• Totally enclosed fan-cooled motor
• Programmable digital drive and keypad
• Adjustable operating speeds
• Built-in scheduling capabilities
• Quiet operation at lower speeds
• Compatible with select Pentair automation systems
• Onboard diagnostic and fault protection
• Suitable for filtration, heating, sanitation, and water-feature applications
• Union-style plumbing connections
• Genuine Pentair pool-equipment product

Safety Vacuum Release System

The integrated SVRS feature is designed to monitor the pump’s vacuum conditions. When the pump detects a qualifying suction-blockage condition, the system is designed to shut the motor off and help release the vacuum.

SVRS technology is an additional safety feature and does not replace:

• Properly designed pool plumbing
• Compliant drain covers
• Multiple suction outlets
• Correct hydraulic balancing
• Required safety inspections
• Applicable federal, state, and local codes

The pump must be professionally installed and configured according to Pentair instructions and all applicable pool-safety requirements.

Energy-Efficient Variable-Speed Operation

The IntelliFlo VS+SVRS pump can operate at different speeds rather than running continuously at full output. This allows the pump speed to be adjusted for each pool function.

Lower speeds may be used for:

• Daily filtration
• Salt chlorine generation
• Routine water circulation
• Heating-system operation

Higher speeds may be used for:

• Spa jets
• Pool cleaners
• Waterfalls
• Deck jets
• Other water features
• Priming and service functions

Actual energy savings depend on pump speed, operating time, plumbing resistance, pool configuration, and utility rates.

Specifications

Common Applications

• Pool filtration
• Attached spa circulation
• Pool and spa heating systems
• Salt chlorine generators
• Suction-side and pressure-side cleaners
• Waterfalls and fountains
• Deck jets and water features
• Solar-heating circulation
• Pool automation systems

Compatible Automation Systems

The pump may communicate with compatible Pentair control systems through the appropriate low-voltage communication connection.

Compatible system families may include select versions of:

• Pentair IntelliCenter
• Pentair IntelliTouch
• Pentair EasyTouch
• Pentair SunTouch

Compatibility depends on the automation model, software revision, communication wiring, and system configuration. Verify compatibility before installation.

Replacement Keypad Information

The compatible replacement drive keypad for model 011057 is commonly identified as:

• Pentair Drive Keypad 357527Z

The 357527Z keypad is compatible with model 011057 and several other select IntelliFlo and IntelliPro pumps.

A failed display does not always mean the keypad is defective. The drive, wiring, power supply, or internal electronics should be diagnosed before replacing individual components.

Confirm Before Ordering

• Confirm the pump model number is 011057.
• Verify that an SVRS-equipped pump is required for the application.
• Confirm the installation has the correct 230V electrical service.
• Verify plumbing size, union configuration, and equipment-pad clearances.
• Confirm compatibility with the existing automation system.
• Do not assume this pump directly replaces every IntelliFlo model.
• Confirm whether the complete pump or only a replacement component is required.
• Review local requirements for SVRS pumps and suction-entrapment protection.
• Installation must be completed by a qualified pool professional and electrician.

Professional Installation Notice

This variable-speed pump contains high-voltage electrical components and an integrated safety system. Installation, programming, bonding, plumbing, and automation connections should be completed by qualified professionals.

Improper installation or configuration can affect:

• Pump performance
• SVRS operation
• Water circulation
• Automation communication
• Equipment warranties
• Electrical safety
• Suction-entrapment protection

The SVRS system should be tested and maintained according to the manufacturer’s procedures.

Warranty Information

Warranty coverage is subject to Pentair’s applicable terms for the product and installation date. Coverage may depend on professional installation by an authorized or qualified installer, proper registration, approved application, and adherence to Pentair installation requirements.

Because model 011057 is an older-generation pump, warranty eligibility may be limited for remaining inventory, used equipment, replacement units, or products sold outside Pentair’s current authorized channels.

Damage caused by improper wiring, incorrect voltage, dry operation, freeze damage, water intrusion, incompatible automation, improper plumbing, or unauthorized repairs may not be covered.

Verify current warranty eligibility before purchase.

Customer-Facing Q&A

What does VS+SVRS mean?
VS means variable speed, while SVRS means Safety Vacuum Release System. The pump combines programmable variable-speed operation with a system designed to detect certain suction-blockage conditions.

Is this the same as a standard IntelliFlo VS pump?
No. Model 011057 includes an integrated SVRS safety feature that is not included on every IntelliFlo variable-speed model.

What voltage does this pump require?
The pump is designed for 230V electrical service. Installation should be performed by a qualified electrician or pool professional.

Can it connect to Pentair automation?
It can communicate with select Pentair automation systems when properly wired and configured. Compatibility should be confirmed using the automation model and software version.

Does it include its own controls?
Yes. The pump includes a digital drive and keypad for adjusting speeds, schedules, and operating functions.

Is the 011057 still manufactured?
The 011057 is an older-generation IntelliFlo model and may no longer be part of Pentair’s active product lineup. Confirm inventory and replacement options before ordering.

Does SVRS eliminate the need for compliant drain covers?
No. SVRS is an additional safety feature and does not replace compliant suction fittings, proper plumbing design, or applicable safety codes.

Which replacement keypad fits this pump?
The Pentair 357527Z drive keypad is commonly used with pump model 011057.
