Product Overview

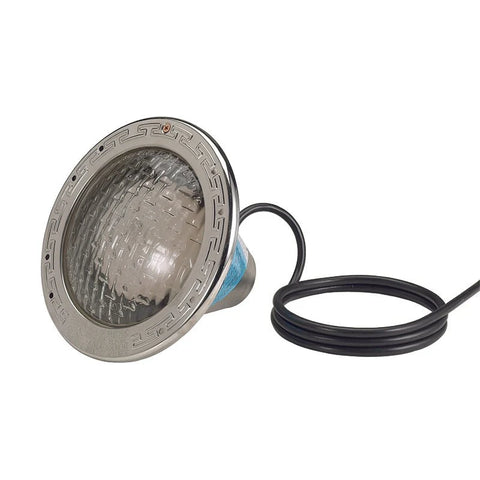

The Pentair Amerlite 78456300 is a full-size underwater incandescent pool light designed to provide powerful, dependable white illumination for residential and commercial swimming pools.
This model features a 500-watt white incandescent lamp, operates on 120 volts, and includes a factory-installed 100-foot cord. Its durable stainless-steel shell and stainless-steel face ring make it a dependable replacement option for compatible full-size Amerlite pool-light installations.
The Amerlite fixture uses a prismatic tempered-glass lens to distribute light throughout the pool and Pentair’s Uni-Tension clamp system to secure the lens and face-ring assembly. A built-in heat-sensing cutoff provides low-water protection by shutting the lamp off if the fixture becomes excessively hot.
The Pentair 78456300 is designed for installation in compatible full-size Pentair, American Products, PacFab, and Purex wet niches. The wet niche, junction box, conduit, GFCI protection, and installation materials are sold separately unless specifically included with the order.
Key Features
- Genuine Pentair Amerlite underwater pool light
- Bright white incandescent illumination
- 500-watt lamp output
- 120-volt operation
- Factory-installed 100-foot cord
- Full-size underwater pool-light fixture
- Stainless-steel shell
- Stainless-steel face ring
- Uni-Tension clamp assembly
- Prismatic tempered-glass lens
- Superior underwater light diffusion
- Heat-sensing low-water cutoff protection
- Serviceable incandescent lamp design
- Optional colored lens covers available separately
- Designed for compatible full-size wet niches
- Suitable for residential and commercial swimming pools
Benefits
- Delivers powerful white underwater illumination
- 500-watt output provides broad lighting coverage
- The 100-foot cord accommodates many standard pool installations
- Stainless-steel construction provides durability in underwater environments
- Prismatic lens helps distribute light more evenly throughout the pool
- Serviceable design allows the incandescent lamp to be replaced
- Compatible with many existing full-size Amerlite-style niches
- Thermal cutoff helps protect the fixture during low-water conditions
- Optional lens covers allow the appearance of the pool lighting to be changed
- Proven Amerlite design has been widely used in pool installations for decades
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair |
| Product Series | Amerlite |
| Model | 78456300 |
| SKU | 78456300 |
| Barcode / UPC | 788379649807 |
| Product Type | Underwater Pool Light |
| Fixture Size | Full Size |
| Approximate Face-Ring Diameter | 10-1/8 Inches |
| Light Type | White Incandescent |
| Lamp Style | R-40 Incandescent |
| Wattage | 500W |
| Voltage | 120V |
| Cord Length | 100 Feet |
| Lens Material | Tempered Glass |
| Lens Type | Prismatic |
| Lens Diameter | Approximately 8-3/8 Inches |
| Face-Ring Material | Stainless Steel |
| Housing Material | Stainless Steel |
| Mounting System | Uni-Tension Clamp |
| Low-Water Protection | Heat-Sensing Cutoff |
| Installation Type | Full-Size Wet Niche |
| Application | In-Ground Swimming Pools |
| Installation | Professional Installation Required |
Compatible Applications
The Pentair Amerlite 78456300 is intended for full-size underwater pool-light installations, including:
- Residential in-ground swimming pools
- Commercial swimming pools
- New pool construction
- Compatible pool renovations
- Replacement of select existing Amerlite fixtures
- Compatible Pentair full-size wet niches
- Select American Products full-size niches
- Select PacFab full-size niches
- Select Purex full-size niches
Compatibility must be confirmed using the existing niche manufacturer, niche model, fixture dimensions, mounting-screw location, voltage, and electrical configuration.
Do not select a replacement fixture based only on its appearance or face-ring diameter.
What Is Included
- One Pentair Amerlite underwater pool-light fixture
- 500-watt white incandescent lamp
- Stainless-steel shell
- Stainless-steel face ring
- Prismatic tempered-glass lens
- Uni-Tension clamp assembly
- Factory-installed 100-foot power cord
The following components are not included unless specifically stated:
- Wet niche
- Junction box
- Electrical conduit
- GFCI breaker
- Pool automation controller
- Transformer
- Colored lens covers
- Replacement niche hardware
- Installation labor
Installation Information
The Pentair Amerlite 78456300 must be installed by a qualified pool professional and licensed electrician according to Pentair instructions, the National Electrical Code, and all applicable state and local regulations.
Before installation:
- Turn off electrical power at the circuit breaker.
- Confirm the lighting circuit supplies 120 volts.
- Verify that the existing full-size wet niche is compatible.
- Confirm the 100-foot cord reaches the approved junction box without splicing.
- Inspect the niche, conduit, bonding connection, and mounting screw.
- Verify that approved GFCI protection is installed and operational.
- Confirm that all grounding and bonding requirements are satisfied.
- Route the factory cord without cutting or underwater splicing.
- Leave enough cord inside the niche to place the fixture on the pool deck for future service.
- Secure the fixture using the correct mounting screw and niche hardware.
- Test the completed electrical installation before placing the pool back into service.
Never operate the fixture for an extended period outside the water. The surrounding pool water is required to cool the incandescent lamp and fixture assembly.
Confirm Before Ordering
- Confirm Pentair part number 78456300.
- Verify a 500-watt white incandescent light is required.
- Confirm the electrical supply is 120 volts.
- Verify a 100-foot factory cord is the correct length.
- Confirm compatibility with the existing full-size wet niche.
- Do not confuse this model with 400-watt Amerlite fixtures.
- Do not confuse it with 12-volt Amerlite models.
- Verify the existing niche manufacturer and model number.
- Confirm the mounting-screw position and face-ring dimensions.
- Measure the required cord distance to the approved junction box.
- Inspect the existing conduit and niche for corrosion or damage.
- Confirm that an incandescent light is permitted for the intended application.
- Have the fixture professionally installed and electrically tested.
Warranty Information
This genuine Pentair lighting product is covered under Pentair’s applicable limited manufacturer-warranty terms.
Warranty eligibility may depend on purchase through an authorized Pentair dealer, professional installation, correct voltage, compatible niche installation, proper bonding and grounding, GFCI protection, and compliance with Pentair installation instructions.
Damage caused by incorrect voltage, improper wiring, unauthorized cord modification, underwater splicing, damaged conduit, improper gasket installation, water intrusion, operation outside the water, incompatible niche installation, or unauthorized repairs may not be covered.
Keep the original purchase receipt and professional installation invoice for possible warranty service.
Customer Q&A
Is the Pentair 78456300 an LED pool light?
No. This fixture uses a traditional 500-watt white incandescent lamp.
What voltage does this light require?
It requires a 120-volt electrical supply.
How long is the factory cord?
This model includes a factory-installed 100-foot cord.
What color light does it produce?
It produces traditional white incandescent illumination.
What is the diameter of the face ring?
The stainless-steel face ring measures approximately 10-1/8 inches in diameter.
Does this light include a wet niche?
No. The wet niche is sold separately unless specifically included in a package.
Will it fit every Pentair pool-light niche?
No. It fits compatible full-size niches. The niche model, dimensions, voltage, and mounting configuration must be verified before ordering.
Can this replace a 400-watt Amerlite fixture?
Possibly, but the circuit rating, fixture specifications, niche compatibility, and electrical requirements must be confirmed by a qualified professional before changing wattage.
Can the incandescent bulb be replaced?
Yes. Amerlite fixtures are serviceable, and the lamp can be replaced when the fixture is correctly removed, inspected, and resealed.
Can the factory cord be shortened or spliced?
The cord should not be spliced underwater. Choose the correct factory cord length and follow all Pentair and electrical-code requirements.
Can colored lens covers be added?
Yes. Compatible snap-on colored lens covers are available separately.
Can this fixture be used in a saltwater pool?
Amerlite fixtures may be used in compatible freshwater pool applications with elevated salt levels when installed and maintained according to Pentair requirements. Confirm the current saltwater limitations before installation.
Is professional installation required?
Yes. Underwater pool lighting involves high-risk electrical work and s
