Product Overview

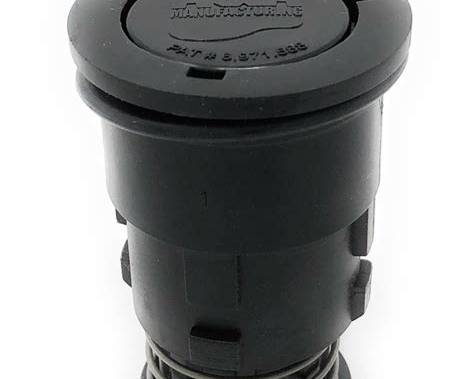

The Pentair 236704 Black G2 Series Retro Cleaning Head Internal is a genuine replacement and upgrade component designed for compatible Pentair / A&A Style 2 in-floor pool cleaning systems.
Part number 236704 upgrades an existing Style 2 cleaning head to the newer G2 Retro Internal configuration with variable flow orifices, helping maintain proper water distribution and cleaning performance throughout the pool's in-floor cleaning zones.
The black finish is ideal for pools with dark interior finishes where the cleaning head needs to blend more naturally into the pool floor, steps, or benches.
Key Features
- Genuine Pentair / A&A replacement component
- Manufacturer Part Number: 236704
- A&A Part Number: 566979
- G2 Series retro cleaning head internal
- Designed as an upgrade from Style 2
- Variable flow orifice design
- Non-Venturi G2 configuration
- Black finish
- Designed for compatible Pentair and A&A in-floor cleaning systems
- Helps restore proper cleaning-zone water flow
- Suitable for pool floors, steps, benches, and other compatible in-floor locations
- Durable engineered construction for submerged pool applications
- Replacement internal rather than complete floor fitting assembly
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair |
| Product Line | A&A / Pentair In-Floor Cleaning |
| Manufacturer Part Number | 236704 |
| A&A Part Number | 566979 |
| Product Type | G2 Retro Cleaning Head Internal |
| Series | G2 / Gamma Series 2 |
| Original System Style | Style 2 |
| Configuration | Non-Venturi |
| Flow Type | Variable Flow Orifice |
| Color | Black |
| Application | In-Floor Pool Cleaning System |
| Installation | Existing Compatible Style 2 Floor Fitting |
| UPC / GTIN | 818965011609 |
| Quantity | 1 Cleaning Head Internal |
Style 2 to G2 Upgrade
The 236704 G2 Retro Internal is specifically designed to upgrade compatible older Style 2 cleaning-head installations.
Instead of replacing the complete floor fitting installed in the pool shell, the existing Style 2 location can be fitted with the appropriate G2 retro internal.
This makes the 236704 useful for servicing existing Pentair/A&A in-floor cleaning systems where improved or replacement cleaning-head performance is required.
Variable Flow Orifice Design
The G2 Retro Series uses a variable flow orifice configuration to help distribute water through the cleaning head and maintain effective circulation within the cleaning zone.
Proper cleaning-head flow is important because an in-floor system relies on sequential zones of pressurized water to move dirt and debris toward the pool's main drain or designated collection area.
Maintaining correctly functioning heads helps support:
- Effective debris movement
- Proper zone pressure
- Better floor circulation
- More consistent chemical distribution
- More uniform pool-water temperature
Compatibility
The Pentair 236704 is intended for compatible:
- Pentair in-floor cleaning systems
- A&A Manufacturing in-floor cleaning systems
- Style 2 cleaning-head installations being upgraded to G2 Retro internals
- Gamma Series 2 / G2 compatible applications
Always verify the existing cleaning-head style before ordering. Pentair offers several similar G2 and G2V replacement heads that are not interchangeable in every installation.
Available G2 Retro Colors
Pentair offers the G2 Retro Internal with variable flow orifices in multiple colors:
| Part Number | Color |
|---|---|
| 236704 | Black |
| 236683 | Dark Gray |
| 236671 | White |
| 236612 | Light Gray |
| 236706 | Dark Blue |
Important G2 vs. G2V Note
The 236704 is a G2 Retro Internal, not a G2V Venturi internal.
The G2V series uses separate part numbers and has different system design requirements. Confirm whether the existing installation requires G2 or G2V before ordering.
Installation Notes
Before removing or installing an in-floor cleaning head:
- Turn off the pool pump
- Completely relieve system pressure
- Verify the correct cleaning-head style
- Use the proper Pentair/A&A removal and installation tool
- Inspect the floor fitting and sealing surfaces for damage
- Confirm the replacement head locks securely into position
The compatible Pentair/A&A Style 2 / G2 installation and removal tool is commonly identified as Part Number 229642.
Frequently Asked Questions
What is Pentair 236704?
It is a black G2 Retro cleaning-head internal with variable flow orifices for compatible Pentair/A&A in-floor pool cleaning systems.
Does 236704 replace a Style 2 cleaning head?
Yes. Pentair specifically categorizes the G2 Retro series as an upgrade from Style 2.
Is this the complete floor fitting?
No. The 236704 is the cleaning-head internal. The permanent floor fitting installed in the pool is a separate component.
Is 236704 a Venturi cleaning head?
No. This is the standard G2 non-Venturi retro internal. G2V Venturi heads use different part numbers.
What color is 236704?
Black.
What is the A&A equivalent part number?
The corresponding A&A item number is 566979.
