Product Overview
The Pentair IntelliCenter 523969 is a high-capacity pool and spa automation system designed for dual-equipment pool and spa installations. Unlike a PS shared-equipment system, the i10D configuration is designed for applications where the pool and spa operate with separate equipment sets, providing greater flexibility for larger and more advanced installations.
This complete IntelliCenter package combines the Load Center, i10D Personality Kit, IntelliChlor Plus40 Salt Chlorine Generator, integrated salt-system transformer, and High Power Wireless connectivity into one centralized automation system.
The i10D configuration provides expanded relay capacity for controlling multiple pumps, heaters, lights, water features, blowers, and other auxiliary equipment.
Key Features
- i10D Dual Equipment configuration
- Designed for pool and spa systems with separate equipment
- IntelliCenter Load Center
- 10 relay-controlled circuits
- Includes IntelliChlor Plus40 Salt Chlorine Generator
- Salt cell rated for pools up to 40,000 gallons
- Produces up to 1.40 lbs. of chlorine per 24 hours at 100% output
- Integrated IntelliChlor salt-system transformer
- Includes High Power Wireless
- Color touchscreen interface
- Remote monitoring and control through compatible Pentair applications
- Programmable schedules
- Control of compatible variable-speed pumps
- Heater control
- Pool and spa lighting control
- Water-feature control
- Auxiliary equipment control
- Expandable IntelliCenter platform
- Valve actuators are not included

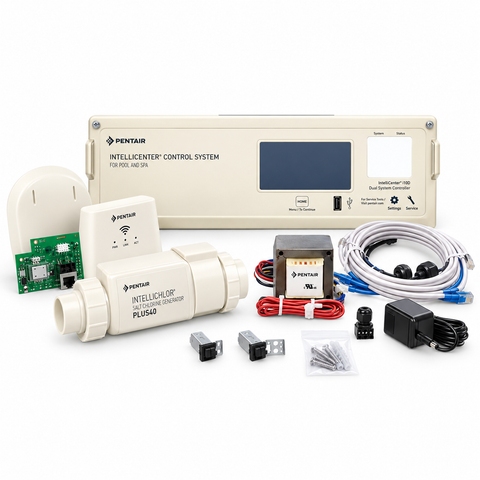

What's Included
- Pentair IntelliCenter Load Center
- i10D Personality Kit
- i5P motherboard
- i10D daughter card
- Relay configuration supporting up to 10 circuits
- IntelliChlor Plus40 Salt Chlorine Generator
- IntelliChlor salt chlorine generator transformer
- High Power Wireless connectivity
- IntelliCenter outdoor control panel
- Required IntelliCenter system electronics
Not Included
- Valve actuators are not included
- Additional expansion hardware unless otherwise specified
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair |
| Product Line | IntelliCenter |
| Manufacturer Part Number | 523969 |
| System Type | Pool & Spa Automation |
| Personality | i10D |
| Equipment Configuration | Dual Equipment |
| Enclosure | Load Center |
| Relay Capacity | 10 Circuits |
| Salt Chlorination | Included |
| Salt Cell | IntelliChlor Plus40 |
| Pool Capacity | Up to 40,000 Gallons |
| Chlorine Production | Up to 1.40 lbs./24 hr at 100% |
| Salt Transformer | Included |
| High Power Wireless | Included |
| Valve Actuators | Not Included |
| Control Interface | Color Touchscreen |
| Installation | Outdoor Equipment Pad |
| Application | Residential Pool & Spa |
What Does i10D Mean?
The “D” in i10D stands for Dual Equipment.
This configuration is different from an i10PS shared-equipment system. An i10D is intended for installations where the pool and spa have separate circulation or heating equipment, allowing the automation system to operate each body of water more independently.
This makes the i10D particularly useful for larger custom pools and spas that may have:
- Separate pool and spa filtration pumps
- Separate heaters
- Multiple variable-speed pumps
- Independent pool and spa circulation
- Multiple lighting circuits
- Water features
- Spa blowers
- Booster pumps
- Landscape or equipment-pad auxiliary circuits
i10D vs. i10PS
| Feature | 523969 i10D | 523965 i10PS |
|---|---|---|
| Configuration | Dual Equipment | Shared Equipment |
| Load Center | Yes | Yes |
| Relay Capacity | 10 | 10 |
| IntelliChlor Plus40 | Yes | Yes |
| Salt Transformer | Yes | Yes |
| High Power Wireless | Yes | Yes |
| Valve Actuators | No | 2 Included |
| Typical Application | Separate Pool/Spa Equipment | Shared Pool/Spa Equipment |
The most important difference is the equipment configuration. Choose the i10D when the pool and spa operate with separate equipment and the i10PS when the pool and spa share major equipment.
IntelliChlor Plus40 Salt Chlorination
The included IntelliChlor Plus40 Salt Chlorine Generator is designed for pools up to 40,000 gallons.
At 100% output, the Plus40 produces up to approximately 1.40 pounds of chlorine per 24 hours.
The IntelliChlor system converts dissolved salt into chlorine and integrates directly with the IntelliCenter automation platform, allowing pool owners and service professionals to manage automation and chlorine production within the Pentair ecosystem.
Replacement / Updated Part Number
Pentair 523969 replaces legacy IntelliCenter part number 523908.
The newer 523969 bundle incorporates Pentair's updated IntelliChlor Plus40 Salt Chlorine Generator while retaining the i10D dual-equipment IntelliCenter configuration.
Frequently Asked Questions
Does Pentair 523969 include a salt cell?
Yes. It includes the IntelliChlor Plus40 Salt Chlorine Generator.
Does it include the IntelliChlor transformer?
Yes. The required salt chlorine generator transformer is included in the Load Center configuration.
Does 523969 include valve actuators?
No. Pentair specifies 523969 without the two IntelliValve valve actuators.
What size pool does the salt cell support?
The included IntelliChlor Plus40 is rated for pools up to 40,000 gallons.
How much chlorine does the Plus40 produce?
The Plus40 produces up to approximately 1.40 lbs. of chlorine per 24 hours at 100% output.
What is the difference between i10D and i10PS?
The i10D is designed for dual-equipment installations, while the i10PS is designed for pool/spa systems sharing major equipment.
Does it include wireless connectivity?
Yes. The 523969 bundle includes High Power Wireless connectivity.
Can it control variable-speed pumps?
Yes. IntelliCenter is designed to integrate with compatible Pentair variable-speed pumps and other supported pool equipment.
What older part number does 523969 replace?
Pentair 523969 replaces 523908.
