Product Overview
The Pentair IntelliCenter 523965 is a complete high-capacity automation package designed for pool and spa combinations with shared equipment. It combines Pentair’s IntelliCenter Load Center, i10PS Personality Kit, IntelliChlor Plus40 salt chlorine generator, salt-system transformer, high-power wireless connectivity, and two valve actuators into one integrated control system.
The i10PS configuration provides 10 relay-controlled circuits, consisting of nine auxiliary circuits plus one dedicated filter-pump circuit. This makes the system well suited for more complex residential installations with multiple lights, pumps, water features, heaters, blowers, landscape features, or other auxiliary equipment.
Key Features
- i10PS shared-equipment pool/spa configuration
- Designed for pool and spa systems sharing filtration and heating equipment
- 10 total relay-controlled circuits
- 9 auxiliary circuits plus 1 dedicated filter-pump circuit
- Includes IntelliChlor Plus40 salt chlorine generator
- Includes integrated salt chlorine generator transformer

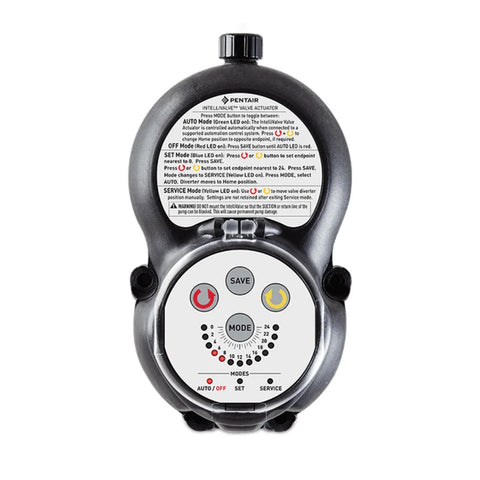

- Includes 2 valve actuators
- Includes High Power Wireless connectivity

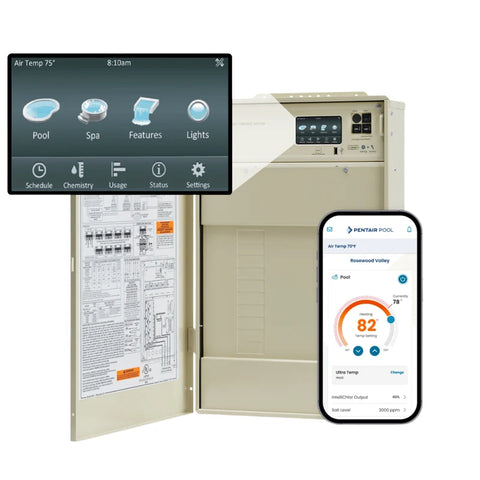

- IntelliCenter color touchscreen interface
- Remote monitoring and control capability
- Programmable schedules and equipment functions
- Controls compatible pumps, heaters, lighting, valves, water features and auxiliary equipment
- Expandable IntelliCenter automation architecture
- Suitable for advanced residential pool and spa equipment pads
Pentair currently identifies 523965 as the i10PS IntelliCenter Load Center system with ICL Plus40, salt transformer, two valve actuators, and High Power Wireless.

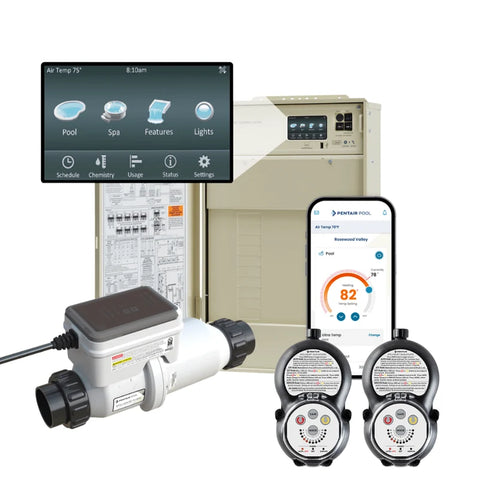

What’s Included
- Pentair IntelliCenter Load Center
- i10PS Personality Kit
- Relay configuration supporting up to 10 circuits
- IntelliChlor Plus40 salt chlorine generator cell
- IntelliChlor salt-system transformer
- 2 valve actuators
- High Power Wireless connectivity components
- Outdoor IntelliCenter control panel
- Required control electronics and system components
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair |
| Product Line | IntelliCenter |
| Manufacturer Part Number | 523965 |
| System Type | Pool & Spa Automation |
| Personality | i10PS |
| Body of Water Configuration | Pool/Spa Shared Equipment |
| Enclosure | Load Center |
| Total Relay Circuits | 10 |
| Auxiliary Circuits | 9 |
| Dedicated Filter Pump Circuit | 1 |
| Salt Chlorination | Included |
| Salt Cell | IntelliChlor Plus40 |
| Salt Transformer | Included |
| Valve Actuators | 2 Included |
| Wireless Connectivity | High Power Wireless Included |
| Installation Type | Outdoor Equipment Pad |
| Application | Residential Pool & Spa |
Pentair specifies the i10PS personality as a shared-equipment configuration with additional relay capability beyond the standard i5PS and i8PS systems.
What Does i10PS Mean?
The PS designation identifies the system as a pool/spa shared-equipment configuration. It is designed for installations where the pool and spa share equipment such as the main circulation pump, filter and heater.
The i10 designation provides significantly more equipment-control capacity than the i5PS and i8PS systems.
- i5PS: 5 relay circuits
- i8PS: 8 relay circuits
- i10PS: 10 relay circuits
The i10PS provides nine auxiliary circuits plus one dedicated filter-pump relay.

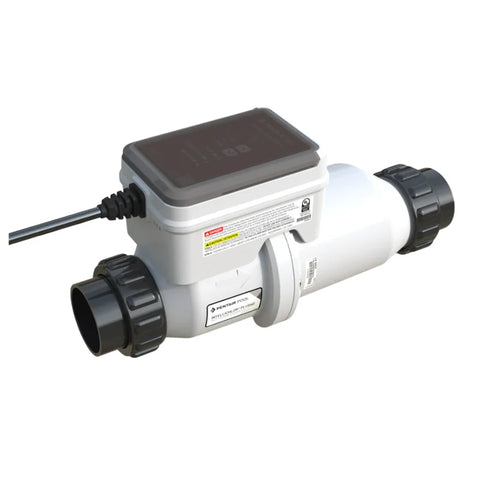

IntelliChlor Plus40 Included
The 523965 includes Pentair’s IntelliChlor Plus40 salt chlorine generator, allowing the IntelliCenter system to integrate pool automation and salt-chlorine production into a single control platform. The system also includes the required salt chlorine generator transformer.
The IntelliChlor system converts dissolved salt into chlorine through electrolysis and allows chlorine-output adjustments directly through the Pentair control ecosystem.
Ideal Applications
The IntelliCenter 523965 is a strong fit for installations requiring control of numerous pool and spa functions, such as:
- Variable-speed filtration pump
- Pool/spa heater
- Pool lighting
- Spa lighting
- Waterfalls
- Deck jets
- Booster pumps
- Spa blowers
- Landscape lighting
- Additional water features
- Automated pool/spa valves
- Salt chlorination
The additional circuit capacity makes the i10PS especially useful for larger or more feature-rich pool and spa installations.
Frequently Asked Questions
Does Pentair 523965 include a salt cell?
Yes. It includes an IntelliChlor Plus40 salt chlorine generator cell.
Does it include the IntelliChlor transformer?
Yes. The required salt chlorine generator transformer is included.
How many relays does the i10PS provide?
The i10PS supports 10 relay-controlled circuits: nine auxiliary circuits and one dedicated filter-pump circuit.
Does it include valve actuators?
Yes. The 523965 package includes two valve actuators.
Is 523965 for a pool only?
No. The i10PS configuration is designed for a pool and spa combination using shared equipment.
Does it include wireless connectivity?
Yes. Pentair currently lists 523965 as including High Power Wireless connectivity.
Can it control Pentair variable-speed pumps?
Yes. IntelliCenter is designed to integrate compatible Pentair variable-speed pumps along with heaters, lighting, salt systems, valve actuators and other pool equipment.
Replacement / Updated Part Number Information
Pentair lists 523965 as the newer replacement for legacy IntelliCenter 521908 in its updated IntelliCenter/IntelliChlor bundle lineup.
