Product Overview

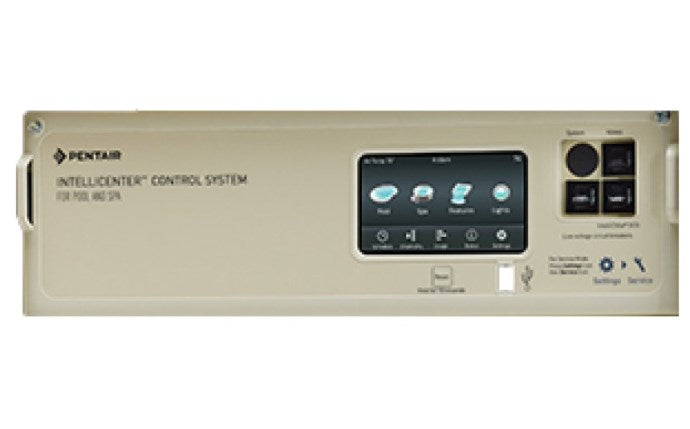

Expand or repair a compatible Pentair IntelliCenter automation system with the Pentair 521977Z i8P Personality Card Circuit Board. This genuine Pentair replacement expansion board connects to the IntelliCenter i5P main circuit board and converts the system into an i8P single-body pool configuration.
A standard i5P system supports one filter-pump circuit and four auxiliary circuits. Adding the i8P personality card increases the system’s capacity to eight total circuits, providing three additional auxiliary functions for compatible pool equipment. These added circuits can be configured to control equipment such as pool lights, water features, booster pumps, sanitizing equipment, landscape lighting, or other approved accessories.
The 521977Z can be used to upgrade an existing i5P system or replace a damaged i8P personality expansion card. It does not replace the primary IntelliCenter motherboard and cannot operate as a standalone automation controller.
Key Features
- Genuine Pentair OEM circuit board
- Designed for IntelliCenter automation systems
- Upgrades an i5P system to an i8P configuration
- Supports a single body of water
- Expands system capacity from five to eight circuits
- Adds three configurable auxiliary circuits
- Connects directly to the existing i5P main board
- Suitable for system upgrades and board replacement
- Supports IntelliCenter schedules and equipment assignments
- Works with compatible pumps, heaters, lights, and accessories
- Retains IntelliCenter touchscreen and app-based control
- Factory-designed connectors simplify proper installation
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair |
| Product Series | IntelliCenter |
| Manufacturer Part Number | 521977Z |
| SKU | 521977Z |
| UPC / Barcode | Confirm From Product Packaging |
| Product Type | Personality Expansion Circuit Board |
| System Configuration | i8P |
| Body Configuration | Single-Body Pool |
| Total Supported Circuits | 8 |
| Base Main Board Required | IntelliCenter i5P |
| Additional Circuit Capacity | 3 Auxiliary Circuits |
| Installation Location | IntelliCenter Load Center or Power Center |
| Main Motherboard Included | No |
| Relays Included | No |
| Enclosure Included | No |
System Compatibility
The 521977Z is intended for compatible Pentair IntelliCenter systems using an i5P main circuit board. It mounts as a daughter or expansion card and allows the controller to recognize the additional i8P circuit capacity.
This card is not intended for i5PS, i8PS, i10P, i10PS, dual-body, or other configurations unless specifically approved by Pentair. Verify the existing personality type, main-board revision, enclosure, firmware, and equipment requirements before ordering.
Installation Information
Disconnect all power at the circuit breaker before opening the IntelliCenter enclosure. Installation requires access to line-voltage equipment and should be performed by a qualified pool automation technician or licensed electrician.
The card must be mounted in the correct position and connected to the designated main-board header. After installation, the IntelliCenter system may require hardware detection, configuration, circuit naming, equipment reassignment, schedule review, or firmware updates.
Take photographs of the original wiring and system configuration before service. Never install or remove the board while the automation system is energized. Static electricity, moisture, incorrect connector alignment, or contact with line-voltage wiring can permanently damage the circuit board.
Package Contents
- One Pentair IntelliCenter i8P personality card
- Factory-installed board connectors and electronic components
The i5P main board, relays, load center, touchscreen, transformer, wiring, sensors, valve actuators, and other automation components are not included.
Warranty Information
Pentair manufacturer warranty coverage is subject to current warranty terms, proof of purchase, proper system compatibility, and professional installation requirements. Damage caused by incorrect installation, moisture, electrical surges, improper wiring, static discharge, incompatible firmware, or unauthorized modification may not be covered.
Confirm Before Ordering
Verify that the existing system is a Pentair IntelliCenter i5P single-body configuration and that an i8P upgrade or replacement card is required. Do not order solely by comparing the appearance of the circuit board.
