Product Overview

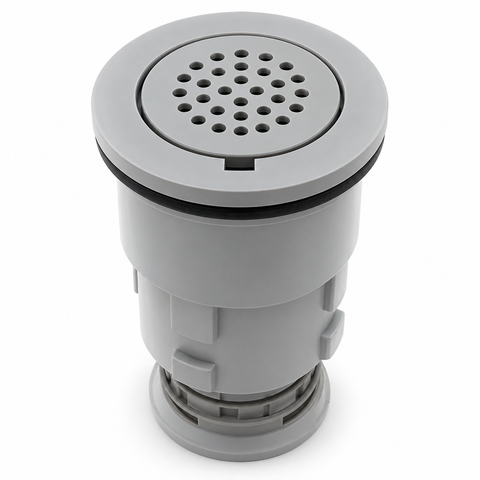

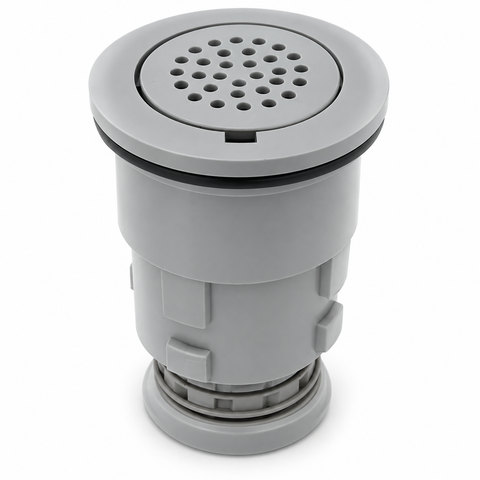

The Pentair 236702 Light Gray G2V Retro Fit Internal is a genuine Pentair/A&A replacement in-floor cleaning head designed for compatible Style 2 / Gamma Series 2 pool cleaning systems.
The G2V Venturi design is engineered to provide effective water movement and circulation through the pool's in-floor cleaning zones. Part 236702 installs into the compatible existing Style 2 floor fitting, allowing a worn, damaged, or missing cleaning-head internal to be replaced without removing the permanent floor fitting.
The light gray finish provides a clean appearance in pools with gray, pebble, quartz, plaster, and other coordinating interior finishes.
Key Features
- Genuine Pentair / A&A replacement component
- Manufacturer Part Number: 236702
- Legacy A&A Part Number: 567824
- G2V / Gamma 2 Venturi cleaning-head internal
- Designed for compatible Style 2 systems
- Light gray finish
- Venturi-style cleaning-head design
- Fits existing compatible Style 2 floor fittings
- Helps restore proper in-floor cleaning performance
- Supports circulation and debris movement
- Ideal replacement for worn, sticking, damaged, or missing cleaning heads
- No electrical connections required
- Designed for submerged in-floor pool applications
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair / A&A Manufacturing |
| Manufacturer Part Number | 236702 |
| Legacy A&A Part Number | 567824 |
| Product Type | In-Floor Cleaning Head Internal |
| Series | G2V / Gamma Series 2 Venturi |
| Style | Style 2 |
| Configuration | Venturi Retro Internal |
| Color | Light Gray |
| Application | In-Floor Pool Cleaning |
| Installation | Compatible Style 2 Floor Fitting |
| UPC / GTIN | 818965017519 |
| Quantity | 1 Cleaning Head Internal |
Style 2 Compatibility
The 236702 is designed for compatible Style 2 / Gamma Series 2 in-floor cleaning systems.
It replaces the removable cleaning-head internal while retaining the existing compatible floor fitting installed in the pool shell.
Pentair currently lists the G2V Retro Internals separately from its standard G2 variable-flow heads, with 236702 specifically designated as the Light Gray G2V version.
G2V Venturi Design
The G2V designation identifies this model as the Venturi version of the Gamma Series 2 cleaning head.
The Venturi system uses water movement through the cleaning head to enhance circulation around the head and assist with moving debris across the pool surface.
When multiple heads operate sequentially through the pool's zone valve, they help direct dirt and debris toward the main drain or other collection area.
Properly operating in-floor heads can help improve:
- Pool-floor circulation
- Debris movement
- Distribution of sanitized water
- Temperature distribution
- Cleaning of steps and benches
- Reduction of stagnant areas
G2V vs. Standard G2
The 236702 is a G2V Venturi cleaning head, not the standard G2 variable-flow version.
For a Light Gray standard G2 Retro Internal, Pentair lists 236612.
| Type | Light Gray Part Number |
|---|---|
| G2 Variable Flow Retro Internal | 236612 |
| G2V Venturi Retro Internal | 236702 |
These are different cleaning-head configurations, so the existing system should be identified before ordering.
Available G2V Colors
Pentair currently offers the G2V Retro Internal in multiple colors:
| Part Number | Color |
|---|---|
| 236744 | Black |
| 236703 | Dark Gray |
| 236701 | White |
| 236702 | Light Gray |
| 236786 | Dark Blue |
Installation Notes
Before replacing the cleaning head:
- Turn off the pool pump and circulation system.
- Relieve system pressure.
- Confirm the existing installation uses a compatible Style 2 fitting.
- Remove the old cleaning-head internal using the appropriate Style 2 / G2 removal tool.
- Inspect the floor fitting for debris or damage.
- Install the replacement G2V internal and make sure it locks securely into place.
- Restart the system and verify proper operation.
The commonly used installation/removal tool for Style 2 / Gamma Series 2 heads is Pentair Part Number 229642.
Frequently Asked Questions
What is Pentair 236702?
The 236702 is a Light Gray G2V Venturi Retro Internal for compatible Pentair/A&A Style 2 in-floor pool cleaning systems.
What is the old A&A part number?
The legacy A&A Manufacturing number is 567824.
Does 236702 fit Style 2 systems?
Yes. It is designed as a G2V replacement/upgrade for compatible Style 2 / Gamma Series 2 installations.
Is this a complete cleaning-head assembly?
No. 236702 is the removable internal cleaning head. The permanent floor fitting is a separate component.
Is 236702 the same as 236612?
No.
236702 = Light Gray G2V Venturi Retro Internal
236612 = Light Gray G2 Variable Flow Retro Internal
What color is 236702?
Light Gray.
