Product Overview

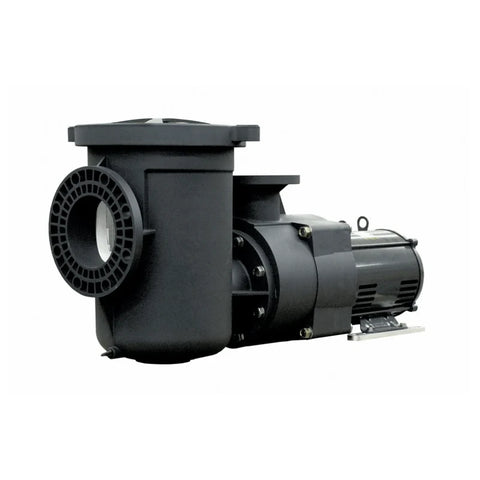

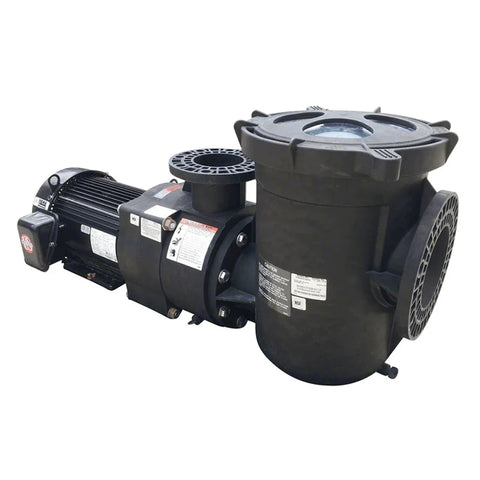

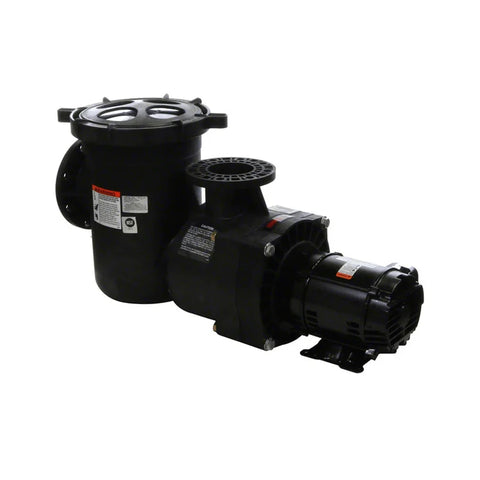

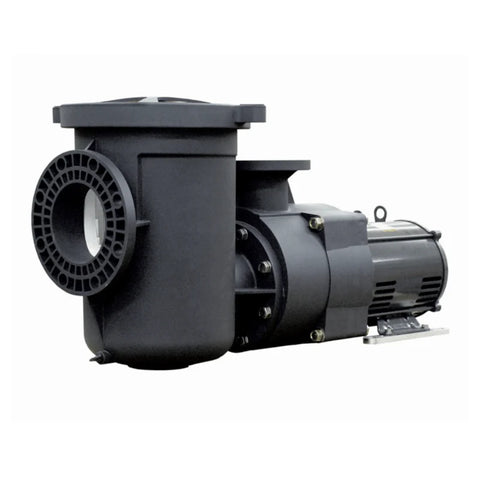

The Pentair 340238 EQ1000 EQ Series Commercial Plastic Pool Pump is a high-performance 10 HP pump engineered for demanding commercial swimming pools, aquatic facilities, and high-flow water circulation systems. This configuration features a 230V single-phase premium-efficiency motor and includes the EQ Series hair and lint strainer.
The EQ Series combines strong hydraulic performance with lightweight, non-corrosive plastic construction. Its efficient closed-impeller design helps reduce motor loading while providing reliable operation in demanding commercial applications.
Key Features
10 HP Commercial Performance
Designed for high-flow commercial swimming pools and other demanding water circulation systems.
230V Single-Phase Motor
Equipped with a 10 HP, 230V, 60 Hz single-phase motor rated at 40 amps.
Premium-Efficiency Motor
NEMA premium-grade efficiency motor provides dependable commercial-duty operation.
Hair and Lint Strainer Included
Includes the EQ Series strainer pot with a large-capacity basket and clear Cam and Ramp lid for convenient inspection and maintenance.
Corrosion-Resistant Plastic Construction
Commercial-grade non-corrosive plastic components provide durability while reducing weight compared with traditional metal commercial pumps.
Large Commercial Connections
Features 6-inch suction and 4-inch discharge connections for high-flow commercial plumbing systems.
Benefits
- High-performance 10 HP commercial circulation
- 230V single-phase operation
- Integrated hair and lint strainer
- Corrosion-resistant commercial-grade construction
- Efficient closed-impeller design
- Self-priming configuration with strainer
- Easy-access strainer basket and clear lid
- Back pull-out design simplifies pump servicing
- Lightweight compared with traditional metal commercial pumps
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Series | EQ Series |
| Model | EQ1000 |
| Manufacturer Part Number / SKU | 340238 |
| UPC / Barcode | 788379829971 |
| Product Type | Commercial Pool Pump |
| Horsepower | 10 HP |
| Voltage | 230V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Full Load Amps | 40.0A |
| Service Factor | 1.15 |
| Service Factor HP | 11.5 HP |
| Motor Enclosure | Open Drip Proof (ODP) |
| Suction Connection | 6 in. |
| Discharge Connection | 4 in. |
| Strainer Included | Yes |
| Pump Construction | Commercial-Grade Plastic |
| Approx. Product Weight | 179 lb |
| Shipping Dimensions | 22 x 29.5 x 36 in. |
| Shipping Weight | Approx. 260 lb |
| Application | Commercial Pool / Water Circulation |
| Warranty | 1-Year General Warranty |
Installation Information
The Pentair 340238 requires a properly sized 230V single-phase electrical supply, commercial plumbing, appropriate motor protection, grounding, and bonding.
The pump should be installed in a cool, dry, well-ventilated equipment area with adequate clearance for motor and wet-end servicing. Pentair requires external thermal overload protection for EQ Series motors.
Installation should be completed by a qualified commercial pool professional and licensed electrician where required.
Confirm Before Ordering
Verify the electrical and hydraulic requirements before purchase.
This model is specifically:
- Pentair 340238
- EQ1000
- 10 HP
- 230V
- Single phase
- 40 amps
- Includes hair and lint strainer
- 6-inch suction / 4-inch discharge
Do not confuse this model with 340237, which is the EQ1000 10 HP single-phase configuration supplied without the strainer pot.
Warranty Information
The Pentair 340238 carries a 1-year general warranty. Warranty eligibility and coverage may depend on proper installation, application, purchase channel, proof of purchase, and Pentair's current warranty terms.
Customer Q&A
Q: Does the Pentair 340238 include a strainer?
Yes. This model includes the EQ Series hair and lint strainer assembly.
Q: Is this pump three phase?
No. The 340238 is a 230V single-phase commercial pump.
Q: How many amps does the motor draw?
The listed full-load amperage is 40 amps at 230V.
Q: What size plumbing connections does it use?
The pump uses a 6-inch suction and 4-inch discharge configuration.
Q: What is the difference between 340238 and 340237?
Both are 10 HP EQ1000 single-phase configurations. The 340238 includes the strainer pot, while the 340237 is supplied without the strainer.
