Product Overview

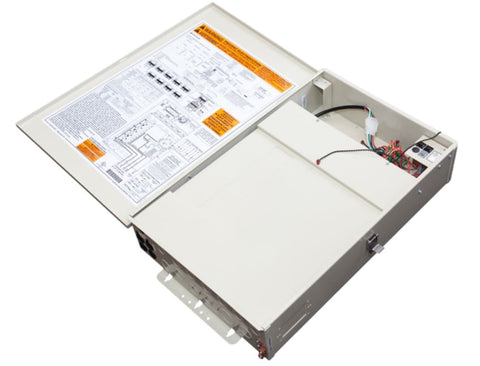

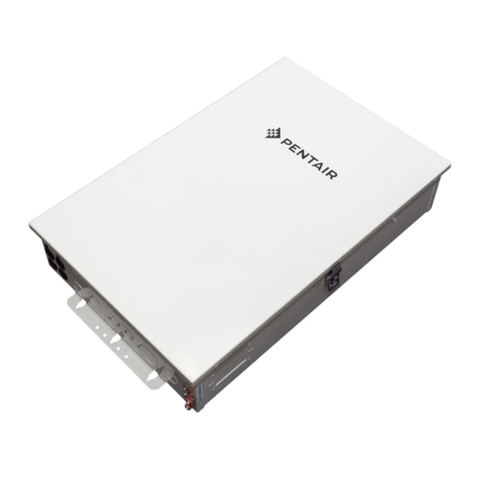

The Pentair 522041 IntelliCenter Load Center with IntelliChlor Transformer is the foundation enclosure for a Pentair IntelliCenter pool and spa automation system. This load center provides the central wiring and power distribution location for pool equipment control, automation components, breakers, relays, and IntelliChlor salt chlorine generator support.
Designed for advanced pool and spa automation installations, this load center includes a built-in IntelliChlor transformer, 150 amp sub-panel, and five 25 amp / 3 HP relays. It is ideal for new IntelliCenter builds, automation upgrades, and equipment pad remodels where a clean, organized control center is needed.
Ideal For
Pool and spa automation installations using Pentair IntelliCenter where a load center with built-in IntelliChlor transformer and relay capacity is required.
Key Features
- Genuine Pentair IntelliCenter load center
- Built-in IntelliChlor salt chlorine generator transformer
- Includes 150 amp sub-panel
- Holds up to eight 1" breakers
- Includes five 25 amp / 3 HP relays
- 110/240V transformer with secondary-side circuit protection
- Designed for pool and spa automation layouts
- Supports high-voltage and low-voltage wiring organization
- Multiple conduit knockouts for installation flexibility
- GFCI side knockout included
- Outdoor equipment-pad enclosure design
- Must be paired with the correct IntelliCenter personality kit for full system functionality
Benefits
The Pentair 522041 load center gives builders, electricians, and pool professionals a centralized enclosure for IntelliCenter automation components and pool equipment wiring. The built-in IntelliChlor transformer makes it salt-system ready for compatible Pentair IntelliChlor cells, while the included relays allow control of major pool functions such as pumps, lighting, heaters, water features, and auxiliary equipment.
This setup helps reduce wiring clutter, improves service access, and creates a professional equipment pad layout for modern pool and spa automation.
Important System Note
This is the IntelliCenter load center with IntelliChlor transformer. It is not a complete stand-alone automation system by itself. A compatible IntelliCenter personality kit, control components, user interface, wireless link, valve actuators, IntelliChlor cell, and other accessories may be required depending on the installation.
Always confirm the full equipment layout before ordering.
Compatibility
Designed for use with Pentair IntelliCenter automation systems and compatible Pentair IntelliChlor salt chlorine generator applications.
Commonly used for:
- Pool and spa automation systems
- IntelliCenter system builds
- IntelliCenter upgrades
- Salt-ready automation installations
- New construction equipment pads
- Remodels replacing older automation panels
Confirm the required IntelliCenter personality kit, number of relays, valve actuator needs, salt cell size, breaker layout, and control interface before ordering.
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Product Series | IntelliCenter |
| Product Type | Automation Load Center with IntelliChlor Transformer |
| Manufacturer Part Number | 522041 |
| SKU | 522041 |
| Barcode / UPC | Confirm before publishing |
| Application | Pool and spa automation |
| Salt System Support | Built-in IntelliChlor transformer |
| Sub-Panel Rating | 150 amp |
| Breaker Capacity | Up to eight 1" breakers |
| Included Relays | Five 25 amp / 3 HP relays |
| Transformer | 110/240V with secondary-side circuit protection |
| Enclosure Type | Outdoor load center / automation enclosure |
| Wiring Support | High-voltage and low-voltage wiring |
| Conduit Knockouts | Multiple knockout locations, including GFCI side knockout |
| Approximate Footprint | 26" H x 17" W x 5-1/4" D |
| Compatible Automation Platform | Pentair IntelliCenter |
| OEM / Aftermarket | Genuine OEM Pentair |
| Professional Installation | Required / strongly recommended |
What’s Included
- IntelliCenter load center enclosure
- Built-in IntelliChlor transformer
- 150 amp sub-panel
- Five 25 amp / 3 HP relays
- Factory wiring and enclosure components included with the load center
Not Included / May Be Required
- IntelliCenter personality kit
- IntelliChlor salt cell
- Indoor or outdoor control interface, depending on system design
- Wireless link kit, depending on configuration
- Valve actuators
- Breakers
- Sensors or additional automation modules
- Installation hardware or accessories not included in factory packaging
Customer-Facing Q&A
Q: What is Pentair part 522041?
A: Pentair 522041 is an IntelliCenter load center with a built-in IntelliChlor transformer for pool and spa automation systems.
Q: Is this a complete IntelliCenter automation system?
A: No. This is the load center with IntelliChlor transformer. A compatible IntelliCenter personality kit and other system components are required for a complete working automation system.
Q: Does this include the IntelliChlor salt cell?
A: No. This includes the IntelliChlor transformer, but the salt cell is sold separately unless bundled separately.
Q: Does this include relays?
A: Yes. This load center includes five 25 amp / 3 HP relays.
Q: How many breakers can this load center hold?
A: The built-in 150 amp sub-panel can hold up to eight 1" breakers.
Q: Can this be used for a pool and spa combo?
A: Yes, it can be used as part of a pool and spa IntelliCenter automation system when paired with the correct personality kit and required components.
Q: Is professional installation required?
A: Yes. This is an electrical automation load center and should be installed by a qualified pool professional or licensed electrician familiar with pool equipment wiring and local electrical codes.
