Product Overview

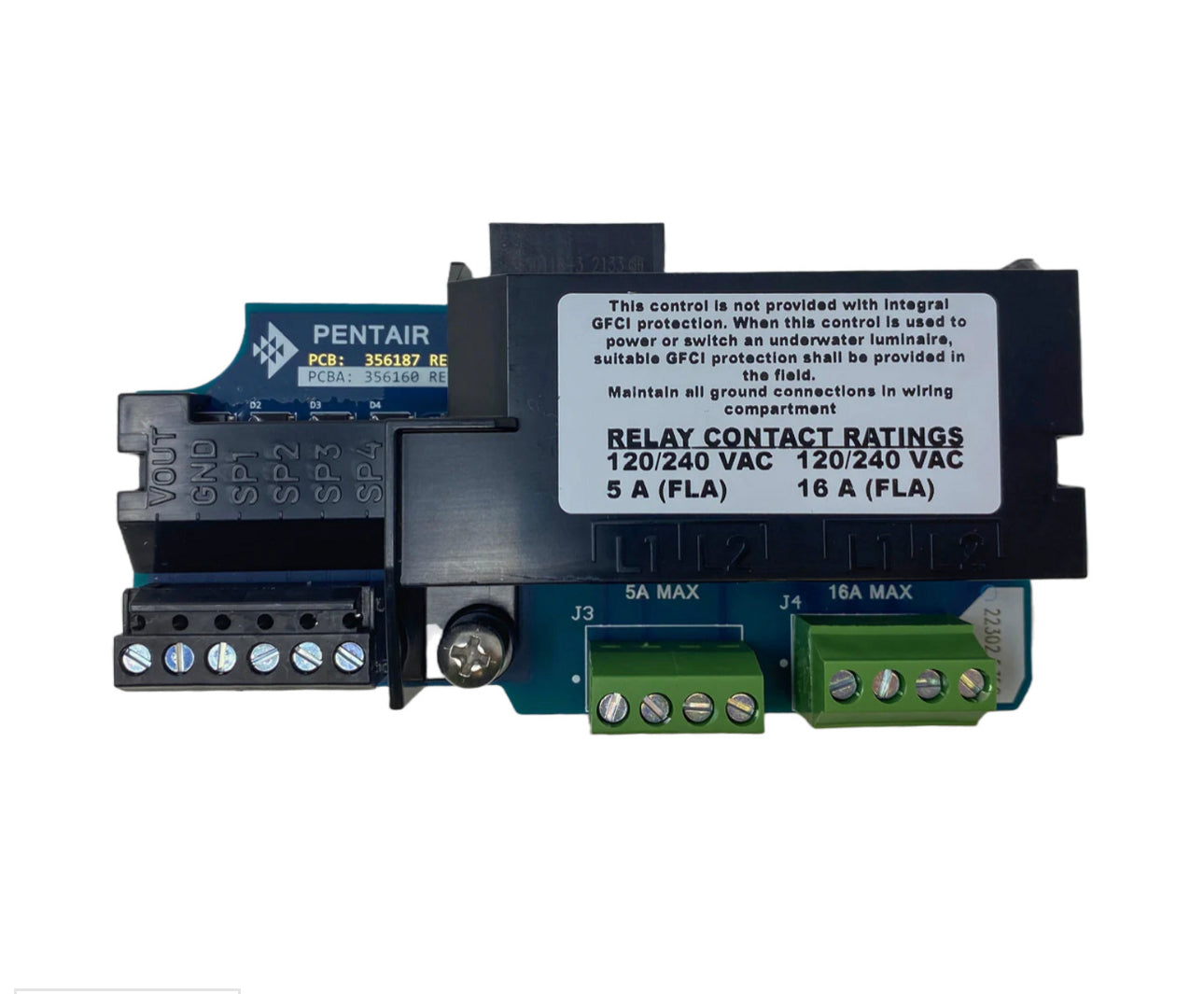

The Pentair 356365Z Relay Control Board Kit is a genuine OEM replacement and expansion component designed for compatible Pentair IntelliFlo3 VSF and Sta-Rite IntelliPro3 VSF variable-speed and flow pool pumps.
This control board adds digital-input and relay functionality to compatible pumps, allowing external automation equipment and other devices to interact with the pump. It can be used as a replacement for an existing relay board or as an upgrade for compatible IntelliFlo3 and IntelliPro3 pumps originally supplied without the relay-control option.
Key Features
Genuine Pentair OEM Kit
Factory-designed relay control board assembly for compatible IntelliFlo3 VSF and IntelliPro3 VSF pumps.
Digital Input Control
Provides four programmable digital inputs for remotely triggering pump speeds through compatible external controls.
Four Speed Inputs
Includes SP1, SP2, SP3, and SP4 digital inputs, each accepting 5-30 VAC/DC control signals.
Low & High Current Relay Connections
Provides separate relay terminals for controlling compatible 115V or 230V equipment.
Complete Control Board Assembly
Supplied as a complete relay control board assembly with the low-voltage terminal and retaining screw.
Benefits
- Genuine Pentair replacement and upgrade component
- Adds external digital-input control to compatible pumps
- Supports four remote speed commands
- Provides low- and higher-current auxiliary equipment control
- Compatible with IntelliFlo3 VSF and IntelliPro3 VSF pumps
- Allows compatible pumps without a relay board to be upgraded
- Integrates with external pool automation and control equipment
- Installs directly into the pump's existing wiring compartment
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Product Type | Relay Control Board Kit |
| Manufacturer Part Number / SKU | 356365Z |
| UPC / Barcode | 788379888688 |
| Compatible Series | IntelliFlo3 VSF / IntelliPro3 VSF |
| Digital Inputs | 4 |
| Digital Input Labels | SP1, SP2, SP3, SP4 |
| Digital Input Voltage | 5-30 VAC/DC |
| Trigger Output | +12V VOUT |
| Low-Voltage Terminal | 6-Pin |
| High-Voltage Relay Terminals | 2 |
| Relay Voltage | 115V / 230V AC |
| Low-Current Relay Maximum | 5A |
| High-Current Relay Maximum | 16A |
| Recommended Wiring | 12 AWG |
| Product Weight | 0.5 lb |
| Shipping Dimensions | 16 x 14 x 12 in. |
| Application | Pool Pump Control / Automation |
| Warranty | Subject to Current Pentair Warranty Terms |
Installation Information
The 356365Z installs inside the wiring compartment of a compatible IntelliFlo3 or IntelliPro3 pump and connects directly to the pump drive.
Pentair specifies that all power must be disconnected at the circuit breaker before servicing the pump. After power is removed, allow at least 60 seconds before opening the wiring compartment because the drive may retain an electrical charge.
The control board provides a six-pin low-voltage terminal for digital control signals and two four-pin terminals for 115V/230V equipment connections.
Because this component interfaces with both low- and line-voltage electrical circuits, installation should be performed by a qualified pool professional or electrician.
Confirm Before Ordering
Pentair part 356365Z is designed for compatible:
- IntelliFlo3 VSF pumps
- IntelliPro3 VSF pumps
- 1.5 HP compatible models
- 3.0 HP compatible models
- Pumps originally equipped with a relay board
- Compatible pumps being upgraded to relay/digital-input control
Some IntelliFlo3 and IntelliPro3 pump configurations already include this relay board from the factory. Verify the pump model and existing equipment configuration before ordering to avoid purchasing an unnecessary add-on board.
Warranty Information
Pentair replacement-part warranty coverage varies according to purchase channel and current warranty terms. Pentair's general limited warranty provides 60 days of parts-only coverage, while qualifying purchases from authorized Pentair online resellers may be eligible for a 1-year parts-only warranty when applicable requirements are met.
Customer Q&A
Q: What does the Pentair 356365Z relay board do?
It adds digital-input and relay-control capability to compatible IntelliFlo3 VSF and IntelliPro3 VSF pumps.
Q: How many digital speed inputs are provided?
The board provides four digital inputs labeled SP1 through SP4.
Q: What voltage can the digital inputs accept?
Each speed input accepts a 5-30 VAC/DC trigger signal.
Q: Can the board control 115V or 230V equipment?
Yes. It includes two relay terminal blocks designed for 115V or 230V AC equipment. One is rated for up to 5A and the other for up to 16A.
Q: Is this the complete pump control drive?
No. This listing is for the relay control board kit only. The pump drive, motor, touchscreen, pump wet end, and other components are not included.
