Product Overview

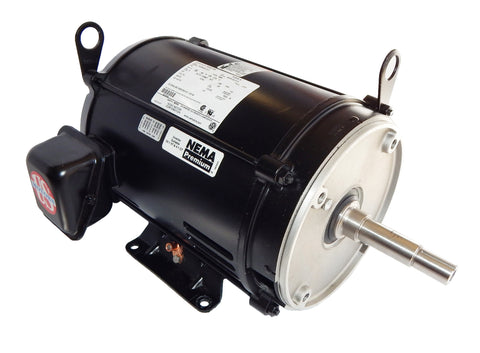

The U.S. Motors EEQK750 is a commercial-grade replacement motor designed specifically for Pentair EQ Series high-flow pool pumps. Built for demanding commercial aquatic applications, this 7.5 HP, 3-phase motor provides reliable performance for large swimming pools, water features, resorts, hotels, and municipal facilities.
The EEQK750 features a special JMZ mounting configuration designed for direct replacement on compatible Pentair EQ Series pumps, making it an ideal solution when rebuilding or replacing worn-out pump motors.
Key Features
- Genuine U.S. Motors / Nidec replacement motor
- Designed for Pentair EQ Series commercial pumps
- 7.5 HP heavy-duty motor
- 208-230/460 Volt, 3-Phase
- 3490 RPM
- 184JMZ special mounting frame
- Continuous-duty rated for commercial applications
- Open Drip Proof (ODP) enclosure
- Class F insulation
- Permanently lubricated ball bearings
- 40°C ambient temperature rating
Specifications
| Specification | Details |
|---|---|
| Brand | U.S. Motors / Nidec |
| Replacement For | Pentair EQ Series Pumps |
| Model Number | EEQK750 |
| Horsepower | 7.5 HP |
| Voltage | 208-230/460V |
| Phase | 3 Phase |
| RPM | 3,490 RPM |
| Frame | 184JMZ |
| Enclosure | ODP (Open Drip Proof) |
| Frequency | 60 Hz |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Duty | Continuous Duty |
| Mounting | Special JMZ Mounting |
Compatible Pentair EQ Series Applications
The EEQK750 is commonly used as a replacement motor for:
- Pentair EQ750 Series Pumps
- Pentair EQK750 Commercial Pumps
- Pentair EQKT750 Pump Applications
- Other compatible Pentair EQ Series 7.5 HP commercial pump configurations
Always verify motor frame, voltage, phase, and pump model before ordering.
Ideal Applications
The U.S. Motors EEQK750 is designed for:
- Commercial swimming pools
- Hotels and resorts
- Water parks
- Municipal aquatic facilities
- Large residential water features
- High-flow circulation systems
Replacement Benefits
Replacing a failed EQ Series motor instead of the entire pump assembly can be a cost-effective way to restore pump performance while keeping the existing hydraulic components in service.
Common replacement situations include:
- Motor bearing failure
- Electrical motor burnout
- Age-related wear
- Commercial pump refurbishment projects
Important Ordering Information
Before installation, confirm:
- Existing motor horsepower
- Voltage configuration
- Single-phase vs three-phase power
- Pump model compatibility
- Mounting style
This motor is intended for qualified electrical installation and should be installed according to local electrical codes.
