Product Overview
The Westlake Pipe & Fittings KIT80601S 8" Wafer Check Valve Contractor Kit provides a complete solution for installing a compact non-return valve in commercial pool, spa, and compatible water-handling piping systems.
This contractor kit combines an 8" 601N Series PVC/EPDM wafer check valve, two PVC Van Stone loose-ring flanges, and a properly sized 304 stainless steel bolt set under one convenient part number. The compact wafer-style valve installs between compatible flanges and requires less piping space than many conventional check valve designs.
An integrated 316 stainless steel spring helps control opening and closing action, reducing water hammer while providing dependable backflow prevention.
Key Features
Complete Contractor Kit

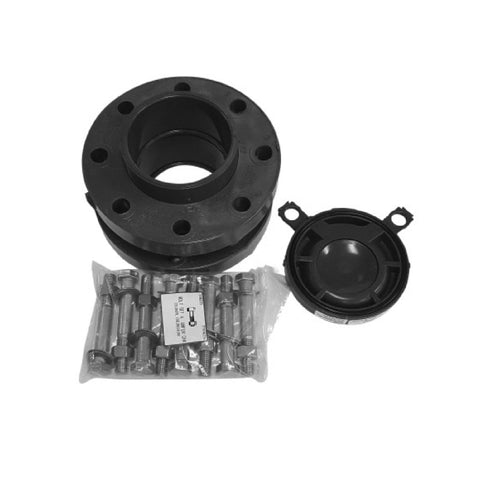

Includes the 8" wafer check valve, two PVC Van Stone loose-ring flanges, and a properly sized 304 stainless steel bolt set.
Compact Wafer Design
Fits between compatible piping flanges while requiring minimal installation space.
PVC/EPDM Construction
Features a durable PVC valve body with EPDM sealing components.
316 Stainless Steel Spring
Spring-assisted operation helps dampen valve opening and closing to reduce water hammer.
Horizontal or Vertical Installation
Designed for operation in either horizontal or vertical piping configurations.
Serviceable Design
Replacement O-rings and repair components are available for ongoing maintenance.
Benefits
- Helps prevent reverse flow through the plumbing system
- Complete installation kit under one part number
- Space-saving wafer-style construction
- Suitable for horizontal or vertical piping
- Spring-assisted operation helps reduce water hammer
- Lightweight compared with many metal valve alternatives
- Includes corrosion-resistant 304 stainless steel installation hardware
- Designed for professional pool, spa, and commercial plumbing applications
Specifications
| Specification | Details |
|---|---|
| Brand | Westlake Pipe & Fittings |
| Product Type | Wafer Check Valve Contractor Kit |
| Series | 601N |
| SKU / Part Number | KIT80601S |
| Valve Size | 8" |
| Valve Style | Wafer Check |
| Valve Material | PVC |
| Seal Material | EPDM |
| Valve Spring | 316 Stainless Steel |
| Bolt Set Material | 304 Stainless Steel |
| Flange Type | PVC Van Stone / Loose Ring |
| Working Pressure | 145 PSI at 73°F, Non-Shock Water |
| Vacuum Rating | 29.9 in. Hg |
| Installation Orientation | Horizontal or Vertical |
| UPC / Barcode | 054554790924 |
| Product Weight | Approximately 28.75 lbs. |
| Shipping Dimensions | 11" x 13.5" x 13.5" |
| Warranty | 3 Years |
| Application | Pool / Spa |
| Manufacturer | Westlake Pipe & Fittings |
Installation Information
The wafer check valve installs between compatible flanges. When installed using appropriate ANSI Schedule 80 flanges and piping, the valve disc can open fully without requiring additional spacers.
Stainless steel bolt and nut threads should be properly lubricated with an appropriate anti-seize compound before installation to help prevent galling.
Installation should follow all applicable plumbing requirements and Westlake Pipe & Fittings installation instructions.
Confirm Before Ordering
- Confirm KIT80601S is the required contractor kit.
- Verify your system requires an 8" wafer check valve.
- Confirm EPDM seals are compatible with the intended water chemistry and application.
- Verify flange and piping compatibility before installation.
- Confirm sufficient clearance for the valve disc and piping configuration.
- KIT80601S includes a 304 stainless steel bolt set.
Warranty Information
This product carries a 3-year general manufacturer warranty. Warranty coverage is subject to Westlake Pipe & Fittings' current warranty terms, proper installation, intended application, and proof of purchase.
Customer Q&A
What is included with KIT80601S?
The kit includes an 8" wafer check valve, two PVC Van Stone loose-ring flanges, and a properly sized 304 stainless steel bolt set.
What seal material does this valve use?
KIT80601S uses EPDM sealing components.
What type of spring is used?
The valve uses a 316 stainless steel spring to help control opening and closing action.
Can the valve be installed vertically?
Yes. The 601N Series wafer check valve is designed for both horizontal and vertical operation.
What is the working pressure rating?
The valve is rated for 145 PSI non-shock water at 73°F.
