Product Overview

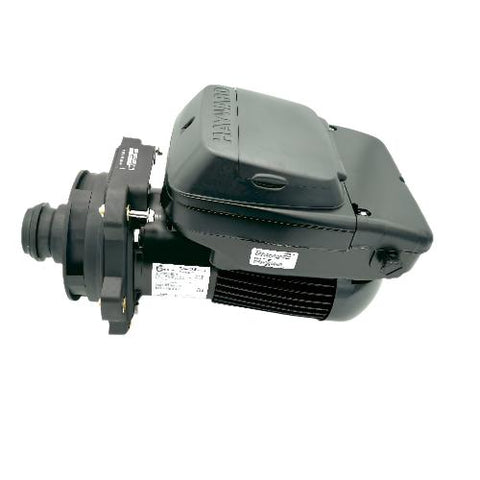

The Hayward SPX3206Z1VSPE Power End Assembly is a genuine Hayward replacement power-end assembly designed for select TriStar VS 950, TriStar VS G3, and EcoStar variable-speed pool pumps.
This complete power-end assembly is ideal when the existing wet end, pump housing, strainer basket, lid, and plumbing are still usable, but the motor-side assembly, drive, display, or internal power-end components need replacement. Instead of replacing the entire pump, this assembly helps restore variable-speed performance, energy-efficient operation, and reliable pool circulation.
Built with a 2.7HP variable-speed motor, integrated drive, digital display, and key hydraulic components, the SPX3206Z1VSPE is a professional-grade repair solution for compatible Hayward pump systems.
Ideal For
- Hayward TriStar VS 950 pump repairs
- Hayward TriStar VS G3 pump repairs
- Hayward EcoStar variable-speed pump repairs
- Replacing failed motor and drive assemblies
- Pumps showing drive errors or display issues
- Pumps that will not power on or hold programming
- Restoring variable-speed pump performance
- Avoiding full pump replacement when wet end is still usable
- Pool service technicians and equipment repair professionals
- Residential inground pool circulation systems
Key Features
- Genuine Hayward replacement assembly — designed for compatible Hayward variable-speed pump systems.
- 2.7HP variable-speed power end — restores strong, adjustable-speed circulation performance.
- Complete motor and drive assembly — includes the major power-end components needed for repair.
- Integrated digital display — supports pump programming, speed control, and operating feedback.
- Designed for TriStar VS 950 and EcoStar pumps — compatible with select Hayward VS pump platforms.
- Energy-efficient variable-speed operation — allows lower-speed operation for everyday filtration and higher speeds when needed.
- Drop-in repair solution — helps restore pump function without replacing the entire wet-end housing.
- Includes key hydraulic components — designed to replace worn motor-side parts as an assembly.
- OEM fit and performance — built to Hayward specifications for compatible pump models.
- Professional-grade replacement part — ideal for pool equipment service and repair jobs.
Benefits
The Hayward SPX3206Z1VSPE helps restore compatible variable-speed pumps without requiring a complete pump replacement. If the pump housing, basket, lid, unions, and plumbing are still in good condition, replacing the power end can be a more efficient repair option.
This assembly helps correct problems caused by a failed motor, failed drive, damaged display, internal component wear, or power-end failure. Restoring the variable-speed function allows the pump to run at lower speeds for daily filtration, helping reduce energy use and noise compared with traditional single-speed operation.
For pool professionals, this assembly provides a complete repair path for compatible Hayward TriStar VS 950 and EcoStar pump systems.
Specifications
| Specification | Details |
|---|---|
| Product Name | Hayward Power End Assembly – 2.7HP for TriStar VS 950 & EcoStar Pumps |
| Brand | Hayward |
| Part Number | SPX3206Z1VSPE |
| SKU | SPX3206Z1VSPE |
| UPC / GTIN | 610377383332 |
| Product Type | Pool pump power end assembly |
| Pump Type Compatibility | Variable-speed pool pumps |
| Horsepower | 2.7 HP |
| Motor Type | Variable-speed motor |
| Drive Included | Yes |
| Display Included | Yes |
| Digital Control Interface | Yes |
| Compatible Pump Series | Hayward TriStar VS 950, TriStar VS G3, EcoStar |
| Common Compatible Models | SP3206VSP, W3SP3206VSP, SP3206VSPBH, SP32950VSP, HL32950VSP, SP3400VSP |
| Voltage Reference | 115/230V compatible applications, depending on pump model and installation |
| Phase | Single phase |
| Application | Inground pool pump repair |
| Use Type | Motor / drive / power-end replacement |
| Pump Housing Included | No |
| Strainer Pot Included | No |
| Pump Lid Included | No |
| Pump Basket Included | No |
| Union Kit Included | No |
| Equipment Category | Pool pump replacement parts |
| OEM / Aftermarket | Genuine Hayward OEM replacement part |
| Professional Installation Recommended | Yes |
| Sold As | Each |
Included Components
- 1 × 2.7HP variable-speed motor assembly
- 1 × integrated drive
- 1 × digital display / control interface
- 1 × diffuser
- 1 × diffuser O-ring
- 1 × diffuser screw
- 1 × impeller with impeller screw
- 1 × impeller ring
- 1 × shaft seal assembly
- 1 × housing O-ring
- 1 × seal plate
- Motor mounting hardware
Pump housing, strainer pot, clear lid, pump basket, unions, plumbing fittings, electrical whip, bonding wire, automation wiring, and installation labor are sold separately unless specifically included by the supplier.
Compatibility Notes
This assembly is designed for select Hayward variable-speed pump models. Common compatibility references include:
- Hayward TriStar VS 950
- Hayward TriStar VS G3
- Hayward EcoStar
- SP3206VSP
- W3SP3206VSP
- SP3206VSPBH
- SP32950VSP
- HL32950VSP
- SP3400VSP
Always confirm the existing pump model, serial range, drive style, wet-end configuration, and part diagram before ordering. This power end is not universal for all Hayward pumps.
Installation Notes
This power end should be installed by a qualified pool professional or pump technician. Before installation, turn off all power at the breaker and verify that the pump cannot restart during service.
Inspect the existing pump housing, diffuser seal surfaces, housing O-ring, plumbing unions, strainer pot, lid, basket, and bonding connection before reassembly. Proper sealing and alignment are required to prevent leaks, priming issues, vibration, or motor damage.
After installation, verify electrical connections, bonding, pump programming, priming, speed operation, display function, leak-free operation, and automation communication if applicable.
Customer-Facing Q&A
Q: What is the Hayward SPX3206Z1VSPE?
A: It is a genuine Hayward 2.7HP power end assembly for select TriStar VS 950, TriStar VS G3, and EcoStar variable-speed pumps.
Q: What is the SKU?
A: The SKU is SPX3206Z1VSPE.
Q: What is the UPC / GTIN?
A: The UPC / GTIN is 610377383332.
Q: Does this include the motor?
A: Yes. This assembly includes the 2.7HP variable-speed motor.
Q: Does this include the drive?
A: Yes. The drive is included.
Q: Does this include the display?
A: Yes. This assembly includes the digital display / control interface.
Q: Is this a complete pump?
A: No. This is the power end assembly only. The pump housing, strainer pot, lid, basket, unions, and plumbing components are not included.
Q: What pumps does this fit?
A: It fits select Hayward TriStar VS 950, TriStar VS G3, and EcoStar pump models. Common references include SP3206VSP, W3SP3206VSP, SP32950VSP, HL32950VSP, and SP3400VSP.
Q: Can this fix a pump with drive errors?
A: It may help if the issue is caused by a failed drive, motor, display, or power-end component. Other electrical or automation issues should also be diagnosed before replacement.
Q: Can I reuse my existing wet end?
A: Yes, this assembly is intended for repairs where the existing compatible pump housing and wet-end components are still usable.
Q: Should this be professionally installed?
A: Yes. Professional installation is recommended because the pump must be disassembled, electrically connected, resealed, programmed, and tested.
