Product Overview

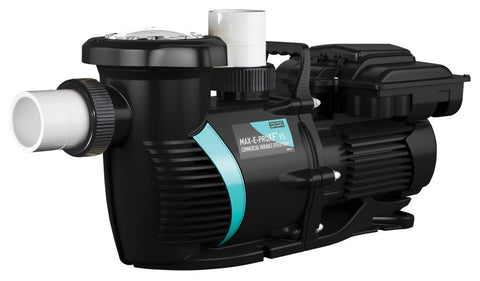

The Sta-Rite Max-E-Pro XF 5 HP Variable Speed Pump is a high-performance commercial pool pump designed for demanding pool and spa applications. This pump combines a powerful 5 HP variable speed motor and integrated drive into one complete pump package, eliminating the need for a separate external drive in many installations.
Built for HMAC applications, commercial pools, and large residential systems, the Max-E-ProXF VS pump provides energy-saving variable speed operation with strong hydraulic performance and flexible power input capability.
Ideal For
Commercial pools, hotels, motels, apartments, condominiums, large residential pools, high-flow equipment pads, and pool systems requiring a powerful 5 HP variable speed pump.
Key Features
- 5 HP variable speed pool pump
- Integrated motor and drive assembly
- No separate external drive required
- Runs on single-phase or three-phase power
- Wide voltage compatibility
- Speed or flow control for efficient system performance
- Designed for commercial and large residential applications
- External control capability through automation systems or relays
- Intuitive programming and operation
- Energy-saving variable speed technology
- NSF listed for commercial pool applications
- Professional installation required
Benefits
The Sta-Rite Max-E-Pro XF 023035 gives customers commercial-grade pumping performance with the efficiency and flexibility of variable speed operation. The integrated motor and drive design helps reduce the added cost, space, and complexity of a separate external VFD setup.
With programmable speed and flow control, this pump can be adjusted for filtration, heating, cleaning, water features, spa jets, and turnover requirements. Running at lower speeds when full flow is not needed can help reduce energy use while still maintaining proper circulation.
Specifications
| Specification | Details |
|---|---|
| Brand | Sta-Rite / Pentair |
| Series | Max-E-ProXF |
| Product Type | Variable Speed Commercial Pool Pump |
| Part Number / SKU | 023035 |
| Horsepower | 5 HP |
| Speed Type | Variable Speed |
| Motor / Drive | Integrated Motor and Drive |
| Power Phase | Single Phase or Three Phase |
| Voltage | 208-230/277-460V Single Phase; 208-460V Three Phase |
| Frequency | 50/60 Hz |
| Application | Commercial / Large Residential Pool Circulation |
| Controls | Speed or Flow Control |
| Automation Compatibility | External control through automation systems or relays |
| NSF Listed | Yes |
| Complete Pump Included | Yes |
| Barcode / UPC | 788379882747 |
Confirm Before Ordering
Please confirm horsepower, voltage, phase, plumbing size, automation requirements, commercial code requirements, equipment pad space, and replacement pump compatibility before ordering. This is a high-output 5 HP commercial-grade variable speed pump and should be installed by a qualified pool professional or licensed electrician.
Customer-Facing Q&A
Is this a complete pump?
Yes. This is a complete Sta-Rite Max-E-ProXF variable speed pump with integrated motor and drive.
Does this need a separate external drive?
No. The Max-E-ProXF VS includes an integrated 5 HP motor and drive, so a separate external drive is not required for standard compatible installations.
Is this single phase or three phase?
This pump can run on single-phase or three-phase power, depending on the installation setup.
What voltage does this pump support?
It is commonly listed as 208-230/277-460V single phase and 208-460V three phase.
Is this for residential or commercial pools?
This pump is designed primarily for commercial pool applications, but it can also be used on large residential systems where properly sized.
Can this connect to automation?
Yes. It supports external control capability through compatible automation systems or relays.
Does this require professional installation?
Yes. Due to the horsepower, voltage range, and commercial-style application, professional installation is strongly recommended.
