Product Overview

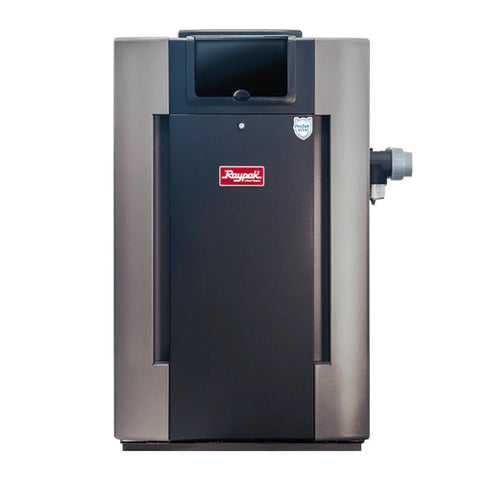

The Raypak 407A ASME Digital Natural Gas Heater | 017712 is a heavy-duty pool and spa heater designed for commercial, semi-commercial, and demanding residential applications. With a powerful 399,000 BTU input, this heater provides fast heat-up performance for larger pools, spas, and high-demand aquatic systems.
This ASME model is built with bronze headers and a cupronickel heat exchanger, making it a strong choice for tougher water conditions, high-use pools, saltwater pools, and applications where added durability is required. The Low NOx design supports cleaner combustion, while the digital control system provides easy temperature adjustment and onboard diagnostics.
The B-R407A-EN-X #26 configuration is designed for natural gas and commonly listed for 0–5,000 ft elevation applications. It also includes the ProTek Shield module, which helps protect the heat exchanger from corrosion-related damage caused by stray current and aggressive water conditions.
Ideal For
- Commercial swimming pools
- Large residential pools
- Pool and spa combination systems
- High-demand heating applications
- Natural gas pool heating systems
- Saltwater pools when chemistry is properly maintained
- Apartments, condos, hotels, and HOA pools
- Health clubs and aquatic facilities
- Replacing older ASME commercial heaters
- Applications requiring bronze headers and cupronickel exchanger
- Professional pool heater installations
Key Features
- 399,000 BTU input — delivers powerful heating performance for large pool and spa systems.
- ASME construction — built for commercial-grade pool and spa heating applications.
- Natural gas operation — designed for compatible natural gas fuel systems.
- Bronze headers — heavy-duty header construction for demanding pool equipment environments.
- Cupronickel heat exchanger — provides enhanced corrosion resistance compared with standard copper exchangers.
- Low NOx design — engineered for reduced emissions and cleaner combustion.
- Digital control panel — provides easy temperature adjustment and system monitoring.
- Onboard diagnostics — helps pool professionals troubleshoot heater operation more efficiently.
- Electronic ignition — reliable ignition system without a standing pilot.
- ProTek Shield module included — helps protect against corrosion from stray current and harsh water conditions.
- 2" bronze header connections — supports commercial-style water connection durability.
- #26 configuration — commonly listed for 0–5,000 ft elevation natural gas applications.
- Professional-grade Raypak platform — designed for long service life and demanding pool heating needs.
Benefits
The Raypak 017712 is built for pool owners and commercial operators who need reliable, high-output heating with commercial-grade durability. Its 399K BTU input helps heat large pools and spas quickly, making it ideal for facilities where water temperature consistency is important.
The combination of bronze headers and a cupronickel heat exchanger provides added protection for demanding environments, including high-use pools and properly maintained saltwater systems. The included ProTek Shield module adds another layer of protection by helping guard the heat exchanger from corrosion-related damage.
For service professionals, the digital controls, diagnostic display, ASME construction, and Raypak’s proven heater platform make the 407A ASME a strong choice for commercial replacement and new equipment installations.
Specifications
| Specification | Details |
|---|---|
| Product Name | Raypak 407A ASME Digital Natural Gas Heater |
| Brand | Raypak |
| Manufacturer | Rheem / Raypak |
| Model | B-R407A-EN-X #26 |
| Part Number | 017712 |
| SKU | 017712 |
| Distributor Product Number | RAY-15-0321 |
| UPC | 840891042327 |
| Product Type | Pool and spa gas heater |
| Heater Series | Raypak Digital Low NOx ASME |
| Heater Size Class | 407A |
| Fuel Type | Natural gas |
| BTU Input | 399,000 BTU |
| Ignition Type | Electronic ignition |
| Control Type | Digital control panel |
| Diagnostic System | Onboard diagnostics |
| Emissions Rating | Low NOx |
| ASME Rated | Yes |
| Header Material | Bronze |
| Header Size | 2" bronze headers |
| Heat Exchanger Material | Cupronickel |
| Tubing Material | Cupro-nickel fin tube |
| ProTek Shield Module | Included |
| Elevation Configuration | #26 configuration, commonly listed for 0–5,000 ft |
| Application | Commercial pool, spa, and high-demand residential heating |
| Installation Location | Outdoor or approved properly vented installation |
| Fuel Connection | Natural gas connection, verify local code and sizing |
| Product Weight | Approx. 256 lb |
| Equipment Category | Pool heaters / commercial pool heaters |
| Professional Installation Required | Yes |
| Sold As | Each |
Included Components
- 1 × Raypak 407A ASME Digital Natural Gas Heater
- Bronze header assembly
- Cupronickel heat exchanger
- Digital control system
- Electronic ignition system
- ProTek Shield module
- Manufacturer-supplied installation documentation
Gas line materials, shutoff valve, regulator if required, venting components, electrical wiring, bonding materials, plumbing valves, unions, pressure relief valve if required by local code, equipment pad materials, and installation labor are sold separately unless specifically included by the supplier.
Installation Notes
This heater must be installed by a qualified pool professional, licensed gas technician, or licensed contractor as required by local code. Proper installation requires correct natural gas supply sizing, electrical wiring, bonding, grounding, water flow verification, plumbing layout, combustion air, and venting where required.
Before installation, confirm that the fuel type is natural gas, the #26 elevation configuration is correct for the installation location, and the gas supply can support a 399,000 BTU heater.
Water chemistry must be maintained within recommended ranges to protect the cupronickel heat exchanger, bronze headers, and connected pool equipment. Improper water balance, poor flow, or incorrect installation can reduce heater life and may void warranty coverage.
Customer-Facing Q&A
Q: What is the Raypak 017712?
A: It is a Raypak 407A ASME Digital Low NOx natural gas pool and spa heater with bronze headers, cupronickel heat exchanger, and 399,000 BTU input.
Q: What is the SKU?
A: The SKU is 017712.
Q: What is the UPC?
A: 840891042327
Q: What is the distributor product number?
A: The distributor product number is RAY-15-0321.
Q: What fuel type does this heater use?
A: This model uses natural gas.
Q: How many BTUs is this heater?
A: It is rated at 399,000 BTU input.
Q: Is this an ASME heater?
A: Yes. This is an ASME-rated heater designed for commercial and demanding pool heating applications.
Q: Does this heater have bronze headers?
A: Yes. This model includes 2" bronze headers.
Q: Does this model have a cupronickel heat exchanger?
A: Yes. It includes a cupronickel heat exchanger for added durability in demanding water conditions.
Q: Is this a Low NOx heater?
A: Yes. This model is part of Raypak’s Digital Low NOx ASME heater line.
Q: What is ProTek Shield?
A: ProTek Shield is a protective module designed to help reduce corrosion-related damage to the heat exchanger caused by stray current and harsh water conditions.
Q: What does #26 mean?
A: The #26 configuration is commonly listed for natural gas applications at 0–5,000 ft elevation. Always verify correct configuration before installation.
Q: Is this suitable for saltwater pools?
A: Yes, the cupronickel exchanger and bronze headers make it a strong option for properly maintained saltwater pools, but water chemistry must remain balanced.
Q: Should this heater be professionally installed?
A: Yes. Professional installation is required because this heater involves gas, electrical, plumbing, venting, bonding, and safety requirements.
