The Raypak 017414 ASME Propane Gas Pool Heater is a heavy-duty digital gas heater designed for commercial, semi-commercial, and demanding residential pool and spa applications. With a 406K BTU-class heater platform, this model provides powerful heat-up performance for large pools, spas, aquatic facilities, and high-use systems.
This heater is configured for propane gas and includes digital controls, electronic ignition, an ASME-certified exchanger design, a nickel / cupro-nickel heat exchanger, and cast iron header construction. It is built for applications where durability, heat output, and code-compliant ASME construction are required.
The digital Raypak platform also supports easier operation and service with an easy-to-read display and onboard diagnostic capability.
Ideal For
- Commercial pool heating systems
- Commercial spa heating systems
- Heavy-use residential pools
- Large inground pools
- Pool and spa combination systems
- Propane / LP gas equipment pads
- ASME-required heater installations
- Applications requiring nickel / cupro-nickel exchanger durability
- 406K BTU-class heater replacement applications
- Professional pool heater installations
Key Features
- 406K BTU-class heating performance — powerful output for large pools, spas, and commercial applications.
- ASME-certified construction — designed for commercial or code-required heater installations.
- Propane gas operation — made for LP gas pool and spa heating systems.
- Digital control system — provides easy temperature setting and heater status monitoring.
- Electronic ignition — reliable startup without a standing pilot light.
- Nickel / cupro-nickel heat exchanger — provides added durability in demanding pool and spa water environments.
- Cast iron headers — heavy-duty header construction for rugged heater applications.

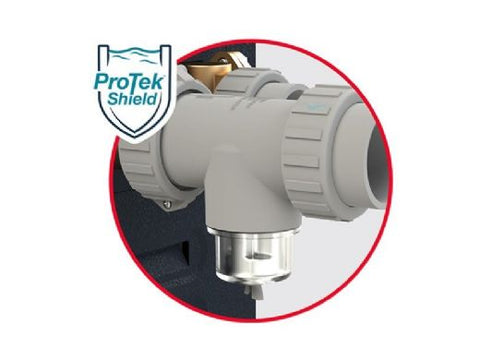

- ProTek Shield module — sacrificial protection system designed to help protect the exchanger and extend heater life.
- Self-diagnostic controls — assists service professionals with troubleshooting and operation checks.
- Outdoor heater cabinet — built for approved outdoor pool equipment installations.
- Professional-grade platform — intended for qualified pool and gas-equipment installations.
Benefits
The Raypak 017414 is built for jobs where standard residential heater construction may not be enough. Its ASME-certified design, 406K BTU-class output, nickel heat exchanger, and heavy-duty header construction make it a strong option for large pools, commercial pool systems, spas, HOAs, apartments, hotels, and other high-demand applications.
The digital control system simplifies operation, while electronic ignition eliminates the need for a standing pilot. The nickel exchanger and ProTek Shield protection help support longer heater life when water chemistry is properly maintained.
For pool professionals, this unit provides a service-friendly Raypak heater platform with durable construction, strong heat output, and ASME-ready performance.
Specifications
| Specification | Details |
|---|---|
| Product Name | Raypak ASME Propane Gas Pool Heater – 406K BTU, Digital, Nickel Heat Exchanger, Cast Iron Headers |
| Brand | Raypak |
| Model Reference | B-R406A-EP-X #57 ASME |
| Part Number | 017414 |
| SKU | 017414 |
| Barcode / UPC | 840891042044 |
| Product Type | Pool and spa gas heater |
| Heater Type | Digital ASME gas heater |
| Fuel Type | Propane / LP gas |
| BTU Class | 406K BTU class |
| BTU Input Reference | 399.0 MBTU/h / 399,000 BTU reference commonly associated with B-R406A platform |
| Ignition Type | Electronic ignition |
| Control Type | Digital control system |
| Diagnostics | Self-diagnostic controls |
| Heat Exchanger Material | Nickel / cupro-nickel |
| Header Material | Cast iron |
| ASME Certified | Yes |
| Protection Module | ProTek Shield |
| Application | Pool and spa heating |
| Pool Type | Commercial pools, commercial spas, large residential pools, and heavy-use pool/spa systems |
| Equipment Category | Pool heaters / gas heaters |
| Professional Installation Required | Yes |
| Sold As | Each |
Included Components
- 1 × Raypak 017414 ASME propane gas pool and spa heater
- ASME-certified heater assembly
- Nickel / cupro-nickel heat exchanger
- Cast iron header assembly
- Digital control system
- Electronic ignition system
- ProTek Shield module
- Manufacturer-supplied installation documentation
Propane gas line, gas shutoff valve, regulator if required, electrical wiring, bonding materials, venting components, plumbing valves, unions, check valves, pressure relief valve if required by local code, equipment pad materials, automation wiring, and installation labor are sold separately unless specifically included by the supplier.
Compatibility Notes
The Raypak 017414 is designed for compatible propane gas pool and spa heating systems requiring an ASME 406K BTU-class heater.
Common application references include:
- Commercial pool heater installations
- Commercial spa heater installations
- Heavy-use residential pool systems
- Propane / LP gas equipment pads
- ASME-required heater applications
- Nickel / cupro-nickel heat exchanger applications
- 406K BTU-class heater replacement applications
- Outdoor heater installations with proper clearances
Always confirm fuel type, BTU requirement, ASME requirement, gas line sizing, propane regulator requirements, elevation, electrical service, water flow, venting needs, installation location, and local code requirements before ordering.
Installation Notes
This heater must be installed by a qualified pool professional, licensed gas technician, or licensed contractor as required by local code. Proper installation requires correct propane gas supply sizing, gas pressure verification, electrical wiring, bonding, grounding, water flow verification, plumbing layout, combustion air, and venting where required.
Before installation, confirm the site uses propane / LP gas and that the gas supply can support the heater’s BTU requirement. Also confirm whether the project requires ASME-certified heater construction.
Water chemistry must be maintained within recommended ranges to protect the nickel / cupro-nickel heat exchanger and preserve heater performance. Improper water balance, poor flow, incorrect gas pressure, restricted venting, or improper installation can damage the heater and may void warranty coverage.
Customer-Facing Q&A
Q: What is the Raypak 017414?
A: It is a Raypak ASME propane gas pool and spa heater with digital controls, nickel / cupro-nickel heat exchanger construction, and heavy-duty header construction.
Q: What is the SKU?
A: The SKU is 017414.
Q: What is the barcode / UPC?
A: 840891042044
Q: What fuel type does this heater use?
A: This model uses propane gas / LP gas.
Q: What does ASME mean?
A: ASME refers to certified heater construction commonly required for many commercial or code-specific pool and spa heater installations.
Q: How many BTUs is this heater?
A: This listing title uses 406K BTU-class. The B-R406A platform is also commonly associated with 399.0 MBTU/h / 399,000 BTU input references.
Q: What type of heat exchanger does it use?
A: It uses a nickel / cupro-nickel heat exchanger.
Q: What header material does it use?
A: This title lists cast iron headers. Verify the exact header material on the supplier label or Raypak documentation before final publication.
Q: Does this heater have electronic ignition?
A: Yes. It uses electronic ignition and does not require a standing pilot light.
Q: Is this for commercial pools?
A: Yes. ASME heaters are commonly used for commercial, semi-commercial, and heavy-use pool and spa applications when properly sized and code-approved.
Q: Should this heater be professionally installed?
A: Yes. Professional installation is required because this heater involves propane gas, electrical wiring, plumbing, venting, bonding, and safety requirements.
