Pentair IntelliFloXF VSF Variable Speed Pump 3.95 THP | 022056
Product Overview

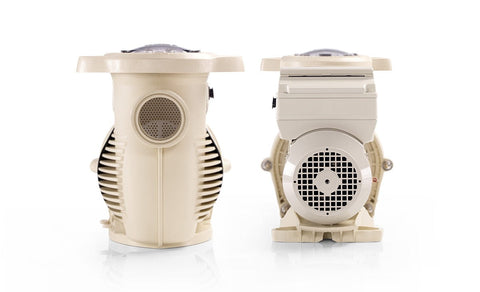

Pentair IntelliFloXF VSF (022056) – 3.95 THP Variable Speed & Flow High-Performance Pool Pump
The IntelliFloXF VSF is Pentair’s most powerful residential and semi-commercial variable-speed pump, built for large pools and complex water features that demand high flow and precision control. It combines the proven IntelliFlo® technology with an oversized wet end, intelligent variable flow capability, and robust construction for maximum efficiency and durability.
-
Total Horsepower: 3.95 THP
-
Voltage: 230 V Single Phase, 60 Hz
-
Speed Range: 450 – 3450 RPM
-
Control Type: Variable Speed & Flow (VSF)
-
Warranty: 3 Years (when professionally installed)
Call-out Badges: High-Flow Design • Variable Flow Technology • Energy Efficient • Automation Ready
Ideal For
-
Large residential or semi-commercial pools with high flow requirements
-
Pools with multiple water features, waterfalls, or in-floor cleaning systems
-
Builders and service pros seeking a premium, high-output automation-compatible pump
-
Energy-conscious property owners wanting power without performance loss
Key Features
3.95 THP Variable-Speed & Flow Motor — Powerful permanent-magnet motor automatically adjusts RPM to maintain target flow.
Why it matters: Delivers consistent performance across filtration, heating, and water features.
High-Flow XF Wet End Design — Enlarged housing and volute deliver superior hydraulic efficiency and higher flow at lower RPM.
Why it matters: Moves more water with less energy use and less system strain.
Variable Flow Control (VSF) — Maintains a constant flow rate regardless of filter load or backpressure changes.
Why it matters: Protects equipment, improves filtration, and stabilizes system performance.
Automation Compatibility — Integrates seamlessly with IntelliCenter®, IntelliTouch®, and EasyTouch® systems.
Why it matters: Enables smart scheduling, remote control, and system synchronization.
Energy Star Certified — Meets or exceeds U.S. Department of Energy efficiency requirements.
Why it matters: Delivers maximum savings and eco-friendly performance.
Benefits
-
High Performance: Perfect for large pools or complex multi-zone hydraulic systems
-
Energy Savings: Up to 90% reduction in power consumption compared to single-speed pumps
-
Quiet Operation: Advanced hydraulics and TEFC motor reduce vibration and sound
-
Long-Term Reliability: Rugged composite materials and superior motor cooling extend service life
-
Automation-Ready: Pairs with Pentair automation for full smart control
Specs & What’s in the Box
Specifications
-
Total Horsepower: 3.95 THP
-
Voltage: 230 V, single phase
-
Speed Range: 450 – 3450 RPM
-
Flow Control: Variable Flow & Speed
-
Motor Type: Permanent Magnet, TEFC
-
Union Connections: 3” plumbing ports
-

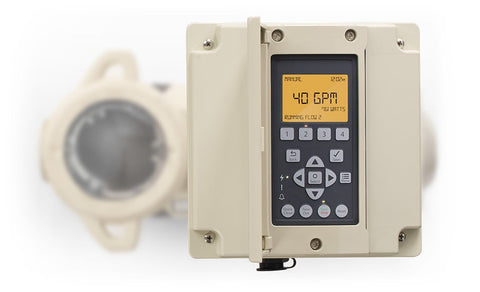

Display: Built-in digital keypad with user scheduling
-
Energy Compliance: DOE & Energy Star Certified
In the Box
-
Pentair IntelliFloXF VSF Pump (022056)
-
(2) 3” union fittings
-
Installation manual and quick-start guide
Compatibility & Replacements
Works with: IntelliCenter®, IntelliTouch®, and EasyTouch® automation systems
Replaces: Older IntelliFlo XF (model 022055) and other high-flow single-speed pumps
Not compatible with: Three-phase systems or pumps requiring external drive units
Trust Builders
-
⭐⭐⭐⭐⭐ Pentair’s most powerful and efficient IntelliFlo® pump
-
Industry-leading 3-year warranty with professional installation
-
Certified for DOE compliance and Energy Star efficiency
-
Supported nationwide through Pentair’s dealer and service network
Install Steps (Compact)
-
Disconnect power and remove existing pump
-
Mount IntelliFloXF VSF level on equipment pad
-
Connect 3” plumbing using included union fittings
-
Wire to 230 V power and configure desired flow settings
-
Power on, pair with automation (if applicable), and test performance
