Product Overview

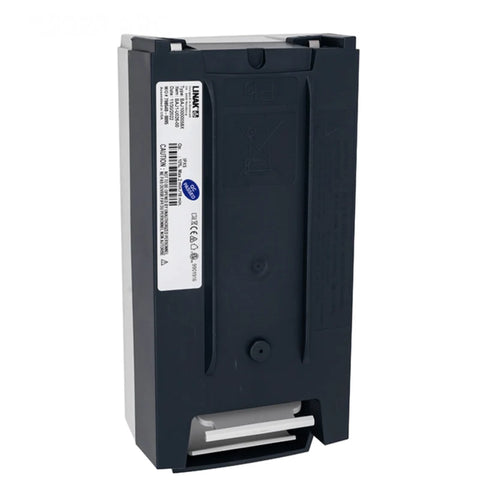

The Aqua Creek Linak Pool Lift Replacement Battery | F-004AB is a genuine 24V replacement battery designed for Aqua Creek pool and spa lifts equipped with the Linak operating and control system.
This rechargeable battery provides the power required to raise, lower, and operate compatible Aqua Creek accessibility lifts. It is an ideal replacement for a battery that no longer holds a sufficient charge or as a spare battery for commercial facilities that need to keep their pool lift available throughout the day.
The F-004AB is specifically the Linak-style battery and is easily identified by the two metal contact tabs on the bottom of the battery.
For charging, Aqua Creek specifies the F-044CH Linak Battery Charger, sold separately.
Key Features & Benefits
- Genuine Aqua Creek Replacement Battery – Designed specifically for compatible Aqua Creek pool lifts.
- 24V Battery System – Correct voltage for Aqua Creek lifts equipped with Linak controls.
- Linak Configuration – Designed for compatible Linak two-piece control systems.
- Rechargeable Design – Allows the battery to be removed and recharged between uses.
- Two Metal Contact Tabs – Makes the Linak battery easy to distinguish from Aqua Creek Vito batteries.
- Compatible with F-044CH Charger – Uses Aqua Creek's dedicated Linak battery charger.
- Ideal Replacement Battery – Restores operation when the existing battery no longer maintains a sufficient charge.
- Excellent Spare Battery – Helps commercial facilities keep a fully charged backup available.
- No Hardwired Power Required During Lift Operation – The pool lift operates from its rechargeable battery system.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Aqua Creek Products |
| Manufacturer Part Number | F-004AB |
| Linak Manufacturer Number | BAJ1-U026-00 |
| Product Type | Pool Lift Replacement Battery |
| Battery System | Linak |
| Voltage | 24V DC |
| Battery Type | Rechargeable |
| Control System | Linak 2-Piece Control System |
| Battery Identification | Two Metal Contacts on Bottom |
| Required Charger | F-044CH – Sold Separately |
| Application | Aqua Creek Pool & Spa Lifts |
| Approx. Product Weight | 8 lbs |
| UPC / GTIN | 811628020697 |
| Condition | New Genuine Aqua Creek |
Important Compatibility Information
Aqua Creek uses multiple battery and control-system designs.
F-004AB – Linak Battery
The F-004AB is designed for Aqua Creek lifts equipped with the Linak control system.
The Linak battery can be identified by:
Two metal contact tabs located on the bottom of the battery.
These contacts connect directly to corresponding contacts on the Linak control box and charger.
F-004ABV – Vito Battery
The F-004ABV is a different battery used with Aqua Creek's Vito control system.
The Vito battery is typically identified by a water-resistant cable extending from the battery housing.
F-004AB and F-004ABV are not interchangeable.
Verify your existing battery and control system before ordering.
Compatible Charger
The correct Aqua Creek charger for this battery is:
Aqua Creek F-044CH
24V Linak Battery Charger
The F-044CH is designed specifically for the F-004AB Linak battery.
Charger is sold separately.
Aqua Creek lists a typical battery charging time of approximately 4–6 hours, depending on how deeply the battery has been discharged.
What's Included
Included
- One Aqua Creek F-004AB 24V Linak Replacement Battery
Not Included
- F-044CH battery charger
- Control box
- Hand control
- Actuator
- Pool lift
- Solar charging station
Recommended Battery Care
Aqua Creek recommends keeping the battery on the charger whenever the lift is not being used.
Proper charging habits can help extend battery life and ensure the lift is ready when needed.
For commercial facilities such as hotels, HOAs, municipalities, and recreation centers, keeping a second fully charged F-004AB battery available can help minimize pool-lift downtime.
When Should the Battery Be Replaced?
Battery replacement may be necessary if:
- The lift operates for fewer cycles than normal
- The battery discharges quickly
- The battery no longer maintains a charge
- Lift movement becomes slow despite proper charging
- The charger indicates the battery cannot reach a full charge
- The existing battery is physically damaged
- The pool lift requires frequent recharging
Before replacing the battery, confirm that the charger, control box, wiring, and actuator are operating correctly.
Frequently Asked Questions
What voltage is Aqua Creek F-004AB?
It is a 24V DC rechargeable battery.
What type of Aqua Creek system does it fit?
It is designed for Aqua Creek pool lifts equipped with the Linak control system.
How can I tell if I have a Linak battery?
The F-004AB Linak battery has two metal contact tabs on the bottom that connect to the control box and charger.
Which charger does this battery use?
Use the Aqua Creek F-044CH Linak Battery Charger.
Is the charger included?
No. The F-044CH charger is sold separately.
How long does charging normally take?
Aqua Creek lists a typical charging time of approximately 4–6 hours, depending on battery discharge level.
Can I keep a second battery as a spare?
Yes. Keeping a second charged battery is especially useful for commercial facilities where the pool lift needs to remain available.
Is F-004AB the same as F-004ABV?
No. F-004AB is the Linak battery, while F-004ABV is the Vito battery.
What is the Linak manufacturer number?
BAJ1-U026-00.
What is the UPC?
811628020697.
