Product Overview

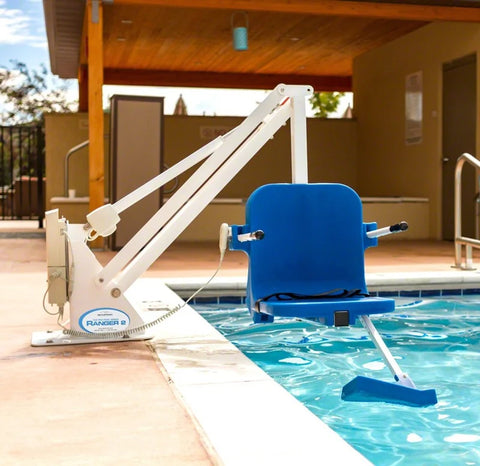

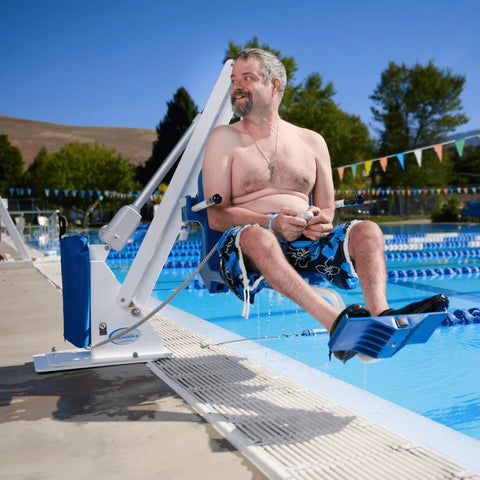

Provide safe, independent access to a compatible inground pool or spa with the Aqua Creek Ranger 2 Pool Lift. Model F-RNGR2 combines a compact footprint, dependable battery-powered operation, and a stable non-rotational design for residential and commercial aquatic facilities.
The Ranger 2 supports users weighing up to 350 pounds and is ADA compliant when installed in a qualifying location with the correct anchor, clear deck space, water depth, seat position, and setback. It is also UL certified for added confidence in commercial accessibility applications.
This configuration features a durable white powder-coated frame with a blue seat. The frame is constructed from stainless steel to resist corrosion in demanding pool environments. Its field-reversible design allows the lift to be configured for left-side or right-side pool access during installation.
Key Features
- ADA-compliant pool-access design
- UL-certified construction
- 350-pound maximum user capacity
- White frame with blue seat
- Stable, non-rotational lifting motion
- Field-reversible installation design
- Stainless-steel frame
- Durable powder-coated finish
- Rechargeable battery-powered operation
- Water-resistant two-button handset
- Flip-up armrests
- Adjustable footrest
- Lap belt included
- Compact footprint for smaller pool decks
- Made in the USA
- Anchor sold separately
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Aqua Creek Products |
| Product Series | Ranger 2 |
| Manufacturer Part Number | F-RNGR2 |
| SKU | F-RNGR2 |
| UPC / Barcode | 811628026118 |
| Product Type | Anchored Pool and Spa Lift |
| Frame Color | White |
| Seat Color | Blue |
| Maximum Capacity | 350 lb / 160 kg |
| Construction | Powder-Coated Stainless Steel |
| Lift Design | Stable, Non-Rotational |
| Standard Water Draft | Approximately 14 Inches |
| Setback Range | Approximately 14.5–19 Inches |
| Power Source | Rechargeable 24V Battery |
| ADA Compliant | Yes, When Properly Installed |
| UL Certified | Yes |
| Anchor Included | No |
Published Ranger 2 specifications identify a standard 14-inch deck-to-water draft and an approximate setback range of 14.5 to 19 inches.
Installation Requirements
The F-RNGR2 requires a compatible Aqua Creek four-point anchoring system. Anchor options are available for standard concrete, paver decks, wood decks, and quick-attach concrete installations. The anchor must be selected according to the deck construction and installation layout.
Professional installation is recommended. The installer must verify deck strength, anchor placement, setback, water depth, seat clearance, electrical bonding requirements, and all applicable accessibility standards.
The lift is not portable and must not be used without a properly installed anchoring system.
Package Contents
- Ranger 2 lift assembly
- White powder-coated frame
- Blue seat
- Rechargeable 24V battery
- Wall-mount battery charger
- Water-resistant handset
- Flip-up armrests
- Adjustable footrest
- Lap belt
The deck anchor, concrete hardware, transport cart, protective cover, solar charger, headrest, chest strap, and optional accessories are not included.
Maintenance and Safety
Charge the battery indoors using the supplied charger. Inspect the frame, seat, belt, footrest, handset, actuator, fasteners, and anchor hardware before use. Rinse the lift regularly with fresh water and remove it from service immediately if damage or abnormal operation is observed.
Never exceed the 350-pound capacity or move the lift while occupied.
Warranty Information
Aqua Creek lists a limited five-year warranty for the Ranger 2, subject to its current warranty terms, proper installation, routine maintenance, and approved use.
