Product Overview

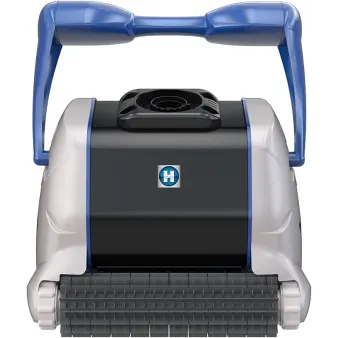

The Hayward TigerShark Robotic Pool Cleaner | W3RC9950CUB is a powerful robotic cleaner designed for residential in-ground swimming pools up to 20' x 40'. Using intelligent microprocessor-based navigation, the TigerShark automatically cleans the pool floor, walls, coves, and waterline without relying on the pool pump or filtration system.
The W3RC9950CUB features a 55-foot floating power cord, onboard vacuum pump, reusable cartridge filtration, and an energy-efficient 24V cleaner motor. Simply connect the included power supply, place the cleaner in the pool, and let the TigerShark handle the cleaning.
W3RC9950CUB is Hayward's Open Line version of the standard TigerShark cleaner and is approved by Hayward for online sales.
Key Features
Complete Floor-to-Waterline Cleaning
Designed to automatically scrub, vacuum, and clean:
- Pool floors
- Walls
- Coves
- Waterline
Intelligent Microprocessor Navigation
Hayward's Adaptive Seek Control Logic automatically calculates an efficient cleaning pattern based on the pool environment.
55-Foot Floating Cord
Provides sufficient reach for compatible in-ground pools up to approximately 20' x 40'.
Powerful Onboard Vacuum
An integrated pump provides strong suction for collecting dirt, sand, leaves, and other pool debris.
Reusable Cartridge Filtration
Debris is collected inside the cleaner rather than being sent through the pool's filtration system. The cartridge elements can be removed and rinsed with a garden hose.
Independent Robotic Operation
No:
- Booster pump
- Dedicated cleaner line
- Suction hose
- Connection to the pool filter
is required.
Energy-Efficient 24V Cleaner
The external power supply uses standard 115 VAC / 60 Hz input power and supplies low-voltage 24V DC power to the cleaner.
Benefits
- Automatic robotic pool cleaning
- Designed for in-ground pools
- Pools up to 20' x 40'
- Cleans floor, walls, coves, and waterline
- 55' floating power cord
- Powerful onboard vacuum
- Independent cartridge filtration
- No booster pump required
- No connection to pool plumbing
- Energy-efficient 24V cleaner motor
- Intelligent microprocessor navigation
- Reusable cartridge filters
- Suitable for multiple pool surfaces
- Open Line W3 model
- Easy plug-and-clean operation
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Hayward |
| Manufacturer Part Number | W3RC9950CUB |
| Series | TigerShark |
| Product Type | Robotic Pool Cleaner |
| Application | In-Ground Swimming Pool |
| Maximum Pool Size | Up to 20' x 40' |
| Cleaning Coverage | Floor, Walls, Coves & Waterline |
| Cleaning Cycle | 4-Hour Full Clean |
| Cord Length | 55 ft |
| Power Supply Input | 115 VAC |
| Frequency | 60 Hz |
| Cleaner Voltage | 24V DC |
| Filter Type | Reusable Cartridge |
| Navigation | Microprocessor / Adaptive Seek Control Logic |
| Booster Pump Required | No |
| Pool Plumbing Connection | No |
| Remote Control | No |
| Cleaner Weight | Approx. 21.5 lb |
| Packaged Weight | Approx. 42 lb |
| Shipping Dimensions | Approx. 19.7" x 19.7" x 21" |
| Warranty | 1-Year Limited Warranty |
| Hayward Product Line | Open Line |
| Pool360 Product Number | AQV-20-1011 |
| SKU | W3RC9950CUB |
| UPC / Barcode | 610377390156 |
Compatible Pool Surfaces
The TigerShark is designed for compatible:
- Gunite
- Vinyl
- Fiberglass
- Pebble
- Tile
Note: Certain tile surfaces may require Hayward's optional foam roller for improved traction.
What's Included
- Hayward TigerShark W3RC9950CUB Robotic Pool Cleaner
- 55' Floating Power Cord
- 115V External Power Supply
- Reusable Cartridge Filter Elements
- Integrated Brushes
- Integrated Drive System
- Operating Instructions
Caddy cart is not included.
The optional Hayward RC99385 Premium Caddy Cart is sold separately.
Installation & Operation
The TigerShark requires no permanent installation.
For operation:
- Position the power supply at the proper safe distance from the pool.
- Connect the power supply to a properly protected 115V outlet.
- Connect the cleaner's floating cable.
- Place the cleaner completely into the pool.
- Allow trapped air to escape.
- Turn on the power supply.
- Allow the TigerShark to complete its automatic cleaning cycle.
- Remove and rinse the cartridge filters after cleaning as needed.
Always follow Hayward's electrical and operating instructions.
Confirm Before Ordering
Verify that you require:
- Hayward W3RC9950CUB
- Standard TigerShark
- In-ground pool cleaner
- 55' cord
- 115V / 60 Hz power supply
- Pool size up to 20' x 40'
Similar Models
W3RC9950CUB – TigerShark
- Standard Full Clean cycle
- 55' cord
- No remote

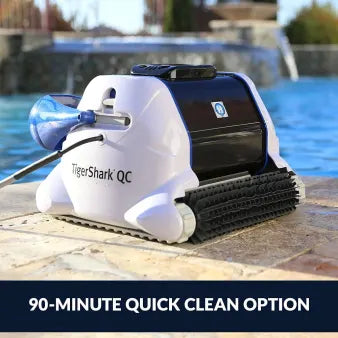

W3RC9990CUB – TigerShark QC
- Full Clean cycle
- Additional 90-minute Quick Clean cycle
- 55' cord
Do not confuse these models when ordering.
Warranty Information
The Hayward W3RC9950CUB is an Open Line product and carries a 1-year limited manufacturer warranty, subject to Hayward's current warranty terms, authorized seller requirements, proper use, and exclusions.
Customer Q&A
Q: What size pool can the Hayward W3RC9950CUB clean?
Hayward rates the TigerShark for in-ground pools up to approximately 20' x 40'.
Q: How long is the cord?
The W3RC9950CUB includes a 55-foot floating cord.
Q: Does the TigerShark clean pool walls?
Yes. It is designed to clean the floor, walls, coves, and waterline.
Q: How long is the cleaning cycle?
Hayward's manufacturer literature specifies a 4-hour Full Clean cycle for the standard TigerShark.
Q: Does it require a booster pump?
No. The TigerShark is completely robotic and does not require a booster pump.
Q: Does it connect to the pool's filter system?
No. It operates independently and collects debris in its own reusable cartridge filtration system.
Q: Does this model have Quick Clean?
No. The standard W3RC9950CUB uses the Full Clean program. For the additional 90-minute Quick Clean feature, choose the TigerShark QC model W3RC9990CUB.
Q: Is a caddy cart included?
No. The caddy is sold separately.
Q: What is the difference between W3RC9950CUB and RC9950CUB?
W3RC9950CUB is Hayward's Open Line / online-sale version of the TigerShark platform. The core TigerShark cleaning specifications are substantially the same.
Q: Is this suitable for vinyl-liner pools?
Yes. Hayward lists the TigerShark for compatible vinyl, gunite, fiberglass, pebble, and tile pools.
