Product Overview

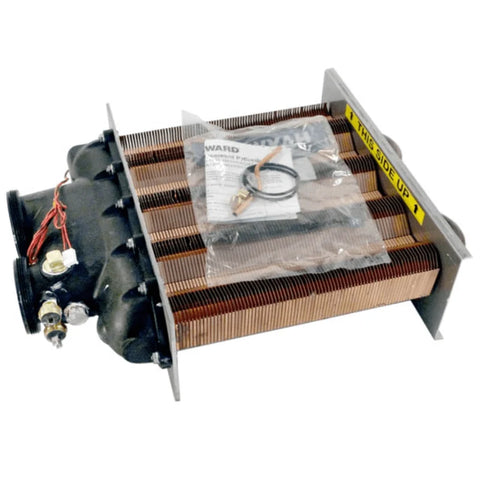

Restore reliable heating performance to a compatible Hayward H150 H-Series pool or spa heater with the Hayward HAXHXA1153 Heat Exchanger Assembly. This genuine Hayward replacement assembly is designed for select H150 Millivolt, Electronic ED1, and Electronic ED2 style heaters and includes the complete heat exchanger with header assembly.
The heat exchanger is one of the most important components inside a gas-fired pool heater. During operation, heat generated by the burner transfers through the exchanger tubes into the circulating pool or spa water. If the original heat exchanger develops leaks, corrosion, freeze damage, excessive scaling, or other physical deterioration, heater performance can be reduced and replacement may be required.
The HAXHXA1153 provides a factory replacement solution for compatible older-generation Hayward H150 heaters without requiring replacement of the complete heater when the remaining components are still serviceable.
Key Features
- Genuine Hayward OEM replacement part
- Manufacturer Part Number: HAXHXA1153
- Product Number: HAY-151-1153
- Designed for compatible Hayward H150 H-Series heaters
- Fits H150 Millivolt models
- Fits H150 Electronic ED1 models
- Fits H150 Electronic ED2 models

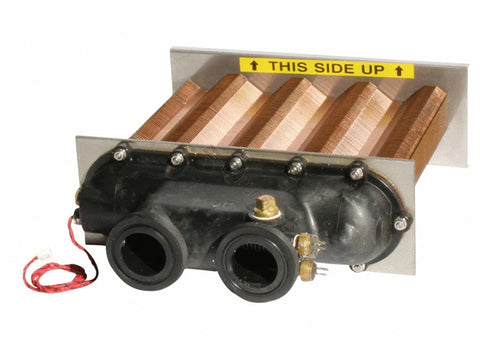

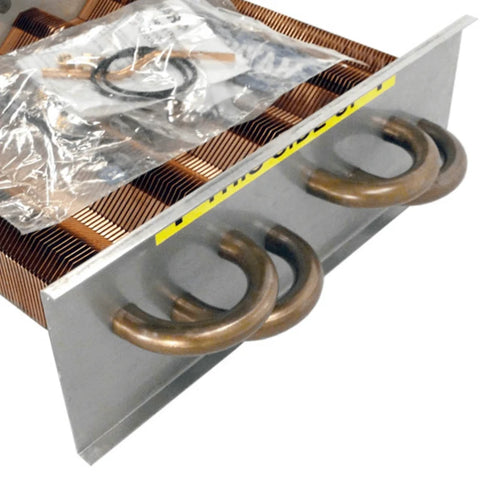

- Complete heat exchanger assembly

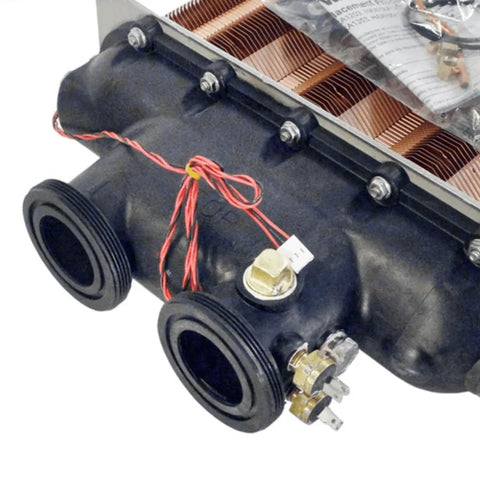

- Complete header assembly included
- Designed to restore proper water containment and heat transfer
- Factory replacement for damaged or leaking exchanger assemblies
- Professional installation recommended
Product Specifications
| Specification | Details |
|---|---|
| Brand | Hayward |
| Manufacturer Part Number | HAXHXA1153 |
| Distributor Product Number | HAY-151-1153 |
| Product Type | Heat Exchanger Assembly |
| Heater Series | Hayward H-Series |
| Compatible Heater Size | H150 |
| Millivolt Compatibility | Yes |
| Electronic ED1 Compatibility | Yes |
| Electronic ED2 Compatibility | Yes |
| Header Assembly | Included |
| OEM Replacement | Yes |
| UPC | 610377810517 |
| Approx. Product Weight | 24 lb |
| Approx. Shipping Dimensions | 24" x 24" x 17.5" |
Important Compatibility Information
The HAXHXA1153 is intended for older H150 H-Series Millivolt, ED1, and ED2 heater configurations.
Do not order this heat exchanger based only on the H150 designation.
The newer Hayward Universal H-Series H150FD heater platform uses a different heat exchanger assembly, commonly identified as FDXLHXA1150.
Before ordering, verify:
- Heater model number
- Existing heat exchanger part number
- Heater generation
- Millivolt, ED1, ED2, or FD configuration
- Heater data plate and serial number
Correct identification is especially important because several Hayward 150,000 BTU heaters have similar model names but use different internal components.
Common Reasons for Replacement
The heat exchanger may require replacement if the heater exhibits:
- Water leaking inside the heater cabinet
- Cracked or damaged exchanger tubes
- Freeze damage
- Internal corrosion
- Severe mineral or scale buildup
- Reduced heat-transfer performance
- Water entering the burner area
- Persistent leaks around the exchanger or header
The cause of the original failure should be diagnosed before installing the replacement assembly. Improper water chemistry, excessive sanitizer levels, freeze conditions, incorrect water flow, and chemical feeders installed incorrectly can shorten heat exchanger life.
Frequently Asked Questions
What heater does HAXHXA1153 fit?
It is designed for compatible Hayward H150 Millivolt, Electronic ED1, and Electronic ED2 H-Series heaters.
Does the header come with the heat exchanger?
Yes. The HAXHXA1153 is supplied as a complete heat exchanger assembly with the header assembly.
Does HAXHXA1153 fit an H150FD heater?
No. The newer H150FD Universal H-Series platform uses a different heat exchanger, commonly FDXLHXA1150.
Is HAXHXA1153 a genuine Hayward part?
Yes. HAXHXA1153 is a genuine Hayward OEM replacement heat exchanger assembly.
Should this be professionally installed?
Yes. Pool heater repair involves gas, electrical, combustion, and plumbing systems. Installation by a qualified pool-heater technician is strongly recommended.
