Product Overview

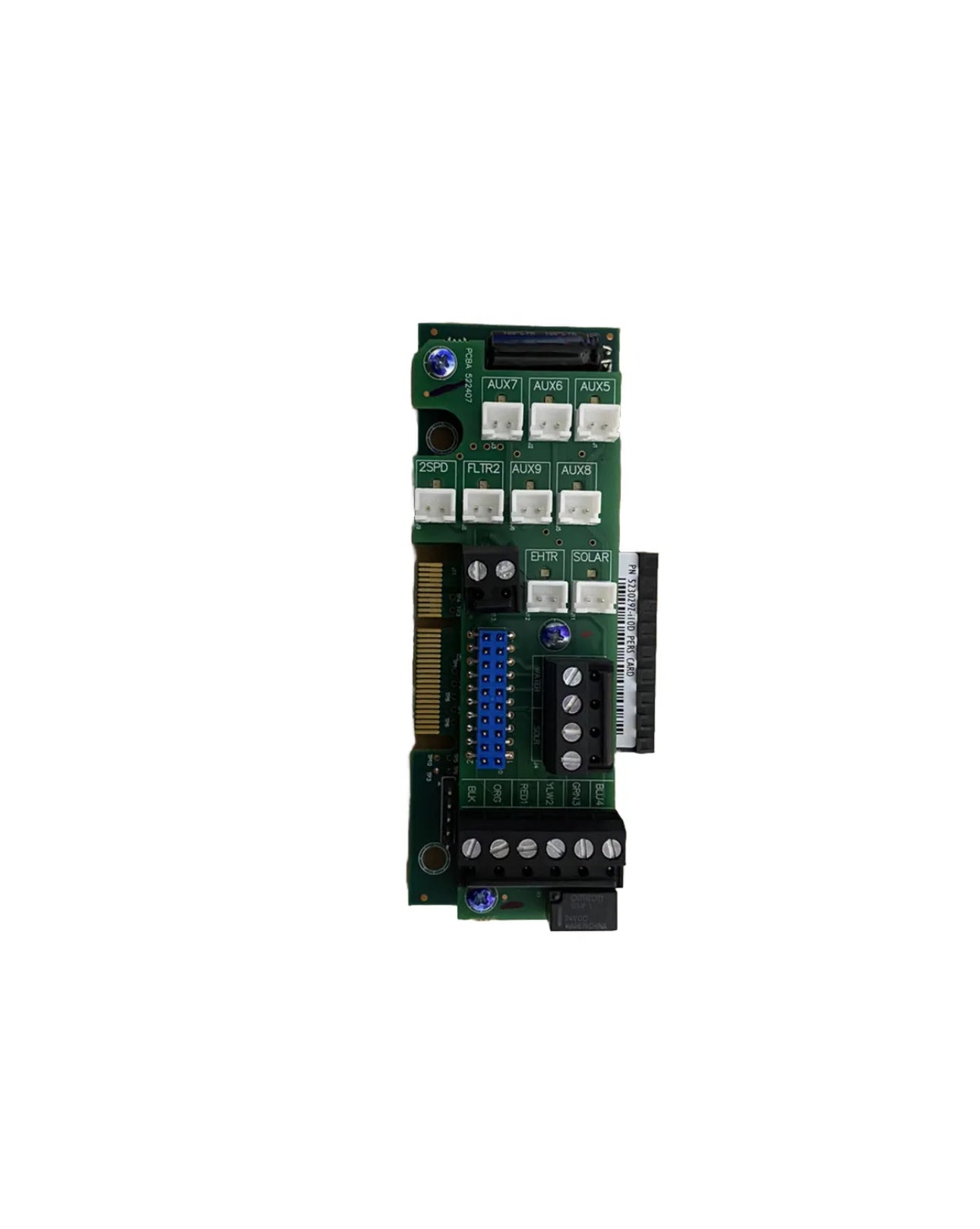

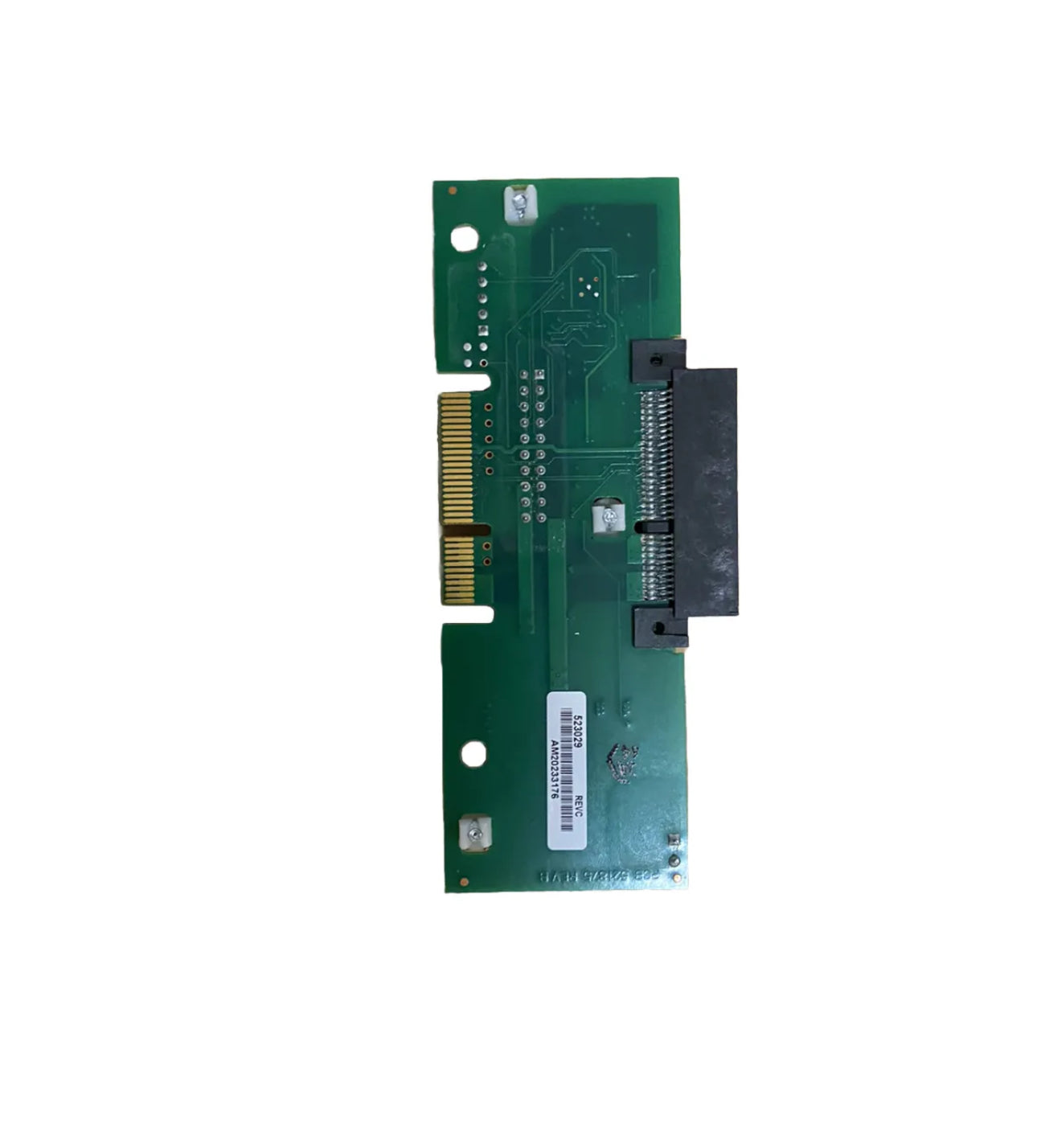

The Pentair IntelliCenter® i10D Expansion Daughter Card, part number 523029Z, is a genuine Pentair personality expansion circuit board designed for compatible IntelliCenter automation systems. This card is commonly used to replace a failed i10D personality card or to upgrade a compatible IntelliCenter i5P main board configuration to support an i10D dual-body pool and spa setup.
The i10D daughter card slide-connects to the compatible IntelliCenter main board and expands the automation system’s configuration capability. It is intended for qualified service professionals performing IntelliCenter repairs, expansions, or system upgrades.
Ideal For
Replacing a failed or damaged IntelliCenter i10D personality / expansion card.
Upgrading a compatible IntelliCenter i5P system to an i10D dual-body configuration.
Pool and spa systems requiring dual-body automation support.
Service professionals repairing Pentair IntelliCenter automation panels.
Customers who need an OEM Pentair circuit board replacement instead of replacing the full automation system.
Key Features
Genuine Pentair Replacement Part
Manufactured by Pentair for compatible IntelliCenter automation systems, helping ensure proper fit, communication, and system compatibility.
i10D Personality Expansion Card
The 523029Z card provides i10D personality functionality for supported IntelliCenter control systems, commonly used for dual-body pool and spa automation configurations.
Slide-Connect Board Design
Designed to slide-connect to the compatible IntelliCenter i5P main board, making it a focused board-level replacement or upgrade component.
Supports Dual-Body Pool and Spa Control
When used in the correct system configuration, this card helps support i10D dual-body operation for pool and spa equipment control.
Replacement or Upgrade Application
Suitable for both repairing an existing IntelliCenter i10D configuration and upgrading a compatible IntelliCenter system where additional personality functionality is required.
OEM Circuit Board Reliability
As a Pentair OEM component, this card is intended to maintain proper system operation when matched with the correct IntelliCenter panel and configuration.
Benefits
Restores IntelliCenter automation functionality when the existing card has failed.
Allows compatible systems to be expanded from i5P to i10D functionality.
Supports more advanced pool and spa automation configurations.
Helps avoid replacing the entire automation control system when only the personality card is needed.
Maintains OEM compatibility within supported Pentair IntelliCenter systems.
Useful for professional service repairs, system upgrades, and equipment pad automation work.
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Product Line | IntelliCenter® |
| Product Type | Expansion Daughter Card / Personality Card / Circuit Board |
| Model / Configuration | i10D |
| Manufacturer Part Number / SKU | 523029Z |
| UPC / Barcode | 788379883775 |
| Application | IntelliCenter automation system replacement or upgrade |
| Compatible System Type | Select Pentair IntelliCenter control systems |
| Board Connection Type | Slide-connects to compatible i5P main board |
| Function | Expands compatible IntelliCenter systems to i10D personality configuration |
| Common Use | Replacement card or upgrade from i5P to i10D dual-body configuration |
| Pool / Spa Support | Dual-body pool and spa automation when used with a compatible system |
| Product Weight | Commonly listed around 1 lb |
| Included Components | One i10D expansion / personality daughter card |
| Complete Automation System | No, circuit board only |
| Installation | Professional installation strongly recommended |
| Manufacturer | Pentair |
Customer-Facing Q&A
What is the Pentair 523029Z used for?
The Pentair 523029Z is an IntelliCenter i10D personality expansion daughter card used for replacement or upgrade applications in compatible Pentair IntelliCenter automation systems.
Does this convert an i5P system to i10D?
Yes, this card is commonly listed as the expansion card that slide-connects to the i5P main board to support i10D configuration, provided the IntelliCenter system is compatible and properly configured.
Is this for pool and spa systems?
Yes. The i10D configuration is commonly used for dual-body pool and spa automation setups.
Is this a complete IntelliCenter automation panel?
No. This is the expansion daughter card / personality circuit board only. It is not a complete load center, automation panel, transformer, relay bank, or full IntelliCenter system.
Can I install this myself?
Professional installation is strongly recommended. IntelliCenter automation systems involve high-voltage pool equipment wiring and sensitive control electronics.
How do I confirm this is the right card?
Match part number 523029Z to the existing card, Pentair parts diagram, or service documentation for the specific IntelliCenter system before ordering.
