Product Overview

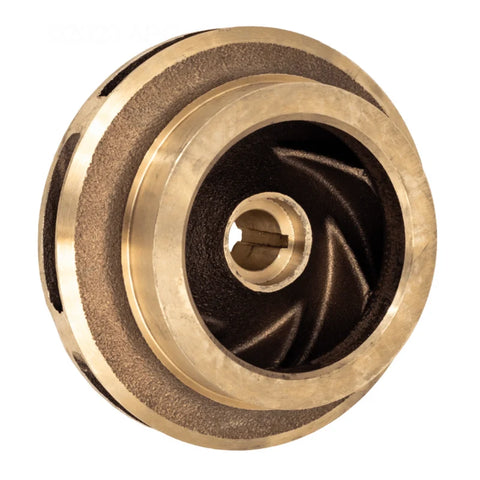

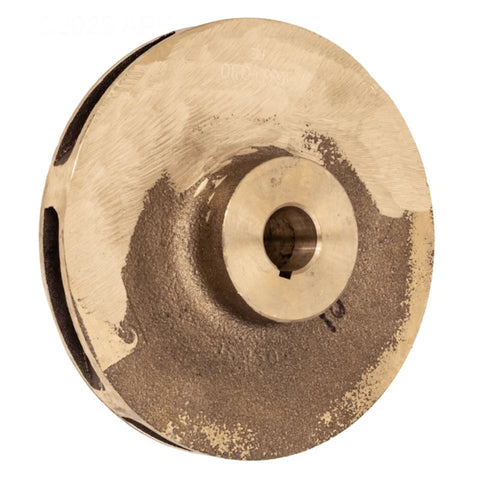

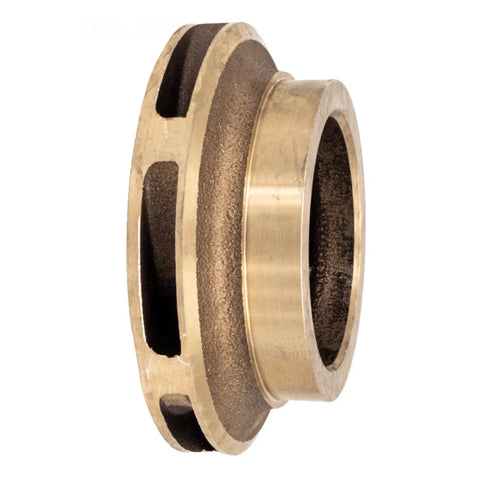

The Pentair Bronze Closed Face Impeller is a genuine OEM replacement component designed for compatible Pentair/Sta-Rite CSPH and CCSPH Series commercial pool pumps. Manufactured from bronze for demanding commercial circulation applications, this impeller is rated for 10 HP applications at 60 Hz and 7.5 HP applications at 50 Hz. It replaces a worn, damaged, or corroded impeller while allowing the remaining compatible pump assembly to stay in service.

Ideal For

• Pentair/Sta-Rite CSPH and CCSPH Series commercial pumps

• Commercial swimming pools, aquatic facilities, and high-flow circulation systems

• Repairing pumps with damaged, eroded, or worn impellers

• Professional commercial-pump rebuilds using OEM components

Key Features

• Genuine Pentair OEM replacement impeller

• Heavy-duty bronze construction for commercial pump applications

• Closed-face impeller design engineered for the compatible pump hydraulic assembly

• Rated for 10 HP at 60 Hz and 7.5 HP at 50 Hz applications

• Designed specifically for compatible CSPH/CCSPH Series pumps

• Individual replacement component eliminates the need to replace an otherwise serviceable complete pump

Benefits

Replacing a worn impeller can help restore the hydraulic performance of a properly functioning commercial pump when the impeller is the source of reduced flow or pressure.

The bronze construction is suited to Pentair's heavy-duty commercial pump platform and maintains the original equipment configuration when replacing the factory component.

Using the correct OEM impeller is especially important on commercial pumps because impeller size must match the pump, motor horsepower, frequency, volute, and operating configuration.

Compatibility

This impeller is designed for compatible Pentair/Sta-Rite CSPH and CCSPH Series commercial pool pumps.

Pentair's current replacement-parts documentation identifies this specific impeller as the 10 HP version within the CSPH/CCSPH pump family. Industry catalog data also identifies its application as 10 HP at 60 Hz and 7.5 HP at 50 Hz.

Do not select an impeller based solely on pump housing appearance or motor frame size. Pentair uses different impellers for 7.5 HP, 10 HP, 15 HP, and 20 HP configurations.

Installation & Replacement Context

Impeller replacement requires disassembly of the commercial pump and inspection of related components such as the shaft sleeve, gaskets, mechanical seal, impeller washer, wear ring, and volute.

Commercial pump service should be performed by a qualified pool-equipment professional familiar with large centrifugal pumps. The motor must be electrically isolated and the circulation system fully depressurized before servicing.

What's Included

• One Pentair bronze closed-face replacement impeller

Shaft seals, gaskets, washers, shaft sleeves, wear rings, hardware, motors, and other pump components are sold separately unless specifically stated otherwise.

Confirm Before Ordering

Verify the complete pump model, motor horsepower, operating frequency, existing impeller part number, and pump configuration before ordering. A 10 HP motor does not automatically confirm compatibility with every CSPH or CCSPH configuration.

Specifications

Customer Q&A

What pumps use this impeller?
It is designed for compatible Pentair/Sta-Rite CSPH and CCSPH Series commercial pumps. Always verify the complete pump model before ordering.

Is this the 10 HP impeller?
Yes. Pentair's current parts catalog identifies this part as the 10 HP impeller. It is also cataloged for 7.5 HP applications operating at 50 Hz.

Is the impeller bronze or plastic?
This version is a bronze closed-face impeller designed for commercial-duty pump applications.

Are the shaft seal and gaskets included?
No. This listing is for the impeller only. Related shaft seals, gaskets, washers, and other service parts should be inspected and ordered separately as needed.
