Product Overview

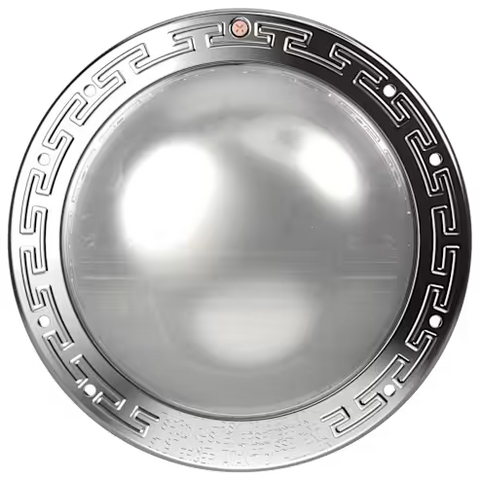

Transform your pool after sunset with the Pentair IntelliBrite Architectural Series MultiColor LED Pool Light. Part number 602151 is a full-size, wet-niche fixture designed to provide vivid colors, smooth light shows, and broad, evenly distributed underwater illumination.

The Architectural Series features refined optics and an improved lens design that spreads light throughout the pool while reducing visible hot spots, glare, stripes, and dark areas. Its RGBW LED technology creates brilliant colors and a cleaner white-light appearance, making it ideal for everyday swimming, backyard entertaining, holidays, and special events.

This model operates on a low-voltage 12V AC circuit, consumes approximately 28 watts, and includes a factory-installed 30-foot cord. A properly rated pool and spa safety transformer is required and sold separately.

Key Features

• Full-size multi-color LED pool light
• Advanced RGBW lighting technology
• Five selectable fixed colors
• Seven programmed color-changing light shows
• Refined optics for broad, even illumination
• Helps reduce glare, hot spots, stripes, and dark areas
• Approximately 60% brighter than its predecessor
• Approximately 50% more energy efficient
• Low-voltage 12V AC operation
• Energy-efficient 28-watt rating
• Factory-installed 30-foot cord
• Stainless-steel face-ring assembly
• Compatible with select Pentair automation systems

Colors and Light Shows

Choose from five fixed colors, including blue, green, magenta, red, and white. Seven preprogrammed light shows provide coordinated color changes for different moods and occasions.

The light can be operated by cycling power with a standard pool-light switch. Enhanced control is available through compatible Pentair lighting controllers and automation systems. Multiple compatible IntelliBrite fixtures can be synchronized when properly wired and configured.

Specifications

Control Compatibility

The 602151 can be operated with a standard light switch, Pentair Color Sync Controller, or compatible Pentair automation system. Supported systems may include IntelliCenter, IntelliTouch, and EasyTouch.

Control compatibility depends on the installed system, software revision, transformer capacity, relay configuration, and wiring arrangement.

Installation Information

This light requires a compatible Pentair underwater fixture housing or wet niche. Confirm the existing niche model, dimensions, pilot-screw position, bonding arrangement, and conduit configuration before ordering.

Installation must be completed by a qualified pool professional or licensed electrician. The installer must provide a properly sized safety transformer, GFCI protection, grounding, bonding, approved junction-box placement, and code-compliant cord routing.

Never connect this 12V fixture directly to a 120V circuit. Do not cut, shorten, replace, or splice the factory-installed underwater cord. If the cord becomes damaged, the complete fixture must be replaced.

Package Contents

• One Pentair IntelliBrite Architectural Series color pool light
• Integrated 28W RGBW LED light engine
• Factory-installed 30-foot cord
• Stainless-steel face-ring assembly

Transformer, niche, controller, automation equipment, junction box, conduit, and installation materials are not included.

Warranty Information

Pentair warranty coverage is subject to its current warranty terms, proof of purchase, approved application, and installation requirements. Damage caused by incorrect voltage, incompatible niches, improper transformer selection, poor bonding, water intrusion, cord modification, or installation errors may not be covered.

Confirm Before Ordering

Verify the required 12V voltage, 30-foot cord length, existing niche model, transformer capacity, face-ring finish, and control-system compatibility before purchasing.
