Product Overview

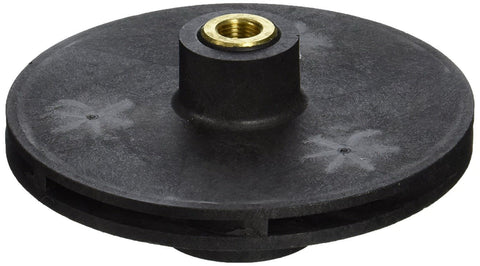

Restore proper hydraulic performance in a compatible Pentair Challenger High Pressure pool or spa pump with the Pentair 355315 replacement impeller. This genuine Pentair component is designed for Challenger pumps rated at 1½ horsepower full-rated or 2 horsepower up-rated.
The impeller is the rotating component that draws water into the pump and directs it through the diffuser toward the discharge plumbing. Damage, wear, mineral buildup, or debris inside the impeller can reduce water flow, increase operating noise, and prevent the pump from priming or circulating water correctly.
Replacing the impeller may restore performance when the existing component is cracked, clogged, worn, or damaged. The motor, shaft seal, diffuser, housing, and other pump components are not included.
Key Features
- Genuine Pentair replacement impeller
- Designed for Challenger High Pressure pumps
- Fits 1½ HP full-rated pump configurations
- Fits 2 HP up-rated pump configurations
- Restores the pump’s original hydraulic configuration
- Helps maintain proper circulation and pressure
- Replaces a cracked, clogged, or worn impeller
- Durable molded construction
- Suitable for compatible pool and spa pumps
- Current service packaging may use part number 355315Z
- Professional pump repair is recommended
- One impeller included
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair |
| Product Series | Challenger High Pressure |
| Manufacturer Part Number | 355315 |
| Current Service Reference | 355315Z |
| SKU | 355315 |
| UPC / Barcode | Not Confirmed |
| Product Type | Replacement Pump Impeller |
| Full-Rated Motor Application | 1½ HP |
| Up-Rated Motor Application | 2 HP |
| Pump Type | High-Pressure Pool and Spa Pump |
| Compatible Diffuser | 355270 |
| Compatible Diffuser Spacer | 355317 |
| Shaft Seal Included | No |
| Package Quantity | One Impeller |
Compatibility
The 355315 impeller is intended for compatible Pentair Challenger High Pressure pump models using a 1½ HP full-rated motor or a 2 HP up-rated motor.
Motor horsepower alone does not guarantee compatibility. The motor service factor and total horsepower must match the pump’s hydraulic components. Installing an oversized impeller can overload the motor, while an undersized impeller may reduce flow and pressure.
Confirm the pump model, motor label, service factor, existing impeller number, diffuser, and diffuser spacer before ordering.
Installation Information
Disconnect power at the circuit breaker and confirm that the pump cannot start before beginning service. Close the appropriate valves and relieve all pressure from the circulation system.
Separate the motor assembly from the pump housing, remove the diffuser, and inspect the impeller for cracks, clogged passages, stripped threads, or heat damage. Hold the motor shaft according to the motor manufacturer’s instructions before removing or installing the impeller.
Replacing the mechanical shaft seal during impeller service is strongly recommended. The compatible Pentair seal is commonly listed as part 354545S. Never touch the polished sealing faces with bare fingers, and do not operate the pump dry.
Inspect the diffuser, diffuser O-ring, seal plate, housing O-ring, and impeller screw before reassembly. Prime the pump fully and check for leaks after restarting the system.
Package Contents
- One Pentair Challenger replacement impeller
The diffuser, diffuser spacer, impeller screw, shaft seal, O-rings, seal plate, motor, pump housing, and installation tools are not included.
Warranty Information
Warranty coverage is subject to Pentair’s current replacement-part terms, proof of purchase, correct application, and proper installation. Damage caused by dry operation, incorrect motor matching, debris, freezing, improper assembly, or installation errors may not be covered.
