Product Overview

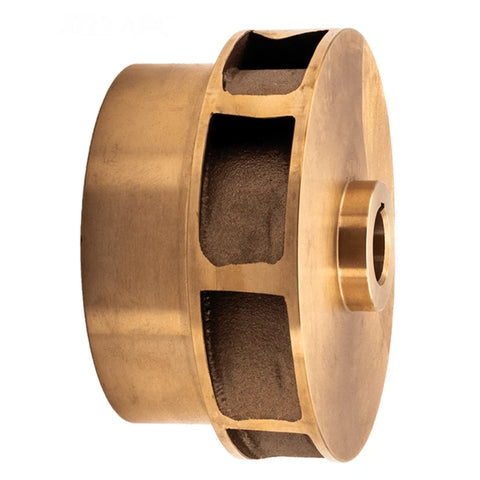

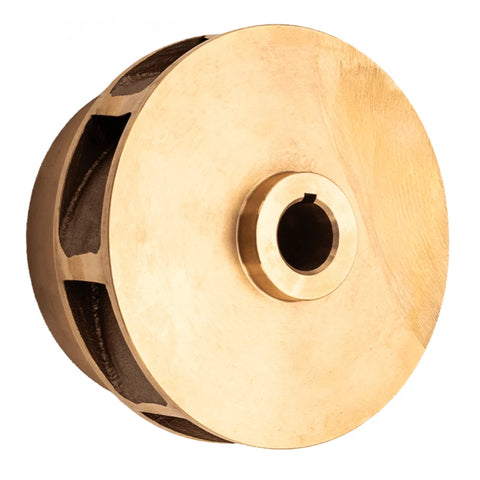

The Pentair High Head C-Series Brass Impeller | 073830 is a genuine OEM replacement impeller designed for select 10 HP Pentair C-Series high-performance commercial pool and spa pumps.
Engineered specifically for high-head applications, the 073830 converts motor power into the hydraulic pressure and flow required for demanding commercial circulation systems.
This heavy-duty impeller features a cast brass/bronze construction and closed-face, 8-vane design, providing excellent durability and hydraulic performance in commercial pool, spa, water-feature, and aquatic-facility applications.
Pentair specifies the 073830 for compatible:
- CH-100 – 10 HP, Single Phase
- CHK-100 – 10 HP, Three Phase
- CHKL-100 – 10 HP, Three Phase
This is the HIGH HEAD impeller. It should not be confused with the 070226 medium-head 10 HP impeller.
Key Features & Benefits
- Genuine Pentair OEM Replacement
- Designed for 10 HP C-Series Pumps
- High-Head Hydraulic Configuration
- Cast Brass / Bronze Construction
- Closed-Face Impeller Design
- 8-Vane Configuration
- 5-3/8" Outside Diameter
- Fits Single- and Three-Phase Applications
- Commercial Pool & Spa Application
- Precision Keyed Shaft Connection
- Designed for Demanding Continuous-Duty Systems
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair |
| Product Series | C-Series |
| Manufacturer Part Number | 073830 |
| Product Type | Pump Impeller |
| Hydraulic Configuration | High Head |
| Motor Horsepower | 10 HP |
| Material | Cast Brass / Bronze |
| Impeller Style | Closed Face |
| Number of Vanes | 8 |
| Outside Diameter | 5-3/8" / 5.375" |
| Overall Front-to-Back Length | Approx. 3-1/8" |
| Motor-End Diameter | Approx. 4-1/2" |
| Keyed Extension Diameter | Approx. 1-5/8" |
| Application | Commercial Pool & Spa Pumps |
| Approx. Product Weight | 4.6 lbs |
| UPC / GTIN | 788379700058 |
| Condition | New Genuine Pentair OEM |
Current distributor specifications confirm the 5.375" outside diameter, 4.6-lb weight, bronze construction, and UPC 788379700058.
Compatible Pentair C-Series Pumps
The 073830 is designed for the following high-head 10 HP C-Series configurations:
CH-100
10 HP – Single Phase – High Head
CHK-100
10 HP – Three Phase – High Head
CHKL-100
10 HP – Three Phase – High Head
Pentair’s current catalog specifically lists 073830 for CH-100 / CHK-100 10 HP high-head applications, with Pentair replacement-parts documentation also identifying the CHKL-100 configuration.
High Head vs. Medium Head
IMPORTANT COMPATIBILITY NOTICE
Pentair uses different impellers for high-head and medium-head C-Series pumps, even when the motor horsepower is the same.
For 10 HP applications:
073830
10 HP High Head
CH-100 / CHK-100 / CHKL-100
070226
10 HP Medium Head
CM-100 / CMK-100 / CMKL-100
These parts should not be selected solely by horsepower.
Before ordering, verify the complete pump model number and hydraulic configuration.
Heavy-Duty Brass Construction
Commercial circulation pumps may operate for extended periods and under demanding flow conditions.
The 073830 uses cast brass/bronze construction, providing:
- High structural strength
- Excellent resistance to mechanical wear
- Long service life
- Stable hydraulic performance
- Suitability for commercial pump applications
This construction is substantially heavier and more durable than the thermoplastic impellers commonly found in smaller residential pool pumps.

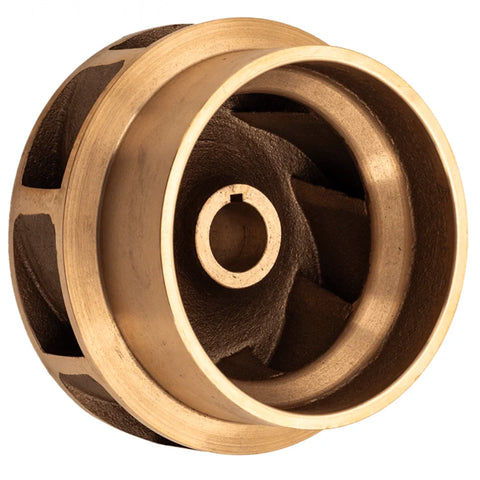

Closed-Face 8-Vane Design
The impeller uses a closed-face design with eight internal vanes.
As the pump motor rotates the impeller, water enters near the center and is accelerated outward through the vane passages.
This action converts motor energy into:
- Water velocity
- Flow
- Discharge pressure
The high-head vane geometry is specifically designed for installations requiring greater system pressure.
Typical Applications
Pentair C-Series pumps are commonly found in:
- Commercial swimming pools
- Hotels and resorts
- Municipal pools
- Schools and universities
- Recreation centers
- Competition pools
- Large spas
- Water features
- Aquatic facilities
- High-flow filtration systems
The 073830 provides the factory hydraulic configuration for compatible 10 HP high-head C-Series pumps.
Installation Guidance
Replacing a commercial pump impeller requires proper pump disassembly and inspection.
During replacement, technicians should also inspect:
- Mechanical shaft seal
- Impeller key
- Impeller lock screw
- Impeller washer
- Washer gasket
- Pump shaft
- Volute
- Pump seals and O-rings
Pentair lists separate associated components including the 071037 impeller lock screw, 071048 impeller washer, and 071046 impeller key within the C-Series assembly.
Professional installation is recommended.
Frequently Asked Questions
What horsepower pump uses Pentair 073830?
It is designed for compatible 10 HP Pentair C-Series high-head pumps.
Which pump models fit 073830?
Compatible models include CH-100, CHK-100, and CHKL-100.
Is this a high-head or medium-head impeller?
High head.
What is the medium-head 10 HP version?
Pentair lists 070226 for compatible 10 HP medium-head C-Series configurations.
What material is the impeller?
It is manufactured from cast brass/bronze.
How large is it?
The outside diameter is approximately 5-3/8 inches.
How many vanes does it have?
The 073830 uses an 8-vane closed-face design.
Will it fit a 7.5 HP C-Series pump?
No. Pentair lists 073829 as the high-head impeller for compatible 7.5 HP CH-75 / CHK-75 / CHKL-75 pumps.
