Product Overview

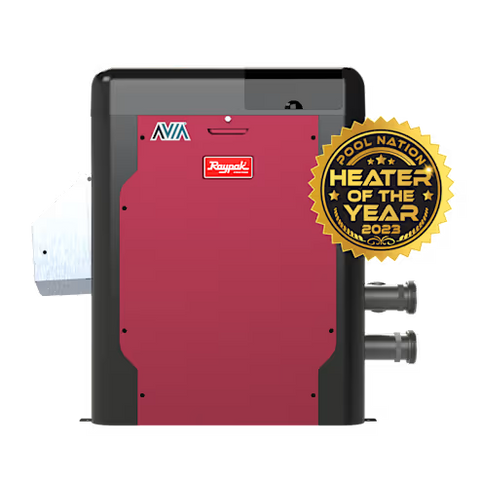

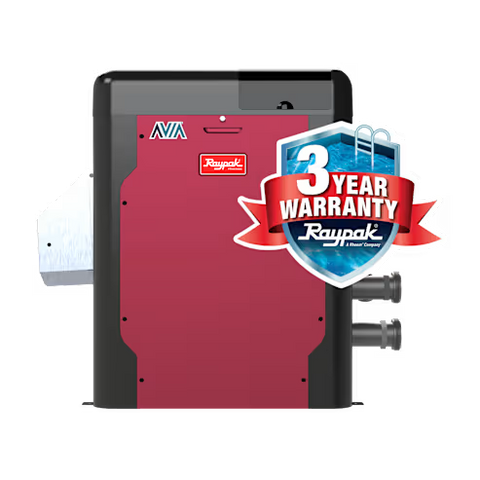

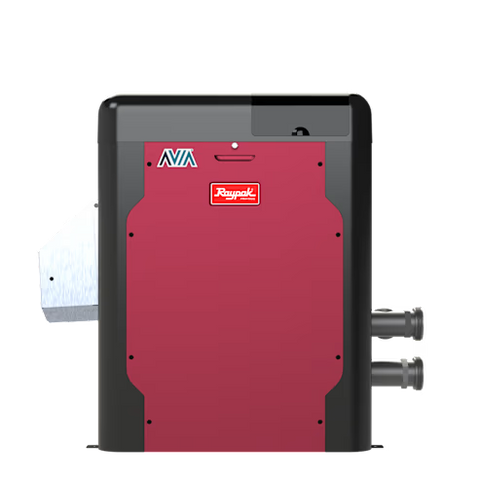

The Raypak AVIA P-R264A-EN-C Pool and Spa Heater 018032 is a compact, smart-enabled natural gas heater designed to provide fast and dependable heating for residential pools and spas. With a rated input of 264,000 BTU, the AVIA combines modern controls, Low NOx combustion, and built-in Wi-Fi capability in a space-saving cabinet.

Through the Raymote™ mobile application, owners can remotely monitor heater operation, adjust water temperature, receive service notifications, and review equipment status from a compatible smartphone. This connected control system eliminates the need for a separate remote heater display in many installations.

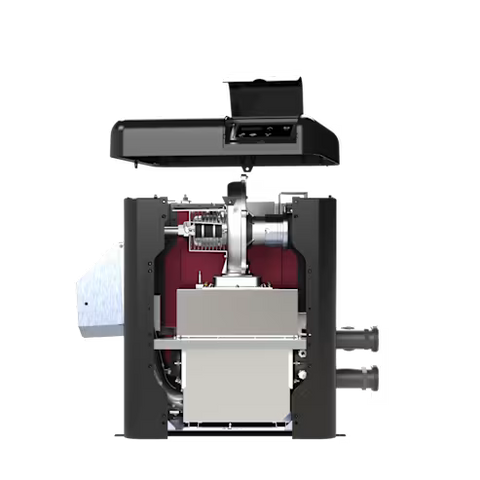

The 018032 model uses natural gas, polymer headers, and a copper-tube heat exchanger. Raypak’s ProTek Shield helps protect the heat exchanger from corrosion caused by electrically charged water and properly maintained saltwater environments. The unit is suitable for pool, spa, or combination pool-and-spa systems when correctly sized and professionally installed.

Key Features

• 264,000 BTU heating capacity
• Natural gas fuel configuration
• Low NOx combustion system
• Built-in Wi-Fi connectivity
• Raymote mobile-app control
• Real-time service and operating notifications
• Copper-tube heat exchanger
• Corrosion-resistant polymer headers
• ProTek Shield heat-exchanger protection
• Digital onboard temperature controls
• Compact equipment-pad footprint
• Electronic ignition
• Compatible with supported pool automation systems
• 120V or 240V electrical operation

Benefits

The AVIA’s connected controls allow pool owners to manage heating without standing at the equipment pad. Temperature changes and system monitoring can be handled through the Raymote app when the heater is connected to a compatible Wi-Fi network.

Its 264,000 BTU output provides quick temperature recovery for many residential pools and spas. The compact cabinet is especially useful for replacement installations or crowded equipment areas where service space is limited.

Polymer headers resist corrosion from treated pool water, while the copper heat exchanger provides efficient heat transfer. The Low NOx burner system reduces regulated nitrogen-oxide emissions and supports installation in areas with stricter air-quality requirements.

Specifications

Raypak identifies the AVIA as a Wi-Fi-enabled heater offering remote temperature control, operating information, and service alerts through the Raymote platform.

Installation Information

Install the heater on a solid, level, non-combustible equipment pad with the clearances and ventilation specified by Raypak. The natural gas line, regulator, and meter must be properly sized to supply the full 264,000 BTU input while other gas appliances are operating.

The heater should normally be installed downstream of the filter and upstream of the salt chlorine generator or chemical feeder. A qualified installer must verify water flow, gas pressure, bonding, grounding, electrical service, and venting requirements.

Professional installation by a licensed gas contractor, electrician, or qualified pool professional is required.

Confirm Before Ordering

Verify the following:

• Your property uses natural gas.
• You require a 264,000 BTU heater.
• The gas meter and supply line can support the heater.
• Your plumbing accepts 2-inch buttress connections.
• A compatible Wi-Fi signal is available for Raymote features.
• The installation meets local Low NOx and venting requirements.
• You require model P-R264A-EN-C, part number 018032.
• Your pool volume and desired heating time are appropriate for this heater size.

Warranty Information

The Raypak AVIA 018032 is covered by the applicable manufacturer’s limited warranty when purchased, installed, registered, and operated according to Raypak requirements. Published retail information commonly identifies a one-year limited warranty, but final coverage depends on current Raypak terms, installation type, and application.

Warranty coverage does not include improper gas sizing, incorrect voltage, restricted water flow, chemical damage, freeze damage, unauthorized repairs, or installation that does not comply with manufacturer instructions and local codes.

Customer Q&A

Does this heater include Wi-Fi control?
Yes. The AVIA platform includes connected controls for compatible Raymote remote monitoring and temperature adjustment.

Is this model natural gas or propane?
The P-R264A-EN-C is configured for natural gas.

Can it heat both a pool and spa?
Yes. It can serve a pool, spa, or combination system when properly plumbed, controlled, and sized.

Is the heat exchanger cupro-nickel?
No. Part number 018032 uses a copper-tube heat exchanger with polymer headers.
