Product Overview

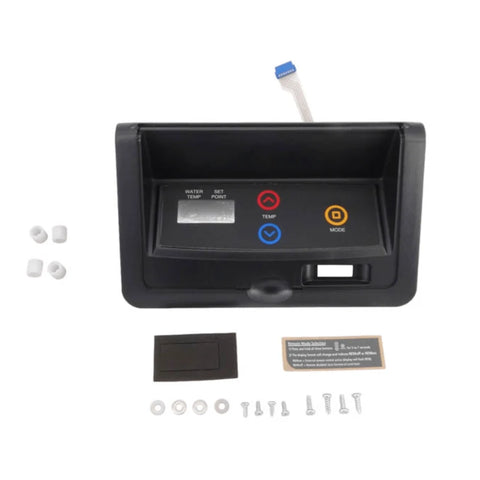

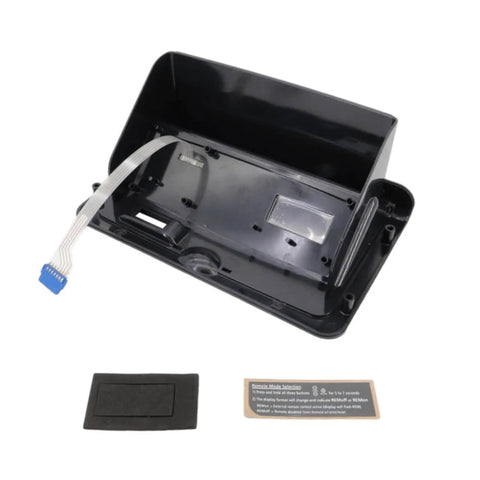

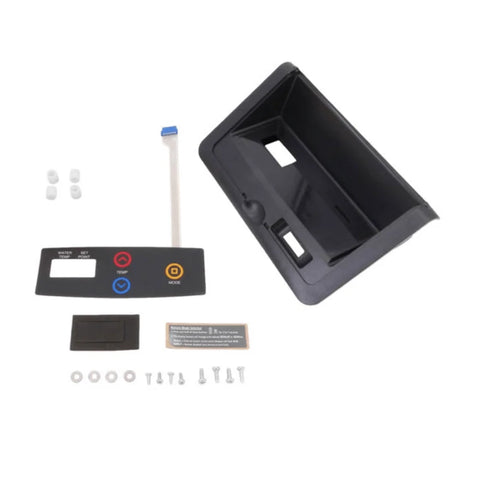

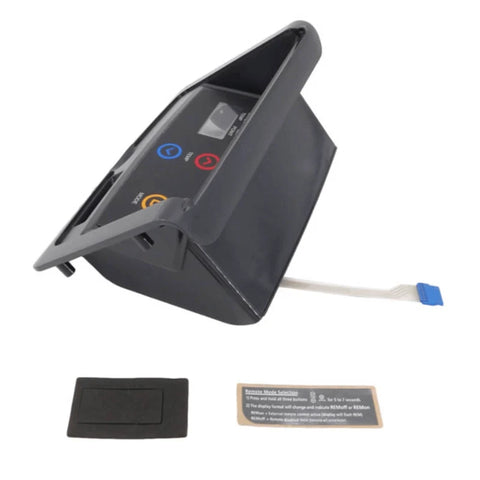

Restore the control face of your compatible pool heater with the Raypak Control Bezel with Switch Decal. This genuine replacement assembly includes the bezel and switch/decal membrane for specified Raypak IID digital heaters. It is a practical repair option when the existing bezel is damaged or the membrane requires replacement. Rather than purchasing unrelated control components, match the failed part to your heater’s illustrated parts list and replace the assembly your technician identifies.
Ideal For
Pool owners replacing a damaged heater interface, service professionals repairing compatible Raypak equipment, and contractors maintaining existing digital pool and spa heaters.
Key Features
- Genuine Raypak replacement component for specified heater models.
- Includes the switch/decal membrane rather than an empty bezel alone.
- Black finish for the replacement control interface.
- Designed for compatible IID digital controls, not millivolt dial controls.
Benefits
Replace a damaged control face while retaining other serviceable heater components. The included membrane renews the button labeling and operating surface. Selecting the correct assembly also helps distinguish a bezel repair from a separate circuit board, display, or protective cover replacement.
Compatibility
Raypak lists this bezel for R185B, R265B, R335B, and R405B IID digital pool heaters. Confirm the complete model designation, serial number, and existing control configuration before ordering. Do not assume every heater with a similar model number uses this assembly. Millivolt versions use a different bezel.
Installation and Upgrade Context
Professional installation is recommended because replacement involves the heater’s control area. Have a qualified technician verify the failed component, isolate power, and follow the applicable manufacturer service instructions. This is a replacement interface assembly, not an automation upgrade.
What’s Included
One Raypak control bezel with switch/decal membrane. The control circuit board, LCD display, and protective bezel cover are separate components and are not included.
Confirm Before Ordering
Compare your existing bezel, button layout, and heater parts diagram. Keep a photograph of the heater identification label available when requesting fitment assistance from Pool Supply Depot.
Package measurements are provided for shipping reference and should not be used to determine installation fit. Prior repairs or control changes may affect part selection. Confirm your existing components, then order the correct Raypak replacement from Pool Supply Depot.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Raypak |
| SKU / Part Number | 009491F |
| Barcode / UPC | 840891011880 |
| Product Type | Control bezel with switch/decal membrane |
| Compatible Models | R185B, R265B, R335B, R405B IID |
| Color | Black |
| Product Weight | 0.75 lb |
| Shipping Dimensions | 10.75 x 5.25 x 4.25 inches |
| Quantity | One assembly |
Customer Q&A
Does this include the control board?
No. This product replaces the bezel and membrane, not the electronic control board or LCD display.
Will it fix an unresponsive heater?
Not necessarily. An unresponsive heater does not by itself confirm a failed bezel or membrane. Have the fault diagnosed before buying replacement parts.
Is the protective cover included?
No. Raypak identifies the protective bezel cover as a separate replacement component.
Will this fit a millivolt heater?
No. This assembly is intended for the listed IID digital configurations. Verify the correct millivolt bezel separately.
