Product Overview

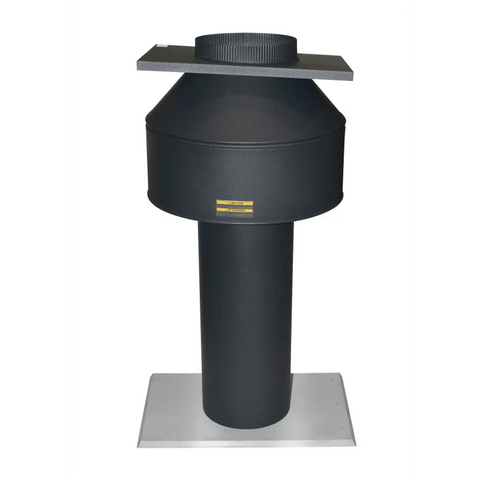

The Raypak 009835 D-13 High Wind Stack Top is a genuine OEM venting accessory designed for compatible Raypak 266A and 267A residential pool and spa heaters. Featuring a 7-inch stack connection, this high-wind top is designed for installations where strong or persistent winds may interfere with normal heater venting.
Raypak lists part 009835 as the D-13 Residential Pool Heater High Wind Top for 266A/267A models. It is also listed for compatible R268 heater configurations. This OEM assembly provides the proper factory-designed venting configuration for applications requiring a high-wind stack top.
Key Features
Genuine Raypak OEM Accessory
Factory-designed Raypak venting component for proper fit and compatibility with designated residential pool and spa heaters.
High-Wind Design
Designed for installations exposed to higher wind conditions where the standard stackless outdoor top may not provide the desired venting performance.
7-Inch Stack Size
Designed around the 7-inch flue diameter used on compatible Raypak 266A and 267A heater models.

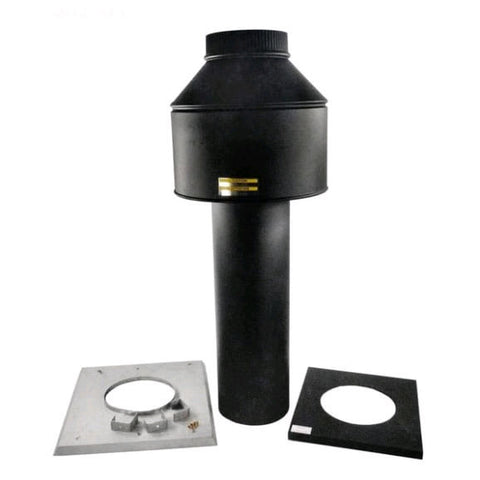

Complete Stack Top Assembly
Includes the stack adapter and outer stack adapter required for the high-wind configuration.
Benefits
- Genuine Raypak factory venting accessory
- Designed specifically for high-wind applications
- Fits compatible Raypak 266A and 267A heaters
- Also compatible with specified R268 configurations
- 7-inch vent connection
- Direct OEM fit for easier professional installation
- Helps maintain proper heater exhaust operation in windy locations
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Raypak |
| Manufacturer Part Number | 009835 |
| Product Type | D-13 High Wind Stack Top |
| Compatible Models | 266A / 267A |
| Additional Compatibility | R268 |
| Stack / Flue Size | 7 in |
| Application | Residential Pool & Spa Heater |
| Includes | Stack Adapter, Outer Stack Adapter |
| OEM / Aftermarket | Genuine Raypak OEM |
| SKU | 009835 |
| Barcode / UPC | 840891018537 |
| Product Weight | Approx. 19.1 lb |
| Raypak Catalog Shipping Weight | 20 lb |
| Shipping Dimensions | Approx. 18.5 x 18 x 35 in |
Installation Information
The 009835 stack top should be installed according to applicable Raypak installation instructions and local venting, gas, and building codes. Pool heater venting directly affects combustion and safe exhaust operation, so installation should be performed by a qualified pool-heater or gas-appliance professional.
Always shut down the heater and follow all applicable service procedures before removing or replacing the existing top assembly.
Confirm Before Ordering
Verify the complete heater model and existing venting configuration before purchasing.

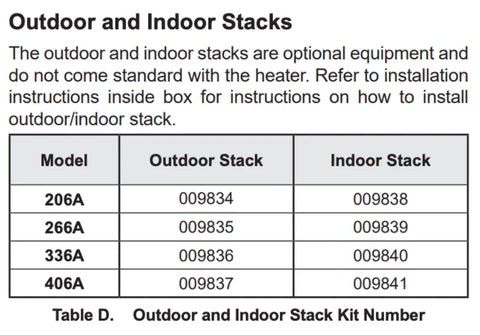

Part 009835 is Raypak’s D-13 High Wind Top for 266A/267A models and should not be confused with Raypak 009839, which is the standard 7-inch indoor drafthood/stack top for these heater sizes.
If you specifically need a conventional indoor venting drafthood rather than the D-13 high-wind assembly, confirm whether 009839 is the appropriate part for your installation.
Warranty Information
This is a genuine Raypak OEM accessory. Warranty coverage is subject to Raypak’s applicable equipment and replacement-part warranty terms. Improper installation, incorrect venting, or use on an incompatible heater may affect warranty eligibility.
Customer Q&A
Q: Is Raypak 009835 an OEM part?
Yes. 009835 is a genuine Raypak D-13 high-wind stack top.
Q: What heater sizes does it fit?
Raypak specifies 009835 for compatible 266A and 267A residential pool heaters. It is also listed for R268 configurations.
Q: What size is the vent connection?
The stack top is designed for the 7-inch flue used with these heater models.
Q: Is this the standard indoor stack top for a 266A?
No. Raypak lists 009835 as the D-13 high-wind top. The standard 7-inch indoor drafthood for 266A/267A models is Raypak part 009839.
Q: How much does the 009835 weigh?
Raypak lists a 20 lb shipping weight. Distributor specifications list the individual product weight at approximately 19.1 lb.
