Product Overview

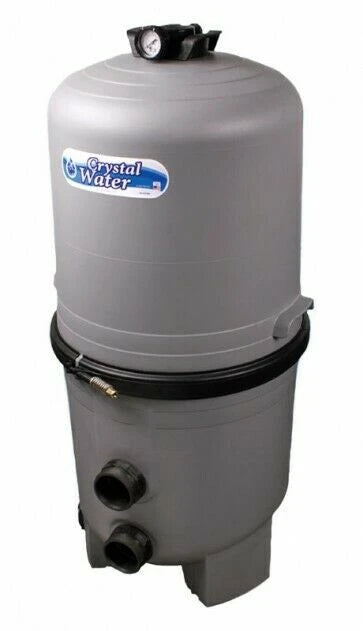

The Waterway Crystal Water 60 sq. ft. D.E. Filter | 570-0060-07 is a high-performance in-ground pool filtration system designed to deliver exceptionally clear water with excellent hydraulic efficiency.

Featuring 60 square feet of effective filtration area, a 120 GPM design flow rate, oversized 2-1/2" internal plumbing, and an easy-removal D.E. grid assembly, the Crystal Water D.E. Filter is built for demanding residential pool applications where superior water clarity and efficient circulation are priorities.

The chemical-resistant, glass-fiber-reinforced polypropylene tank provides strength and durability, while the large internal plumbing helps reduce restriction when paired with modern variable-speed pool pumps.

Key Features

60 Sq. Ft. D.E. Filtration Area

Provides 60 square feet of effective diatomaceous earth filtration for exceptional capture of fine particles and suspended contaminants.

120 GPM Design Flow Rate

Waterway rates the 570-0060-07 for a maximum design flow of 120 gallons per minute.

2-1/2" Internal Plumbing

Oversized internal plumbing helps minimize restriction, improve circulation efficiency, and reduce system noise.

Easy-Out D.E. Grid Pack

The internal grid assembly is designed for easier removal during cleaning and servicing.

Heavy-Duty Tank Construction

Chemical-resistant glass-fiber-reinforced polypropylene construction provides excellent strength and durability in outdoor pool environments.

Commercial-Grade Pressure Gauge

Includes a stainless-steel pressure gauge with Waterway's Start-Service indicator to help determine when filter servicing is required.

Heavy-Duty Air Relief

Equipped with a manual air relief valve for safe release of trapped air during startup and maintenance.

Benefits

• 60 sq. ft. effective filtration area
• 120 GPM design flow rate
• Exceptional D.E. filtration clarity
• 2-1/2" internal plumbing
• Reduced hydraulic restriction
• Easy-out D.E. grid pack
• Fiberglass-reinforced polypropylene tank
• Heavy-duty tamper-resistant clamp
• Stainless-steel pressure gauge
• Manual air relief valve
• Large bottom clean-out port
• Convertible to cartridge filtration by changing internal components
• NSF listed
• Designed for in-ground swimming pools
• Designed, engineered, and manufactured in the USA

Specifications

D.E. Media Requirement

The Waterway Crystal Water 60 sq. ft. filter requires approximately:

7.5 lb of D.E. filter media

D.E. must be added according to Waterway's instructions after initial installation and after the grids have been completely cleaned.

Always use swimming-pool-grade diatomaceous earth intended for D.E. filtration systems.

Valve Information

Backwash valve is sold separately unless specifically included by the seller.

Compatible Waterway valve options include:

• 600-1500 – 2-1/2" Hi-Temp Slide Backwash Valve
• WVD001 – Multiport Valve with 2" FPT Union Connections
• WVD002 – Multiport Valve with 2" Socket Union Connections

Confirm the desired valve style and plumbing configuration before ordering.

Installation Information

The Crystal Water 60 D.E. filter should be installed on a solid, level equipment pad with adequate space for servicing.

Allow approximately:

• 6" minimum side clearance
• 23" minimum clearance above the filter

Correct pump sizing is important. The filtration system should not be operated above the filter's 120 GPM design flow or 50 PSI maximum working pressure.

Professional installation is recommended.

How D.E. Filtration Works

Diatomaceous earth coats the internal filter grids and creates a very fine filtration surface.

As pool water passes through the D.E.-coated grids, extremely small particles are captured before filtered water is returned to the swimming pool.

When filter pressure rises sufficiently above the clean starting pressure, the filter should be serviced according to Waterway's instructions.

Confirm Before Ordering

Verify the following before purchase:

• Waterway part number 570-0060-07
• 60 sq. ft. D.E. filter required
• 120 GPM maximum design flow
• 2-1/2" internal plumbing
• Available equipment-pad space
• Required valve configuration
• Adequate vertical service clearance
• D.E. filtration is permitted for the installation

Do not confuse this filter with the smaller Crystal Water D.E. models:

• 570-0036-07 – 36 sq. ft. / 72 GPM
• 570-0048-07 – 48 sq. ft. / 96 GPM
• 570-0060-07 – 60 sq. ft. / 120 GPM

Warranty Information

Pool360 currently lists the Waterway Crystal Water 60 sq. ft. D.E. Filter with a 2-year warranty, subject to Waterway's current warranty terms, proper installation, operation, maintenance, and applicable exclusions.

Customer Q&A

Q: How many square feet is Waterway 570-0060-07?

It provides 60 square feet of effective D.E. filtration area.

Q: What is the maximum flow rate?

Waterway rates the 60 sq. ft. model at 120 GPM.

Q: How much D.E. does this filter require?

Waterway specifies approximately 7.5 lb of D.E. filter media for the 60 sq. ft. model.

Q: What is the maximum operating pressure?

The maximum working pressure is 50 PSI.

Q: What size pool can it handle?

At 120 GPM, the calculated turnover capacity is approximately:

• 43,200 gallons in 6 hours
• 57,600 gallons in 8 hours

Actual filter sizing should also consider pump flow, plumbing, local regulations, and the specific pool application.

Q: Does the filter include a backwash valve?

The filter itself should be treated as valve sold separately unless the seller specifically bundles one. Waterway offers compatible slide and multiport valve options.

Q: What size plumbing does it use?

The Crystal Water D.E. filter features 2-1/2" internal plumbing and supports compatible Waterway valve configurations with reducers for smaller plumbing where applicable.

Q: Is this an NSF-listed filter?

Yes. Waterway lists the Crystal Water D.E. series as NSF listed.

Q: Can this filter be converted to a cartridge filter?

Yes. Waterway states that the Crystal Water platform can be converted to cartridge filtration by replacing the internal components with the appropriate cartridge internals.
