Product Overview

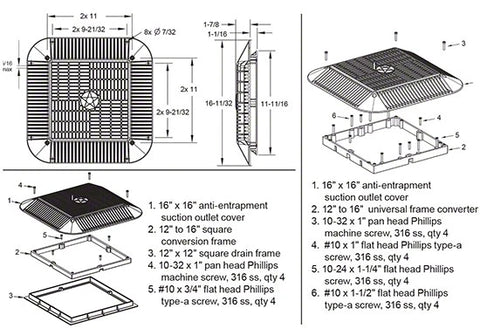

The AquaStar Pool Products 1216101 is a 16-inch square anti-entrapment suction outlet cover designed to retrofit compatible 12-inch square pool drain frames and suction outlets.
Its high-flow design provides 101 square inches of open area while helping protect swimmers against suction entrapment hazards. The cover is manufactured from durable UV-resistant engineered polymer and uses corrosion-resistant 316 stainless steel mounting hardware for dependable submerged service.
The universal retrofit design makes it a practical replacement for many existing 12-inch square drain frames in residential and commercial swimming pool applications.
Key Features
16-Inch Anti-Entrapment Design
Large 16-inch square profile provides high-flow suction coverage while helping reduce entrapment hazards.
12-Inch Square Retrofit Compatibility
Designed to retrofit into most brands' existing 12-inch square mud frames.
High-Flow Configuration
Provides 101 square inches of open area for demanding pool circulation applications.
UV-Resistant Engineered Polymer
Durable polymer construction is designed for long-term submerged exposure to pool water and sunlight.
316 Stainless Steel Hardware
Uses corrosion-resistant stainless steel screws for secure underwater installation.
Benefits
- Anti-entrapment suction outlet design
- Suitable for retrofit and replacement applications
- Fits most compatible 12-inch square frames
- Large 101 sq. in. open area
- Durable UV-resistant polymer construction
- Corrosion-resistant stainless steel hardware
- Suitable for residential and commercial pools
- Can be used in applicable single or multiple suction outlet configurations
- Helps update older suction outlet installations
Specifications
| Specification | Details |
|---|---|
| Brand | AquaStar Pool Products |
| Product Type | Anti-Entrapment Suction Outlet Cover |
| Manufacturer Part Number | 1216101 |
| Cover Size | 16" Square |
| Retrofit Frame Size | 12" Square |
| Color | White |
| Material | UV-Resistant Engineered Polymer |
| Open Area | 101 Sq. In. |
| Floor Flow Rating | Up to 460 GPM |
| Wall Flow Rating | Up to 445 GPM |
| Hardware Material | 316 Stainless Steel |
| Standards | ANSI/APSP/ICC-16 2017, NSF/ANSI/CAN 50 |
| Application | Pool Suction Outlet / Main Drain |
| Replacement Interval | 5 Years from Installation |
| Product Weight | Approximately 5.5 lb |
| SKU | 1216101 |
| Barcode / UPC | 883612031038 |
| Quantity | 1 Suction Outlet Cover Assembly |
Installation Information
Installation must be performed according to AquaStar instructions and all applicable federal, state, local, and facility requirements governing pool suction outlets.
Verify the existing frame, sump configuration, mounting depth, system flow rate, and installation surface before installing the cover.
Only manufacturer-approved components and mounting hardware should be used. Never operate a pool or spa with a missing, loose, cracked, damaged, or improperly secured suction outlet cover.
The suction outlet cover must be replaced within five years of installation, or sooner if damaged.
Confirm Before Ordering
Confirm the existing suction outlet frame dimensions and mounting configuration before ordering.
Part 1216101 is intended for compatible 12-inch square retrofit applications. AquaStar also allows certain retrofit installations over existing sumps or frames up to 15 inches when installed using the appropriate approved anchoring method and hardware.
Flow requirements must be verified for the specific suction outlet configuration. Do not select a suction outlet cover based solely on its physical dimensions.
AquaStar currently identifies this particular product series as discontinued, so availability may be limited to remaining distributor inventory.
Warranty Information
Warranty coverage is subject to current AquaStar terms, installation requirements, application, and proper maintenance. Retain proof of purchase and installation records.
Safety-related suction outlet components should be inspected regularly and replaced immediately if damaged or no longer securely attached.
Customer Q&A
What size drain does the AquaStar 1216101 retrofit?
It is designed primarily for compatible 12-inch square suction outlet and drain frames.
What size is the actual cover?
The anti-entrapment cover is approximately 16 inches square.
What color is part 1216101?
Part 1216101 is the white version.
What is the open area of the cover?
The cover provides approximately 101 square inches of open area.
What are the listed flow ratings?
The listed ratings are up to 460 GPM for floor installations and 445 GPM for wall installations. Actual allowable system flow must be determined based on the complete installation and applicable certification requirements.
How often should the cover be replaced?
AquaStar specifies replacement within five years from the date of installation, or sooner if the cover becomes cracked, damaged, loose, or otherwise compromised.
