Product Overview

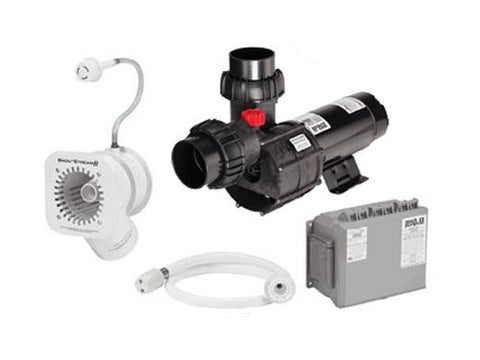

The BaduStream® II SwimJet System SPK-10-3146 is a complete two-jet counter-current swimming system designed to transform a properly constructed swimming pool into a compact swim-in-place, exercise, and aquatic-therapy environment.

Powered by a 4 HP single-phase SPECK pump, the system delivers a strong, adjustable current through two independently mounted BaduStream II jet housings. This configuration is ideal for swimmers who want continuous resistance training without requiring the length of a traditional lap pool.

Each jet installs flush against the pool wall and uses a square anti-entrapment cover for a clean, low-profile appearance. Adjustable nozzles allow the water direction and intensity to be customized, while air regulators introduce bubbles into the water stream for additional resistance and a massage-style effect.

The system is intended primarily for new pool construction or major renovations because the jet housings, suction plumbing, return plumbing, electrical controls, and pump must be incorporated into the pool design. Professional hydraulic and electrical planning is required.

Key Features

• Complete BaduStream II counter-current system
• Two independently mounted swim jets
• Powerful 4 HP single-phase pump
• Operates on 208–230V electrical service
• Produces up to approximately 400 GPM
• Adjustable water-flow nozzles
• Adjustable air regulators
• Square flush-mounted anti-entrapment covers
• Low-profile design with no large protruding housing
• LED touch-button control with 50-foot cable
• SPECK controller with GFCI protection
• Suitable for exercise, therapy, and recreational swimming
• Designed for compatible gunite, fiberglass, vinyl-liner, and steel-wall pools

Benefits

The two-jet layout creates a broad swimming current that can be adjusted for different users and activities. It can support stationary swimming, resistance exercise, jogging, water walking, rehabilitation, and general aquatic fitness.

Because each jet is installed in its own housing, pool builders have greater flexibility when determining jet spacing and wall placement. The flush-mounted design also maintains a cleaner pool-wall appearance and avoids large projecting fittings in the swimming area.

The dedicated 4 HP pump provides the high water volume required for a consistent counter-current. The separate LED touch control allows the system to be activated from the pool area without accessing the equipment pad.

Specifications

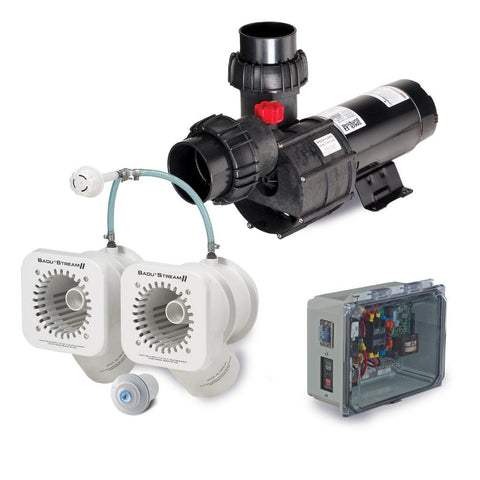

Included Components

• Two BaduStream II flush-mounted jet housings
• Two adjustable flow nozzles
• Two square anti-entrapment covers
• Adjustable air-control components
• One 4 HP single-phase SPECK pump
• SPECK control system with GFCI protection
• LED touch button with 50-foot cable
• Required system components supplied with the selected package

Exact fittings and job-site plumbing materials should be confirmed before installation.

Installation Information

The swim jets must be positioned in a clear pool area that allows the user to swim safely against the current. SPECK recommends an unobstructed swimming envelope of approximately 8 feet wide, 15 feet long, and 3 feet deep for effective use.

The pump and jet plumbing require large-diameter suction and return lines. The manufacturer’s planning guide specifies that certain BaduStream packages require 4-inch or 6-inch plumbing. Required check valves must be installed on the pump discharge side.

The pump should be mounted on a stable equipment pad with adequate drainage and ventilation. Electrical installation requires compatible 208–230V single-phase service, proper circuit protection, bonding, grounding, and compliance with applicable codes.

Installation must be completed by an experienced pool builder and licensed electrician.

Confirm Before Ordering

Verify the following:

• You need the two-jet square-cover configuration.
• Your electrical service supports a 4 HP, 208–230V single-phase pump.
• The pool design can accommodate the required large-diameter plumbing.
• The equipment area has sufficient space for the pump and controller.
• The swimming area meets the recommended clearance requirements.
• Your pool builder has reviewed the current SPECK planning guide.
• The system is being installed during construction or a suitable major renovation.

Warranty Information

The BaduStream II system is covered by the applicable SPECK Pumps limited manufacturer warranty when installed and operated according to manufacturer requirements.

Warranty coverage does not include improper hydraulic design, incorrect wiring, dry operation, restricted plumbing, freeze damage, chemical damage, unauthorized modification, or installation that does not comply with applicable building and electrical codes.

Customer Q&A

Does this include two swim jets?
Yes. SPK-10-3146 includes a two-jet BaduStream II configuration with square covers.

What is the manufacturer’s part number?
The manufacturer’s part number is SS484-2400M-1SW.

Can this be added to an existing pool?
It may be added during a major renovation, but installation requires structural work, large plumbing lines, electrical service, and professional design.

Is this a complete lap-pool replacement?
It creates a stationary swimming current for exercise and training, but the experience depends on swimmer ability, jet placement, pool dimensions, and selected current strength.
