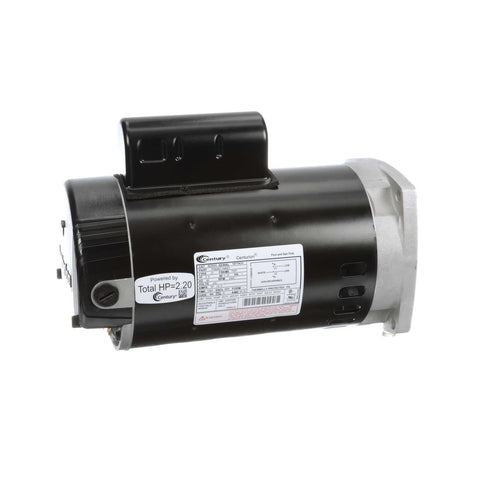

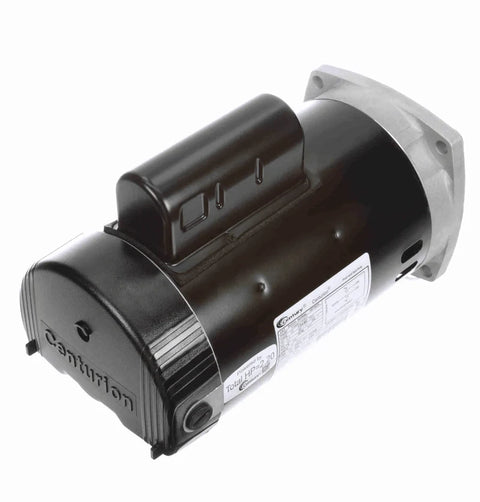

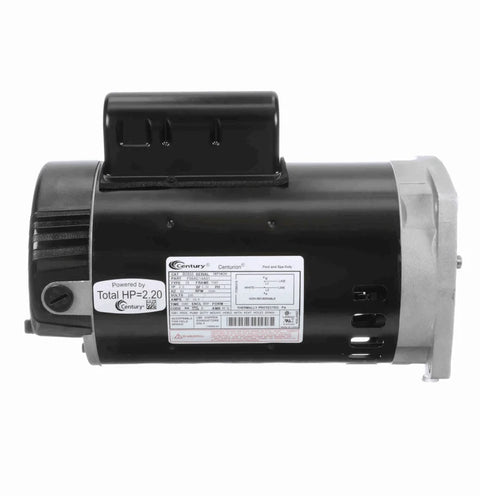

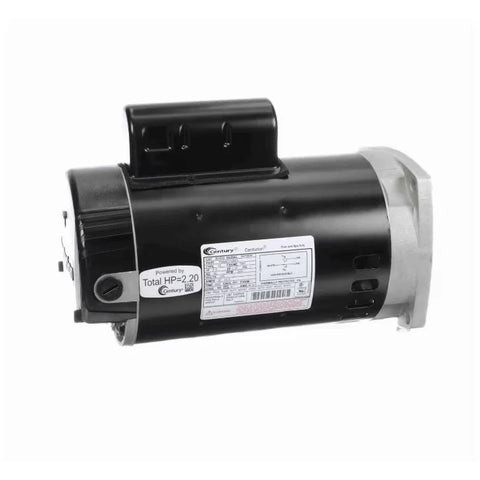

Restore reliable performance to your swimming pool pump with the Century B2855 2 HP Pool and Spa Pump Motor. Designed specifically for pool and spa circulation applications, the B2855 combines dependable single-speed operation, durable construction, and the industry-standard 56Y square-flange mounting configuration found on many popular in-ground pool pumps.
The Century B2855 operates at 3450 RPM and is rated for 2 HP with a 1.10 service factor, providing approximately 2.20 Total Horsepower (THP). Its 230V, single-phase electrical configuration makes it a popular replacement option for residential and commercial pool pumps requiring a high-performance square-flange motor.
Built for the demanding environment surrounding swimming pool equipment, the B2855 features a corrosion-resistant stainless-steel threaded shaft, sealed ball bearings, automatic thermal protection, and an open-drip-proof enclosure.
Key Features
- 2 HP pool and spa pump motor
- 2.20 Total Horsepower (THP)
- Single-speed operation
- 3450 RPM
- 230V operation
- Single-phase motor
- 60 Hz frequency
- 56Y square-flange frame
- 1.10 service factor
- 10.0 amp rating
- Permanent Split Capacitor (PSC) motor design
- Threaded stainless-steel shaft
- Automatic thermal overload protection
- Ball-bearing construction
- Open Drip Proof (ODP) enclosure
- Continuous-duty design
- Designed specifically for pool and spa pump applications
- UL recognized and CSA certified
Product Specifications
| Specification | Details |
|---|---|
| Brand | Century |
| Manufacturer Part Number | B2855 |
| Product Type | Pool & Spa Pump Motor |
| Horsepower | 2 HP |
| Total Horsepower | 2.20 THP |
| Service Factor | 1.10 |
| Speed | Single Speed |
| RPM | 3450 RPM |
| Voltage | 230V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Amperage | 10.0A |
| Frame | 56Y |
| Flange Style | Square Flange |
| Motor Design | Permanent Split Capacitor |
| Enclosure | Open Drip Proof |
| Shaft Diameter | 5/8" |
| Shaft Type | Threaded Stainless Steel |
| Thermal Protection | Automatic |
| Bearings | Ball Bearings |
| Duty | Continuous |
| Insulation Class | Class B |
| Maximum Ambient Temperature | 50°C / 122°F |
| Rotation | Counterclockwise, Pump End |
| UPC | 786674076649 |
56Y Square-Flange Design
The 56Y square-flange frame is commonly used on high-performance in-ground swimming pool pumps. The square mounting flange attaches directly to the pump's seal plate, while the threaded motor shaft connects to the pump impeller.
When replacing an existing pump motor, do not select a replacement based on horsepower alone. Verify the original motor's:
- Horsepower
- Service factor or total horsepower
- Voltage
- Frame size
- Flange style
- Shaft configuration
- Pump model
Matching Total Horsepower (HP × Service Factor) is particularly important when selecting a replacement motor.
Built for Pool & Spa Applications
The Century B2855 is engineered specifically for the operating conditions encountered in pool and spa equipment installations. Its stainless-steel shaft provides increased corrosion resistance, while sealed ball bearings support smooth and dependable operation.
Automatic thermal protection helps protect the motor if operating temperatures rise beyond acceptable limits. The motor is also rated for continuous-duty applications and a maximum ambient temperature of approximately 122°F / 50°C.
Important Installation Notice – Replace the Shaft Seal
A new mechanical shaft seal should be installed whenever a pool pump motor is replaced.
Do not reuse the existing shaft seal. An old or damaged mechanical seal can allow pool water to leak along the motor shaft and into the new motor, potentially causing bearing damage, corrosion, or premature motor failure.
The correct shaft seal depends on the specific pump model, not the motor model.
We recommend identifying your pump manufacturer and model before ordering the appropriate seal or complete go-kit.
Important California & New York Notice
This is a 2 HP single-speed pool pump motor and may be restricted from sale or installation in California and New York due to applicable pool pump energy-efficiency regulations.
Customers should verify applicable state and local requirements before ordering or installing this motor. A compliant variable-speed replacement may be required in certain jurisdictions.
Replacement Motor Notice
The Century B2855 is the motor only.
Pump housing, seal plate, diffuser, impeller, mechanical shaft seal, gaskets, O-rings, wiring, and other pump components are not included unless specifically stated otherwise.
Always verify your existing pump and motor specifications before ordering.
Why Choose Century?
Century is one of the most recognized manufacturers of replacement electric motors for the swimming pool and spa industry. Century pool pump motors are used by homeowners, service professionals, and pool equipment technicians when replacing failed motors without replacing the complete pump assembly.
The Century B2855 2 HP 56Y Square-Flange Pool Pump Motor is an excellent replacement solution for compatible 230V pool pumps requiring a reliable 2 HP, single-speed motor.
