Product Overview

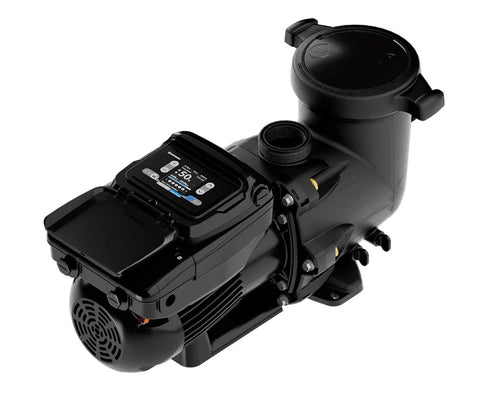

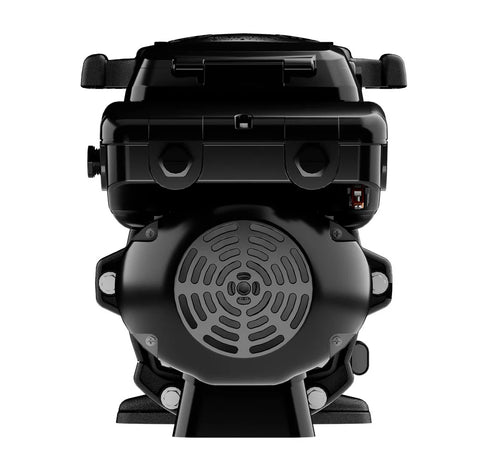

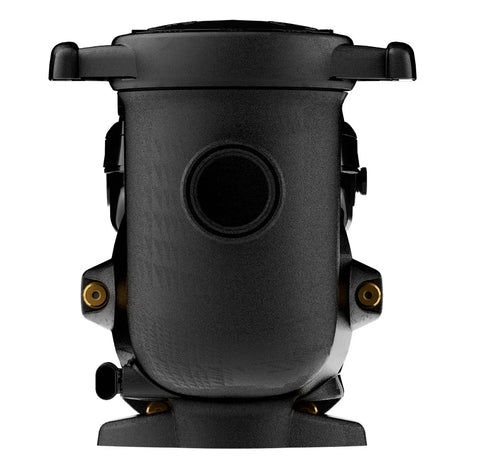

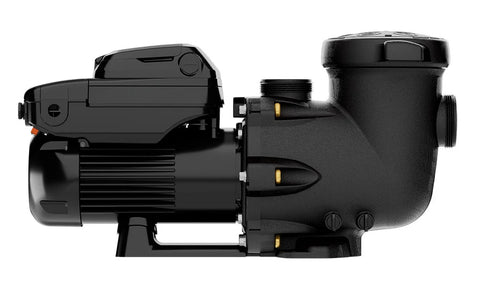

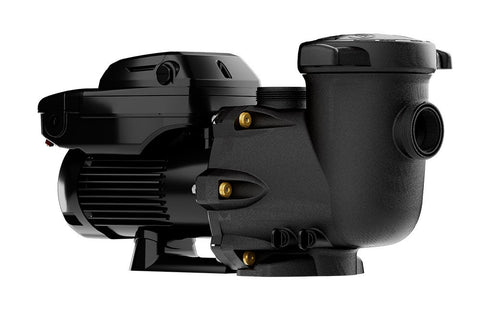

Deliver efficient, programmable circulation for demanding pool applications with the Hayward HCP 2500 Series TriStar® VS Commercial Variable-Speed Pump | HCP2500VSP. Built around Hayward's proven TriStar hydraulic platform, this 2.70 Total HP variable-speed pump combines advanced hydraulics with a totally enclosed permanent-magnet motor to provide powerful water movement while reducing energy consumption compared with operating a conventional pump continuously at full speed.
The HCP2500VSP is designed for commercial, semi-commercial, and high-demand residential pool and spa circulation systems. Its variable-speed technology allows the pump to operate at the exact speed required for filtration, heating, water features, sanitization, or other circulation functions.
An integrated digital control interface includes a self-contained 24-hour clock and up to eight programmable speed and timer functions. The controller can be positioned in multiple orientations directly on the pump or remotely wall-mounted for easier access.
Key Features
- Genuine Hayward HCP 2500 Series
- Manufacturer Part Number: HCP2500VSP
- TriStar® VS C variable-speed design
- 2.70 Total HP
- Single-phase electrical configuration
- Compatible with 115V or 230V installations when wired according to the pump nameplate
- 60 Hz
- Energy-efficient permanent-magnet motor
- Totally enclosed motor construction
- Advanced TriStar hydraulic design
- Programmable 24-hour clock
- Up to 8 custom speed and timer functions
- Digital control interface
- Control interface can be remotely wall mounted
- Compatible with supported Hayward automation
- Can interface with compatible third-party controls
- Large ribless strainer basket
- Tri-Lock strainer cover
- 2" x 2-1/2" union connections
- Self-priming design
- Built-in high-temperature and voltage protection
- NSF/ANSI Standard 50 certified
- Designed for indoor or outdoor equipment installations
Product Specifications
| Specification | Details |
|---|---|
| Brand | Hayward |
| Series | HCP 2500 / TriStar VS C |
| Part Number | HCP2500VSP |
| Pump Type | Variable Speed |
| Total Horsepower | 2.70 THP |
| Phase | Single Phase |
| Voltage | 115V / 230V |
| Frequency | 60 Hz |
| Motor Type | Permanent Magnet / Totally Enclosed |
| Union Connections | 2" x 2-1/2" |
| Timer Programs | Up to 8 |
| Strainer Basket | Extra-Large Ribless |
| Self-Priming | Yes |
| Certification | NSF/ANSI Standard 50 |
| Approx. Shipping Weight | 63 lb |
| Approx. Shipping Size | 30.1" x 13.6" x 16" |
Advanced Variable-Speed Operation
One of the greatest advantages of the HCP2500VSP is the ability to reduce motor speed during lower-demand circulation periods.
Pump energy consumption decreases significantly as operating speed is reduced, allowing facilities to optimize circulation schedules for applications such as:
- Daily filtration
- Pool heating
- Chemical treatment
- Water features
- Cleaning systems
- Nighttime circulation
- High-demand turnover periods
This flexibility can provide meaningful operating-cost savings compared with running a traditional single-speed pump at maximum output throughout the day.
Automation Compatibility
The HCP2500VSP can operate as a fully programmable stand-alone pump or integrate with supported Hayward automation platforms, including compatible OmniLogic®, ProLogic®, AquaPlus®, OmniPL®, OmniHub®, OnCommand®, and E-Command® systems.
Compatible third-party automation can also control pump speeds through the appropriate relay or communication configuration.
Large Strainer Basket & Easy Service Access
Hayward's extra-large ribless strainer basket increases debris-holding capacity and makes basket cleaning easier. The Tri-Lock strainer cover requires less than a quarter-turn to open or secure, helping simplify routine commercial maintenance.
Frequently Asked Questions
What horsepower is HCP2500VSP?
The pump is rated at 2.70 Total HP.
Is HCP2500VSP variable speed?
Yes. It is a fully programmable variable-speed pump with up to eight custom speed and timer functions.
Does it operate on 115V or 230V?
The 2.70 THP pump family supports 115VAC and 230VAC electrical installations. Always verify the pump nameplate and follow Hayward's electrical instructions before installation.
What plumbing connections does it use?
The HCP2500VSP uses 2" x 2-1/2" union connections.
Can it connect to pool automation?
Yes. It can communicate with compatible Hayward automation systems and can also be operated by supported third-party control systems.
Is professional installation recommended?
Yes. Commercial pump plumbing, electrical wiring, grounding, bonding, and system sizing should be completed by a qualified pool or electrical professional.
